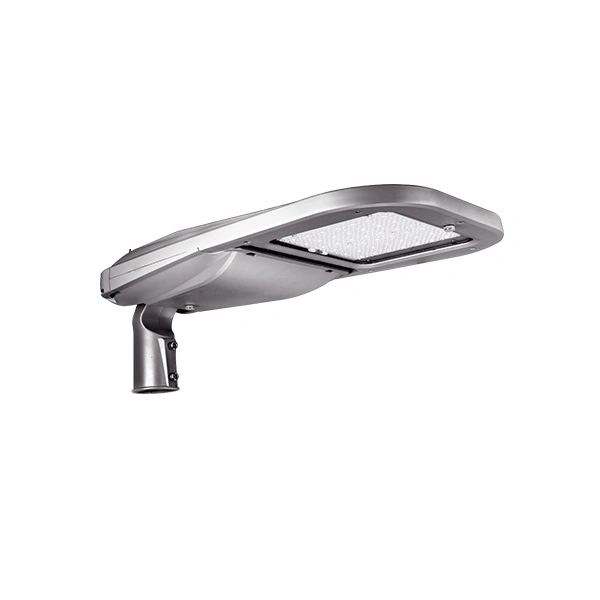

200W exterior lighting area light parking lot light with photocell
| Nominal Power | 25W | 35W | 55W | 60W | 90W | 120W | 120W | 150W | 180W | 200W | |
| LED Qty. | 48 pcs | 72 pcs | 96 pcs | 96 pcs | 144 pcs | 192 pcs | 192 pcs | 240 pcs | 288 pcs | 336 pcs | |
| Lumen Output | 2875 lm | 4025 lm | 6325 lm | 7500 lm | 11250 lm | 15000 lm | 15000 lm | 18750 lm | 22500 lm | 25000 lm | |
| Luminaire Efficacy |
115 lm /w | 115 lm /w | 115 lm /w | 125 lm /w | 125 lm /w | 125 lm /w | 125 lm /w | 125 lm /w | 125 lm /w | 125 lm /w | |
| Input Voltage | 100-240V /277VAC 50 /60Hz | ||||||||||
| LED Brand | Lumileds 3030 2D | ||||||||||
| Driver Brand | Non-dimmable: MeanWell HLG Driver | Dimmable: Inventronics Driver | ||||||||||
| Light Distributions | TypeI, Medium; TypeII, Medium; TypeIII, Medium | ||||||||||
| Color Temperature | 3000K, 4000K, 5000K, 5700K | ||||||||||
| Surge Protection Device(SPD) | 10KV | ||||||||||
| Working Environment |
-40 ºC ~ +50 ºC, 10%~90%RH | ||||||||||
| Storage Temperature | -40 ºC ~ +50 ºC | ||||||||||
| Rating | Class I, IP66, IK08 | ||||||||||
| CRI | > 70 | ||||||||||
| Power Factor | > 0.95 | ||||||||||
| Power Efficiency | > 90% | ||||||||||
| Material | Housing: Die-cast aluminum; Lens: Tempered glass and PC | ||||||||||
| Lifetime(h) | >100,000(L70) | >100,000(L70) | >100,000(L70) | ||||||||

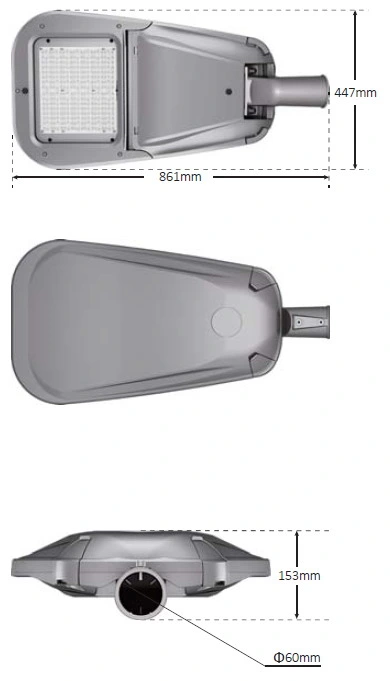

| Fixture Info. | 614*224*135mm, 5.8 / 5.9 / 6.0 kg | 726*357*127 mm, 7.8 / 8.1 / 8.2 kg | 861*447*153 mm, 12.0 / 12.0 / 12.1 / 12.2 kg | ||||||||
| Packing Info. | 675*290*220 mm, 7.3 / 7.4 / 7.5 kg | 785*415*200 mm, 9.8 /10.1 / 10.2 kg | 915*495*225 mm, 14.5 / 14.5 / 14.6 / 14.7 kg | ||||||||
Product advantages:

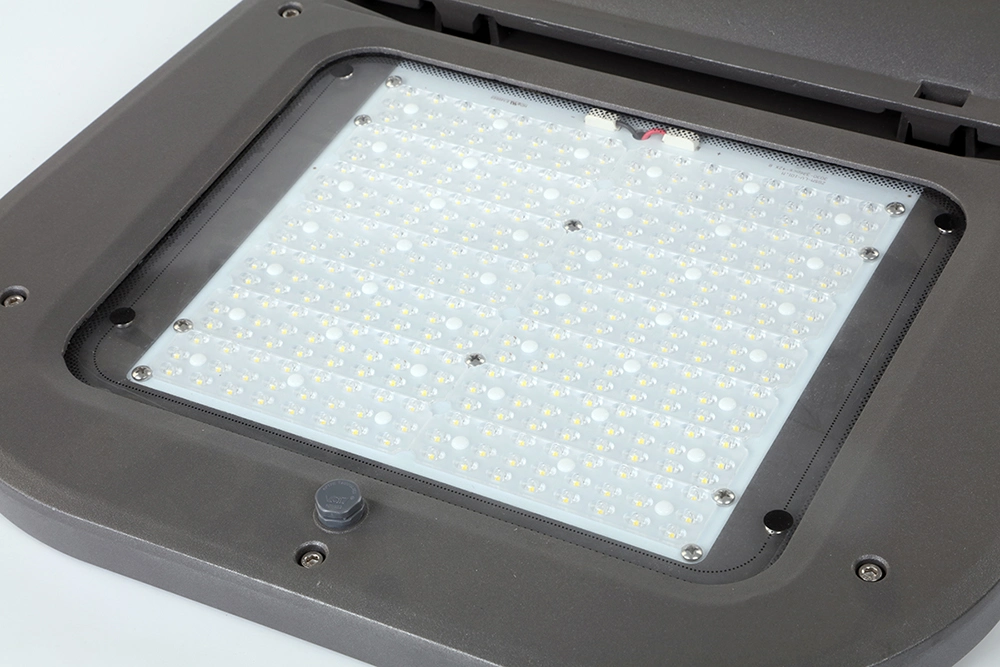

1. Lumileds 3030 Chips. or 5050 led.
2. Meanwell HLG Driver and Inventronics driver for 0-5V, 0-10V, PWM, Timer dimming.
3. Tempered Glass lens.
5. Competitive price.
6. 5 years warranty.
7. IP66 and IK08.

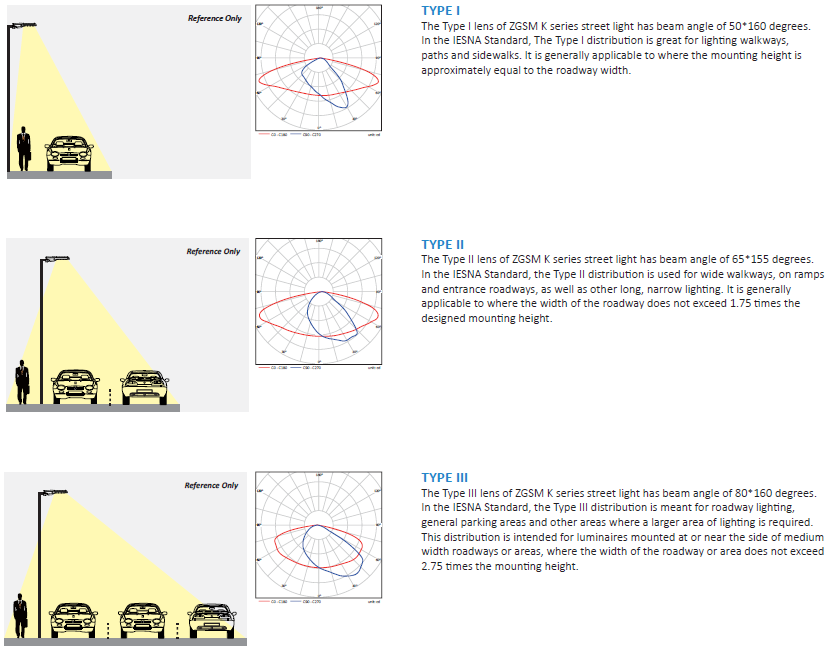

8. Type I, Type II, Type III optics for different width road lighting.
9. With Surge Projector to protect lamp from up to 10KV/10KA.
10. With Power Turn Off Protector to protect the personal safety.
11. With Imported Breather to keep the air pressure balance inside and outside the lamp, improving work performance, life of the lamp and prevent burst.
12. Big recessed structure design can be installed the MPPT remote control controller and wireless module to be a intelligent control system.
13. Full die-cast aluminum housing to prevent guano.
14. Snap-in type, easy installation by snap locking the two ends together, do not need tools to open or close the light cap.
