specification:
1.Light source:high power LED 6x3W RGB3in1 color;(6x1W/3w single color ;6*1W/3W RGB are availble);
2.Tricolor LED(multicolor);
3.Input Voltage:24VDC;
4.Product Size:¢160mm*H32mm;
5.Beam angle: 25/30/45/60 degrees;
6.IP68,CE certificated;
7.Manner of packing:1pc/inner box,6pcs/CTN,CTN size:44x34x10cm / G.W:9kgs .



Ultrathin RGB LED swimming pool lights,IP68 ingroung RGB LED light,ultrathin RGB LED underwater light,ultrathin LED pool light,RGB LED yacht lighting
technical parameter:
1.Housing: 304#(316# is available) stainless steel;
2.Front cover:304#(316# is available) stainless steel;
3.Glass: Tempered Glass T=8mm;
4.Lens:Optional lens, Efficiency ≥ 85%;
5.Waterproof Cable gland:IP68,PG-11 Copper and nickel coated,End-cap and housing are silicone sealed;
6.MPCB: Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0W/mk;
7.waterproof seal:glass and housing are silicone sealed;
8.Operating temperature:-10~+40centigrade
IP68 18W RGB LED buried light,stainless steel RGB LED boat light,ultrathin LED swimming pool light,face mounted underwater RGB LED lighting
Product | Light Source | Suitable lens Angle(o ) | Input Vol. |
94261 | 6x1W | 8/15/25/30/45/60 | 24VDC |
94262 | 6x3W | 8/15/25/30/45/60 | 24VDC |
94263 | 6x1W RGB | 8/15/25/30/45/60 | 12/24VDC |
94264 | 6x3W RGB | 8/15/25/30/45/60 | 12/24VDC |
94266 | 6x3W RGB3in1 | 8/15/25/30/45/60 | 24VDC |

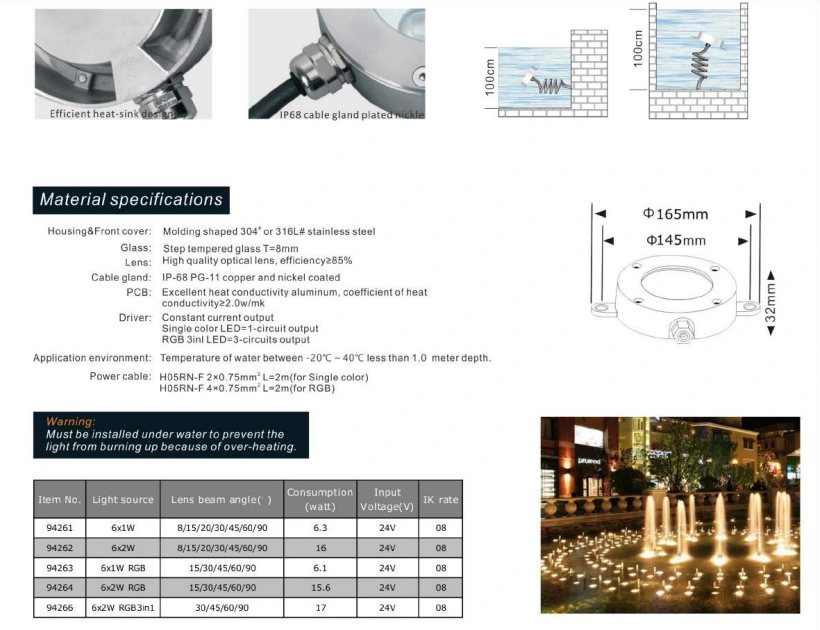

Installation manual&line drawing(unit :mm):

Ultrathin 18W RGB LED swimming pool lights,IP68 ingroung RGB LED light,ultrathin LED underwater light,ultrathin LED pool light,LED yacht lighting
engineering cases:

Service:
OEM or ODM
Our advanced production lines, precise equipment, strict quality control process and experienced engineer team are capable to fulfill the toughest OEM or ODM requirement from customers worldwide.
M.O.Q.
Gernerally, we don't require M.O.Q. in order to help some clients to expand their business & keep the ball rolling.
Lead time
3-13 working days based on stock material and order quantity.
Payment
T/T, Western Union or LC(at sight)
Incoterms
EX-Factory/work, FOB, FCA, CIF, CPT
Warranty
All our products are covered by 24 months warranty from the date of purchase
We are not responsible for any damage caused by unproper use/assembling or force majeure.
