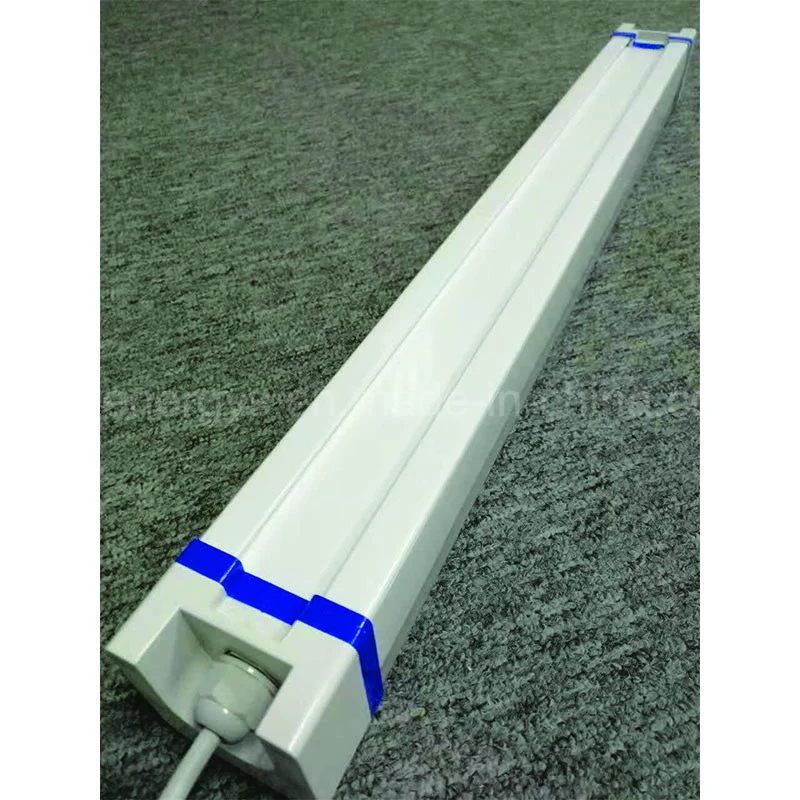

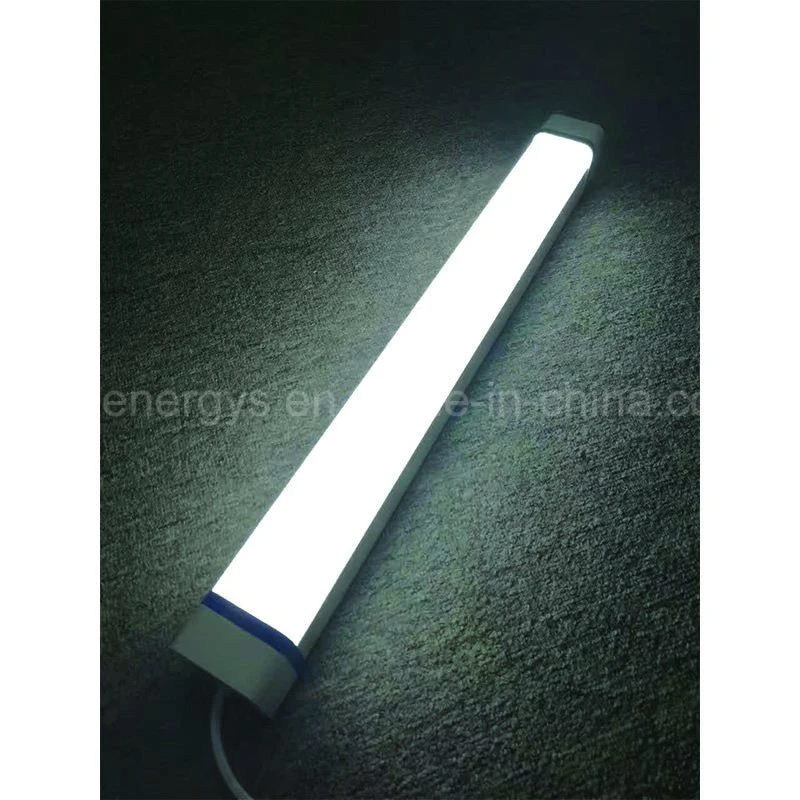

IP66 100LM/W 40W Internal driver Tri-proof LED tube light
Product features
| product name | 40W 1.2m Tri-proof LED light |
| LED Chip type | SMD2835 |
| LED brand | SAMSUNG / EPISTAR/ SAN’AN |
| LED Quantity | 120PCS |
| Lumen | 4000lm |
| Voltage | AC90-277V |
| Power | 40W |
| Emitting Color | 2600K, 3000K,4000K,5000K,6000K |
| Material | Plastic housing, internal heatsink, AL PCB LIFUD Driver |
| IP Rating | IP66 |

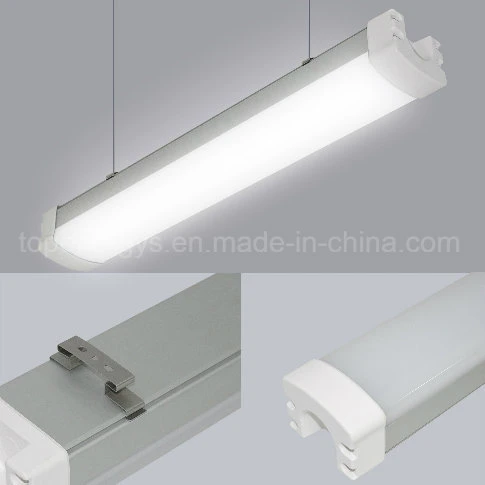

Tri-Proof light 20~60W
Tri-proof light is usually used in environment which require water-proof, dust-proof, corrosion-proof lighting.

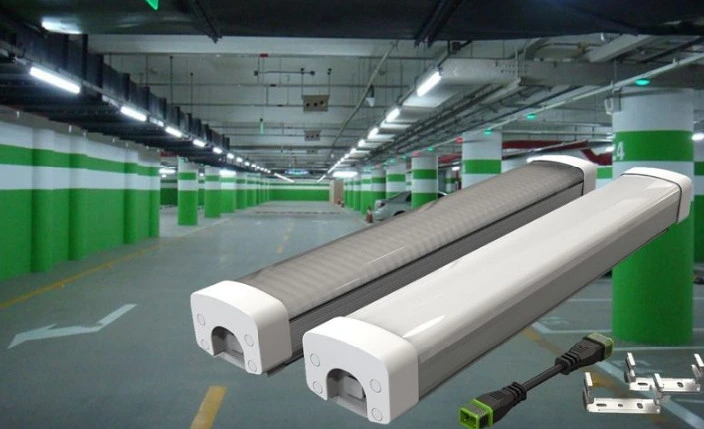

Such as shopping mall, warehouse and other indoor places.

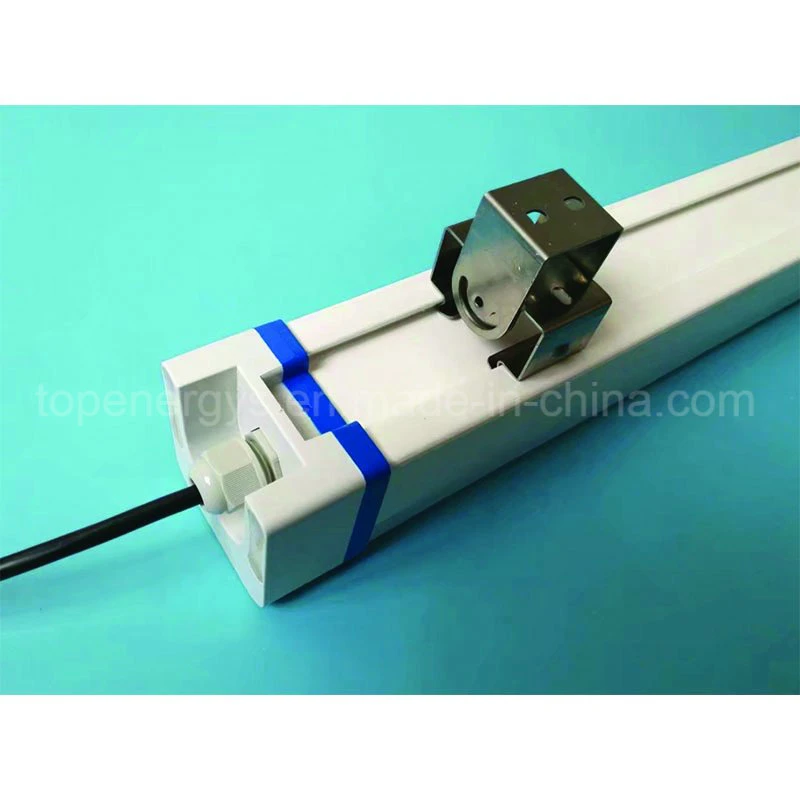

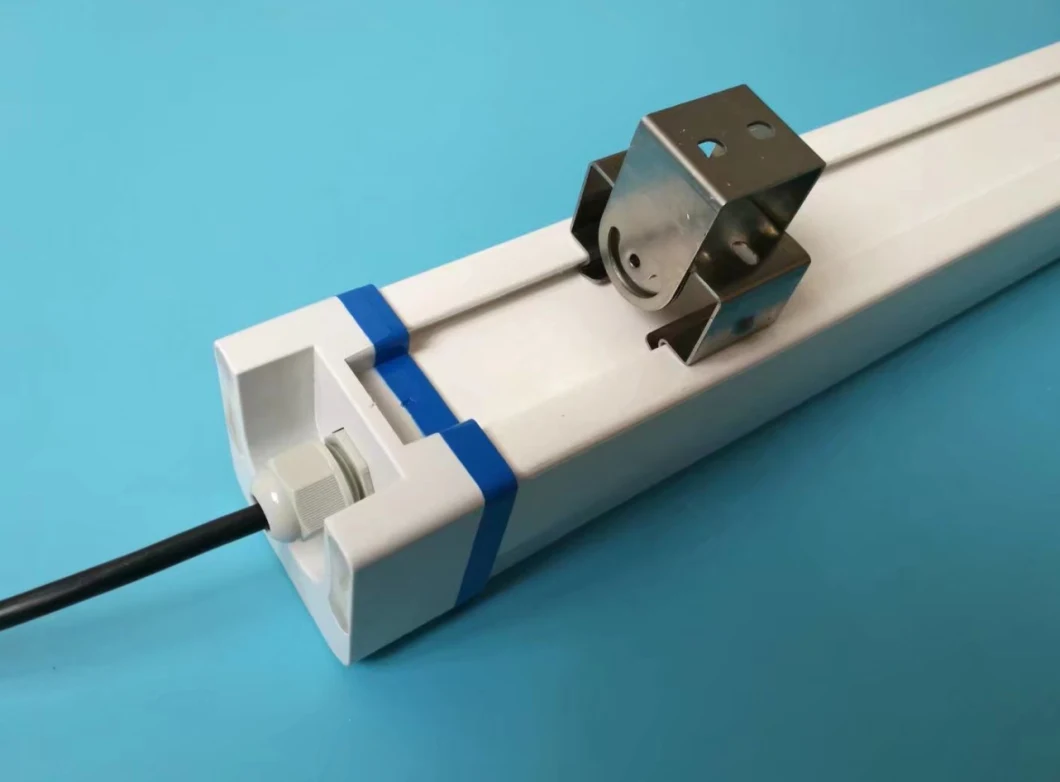

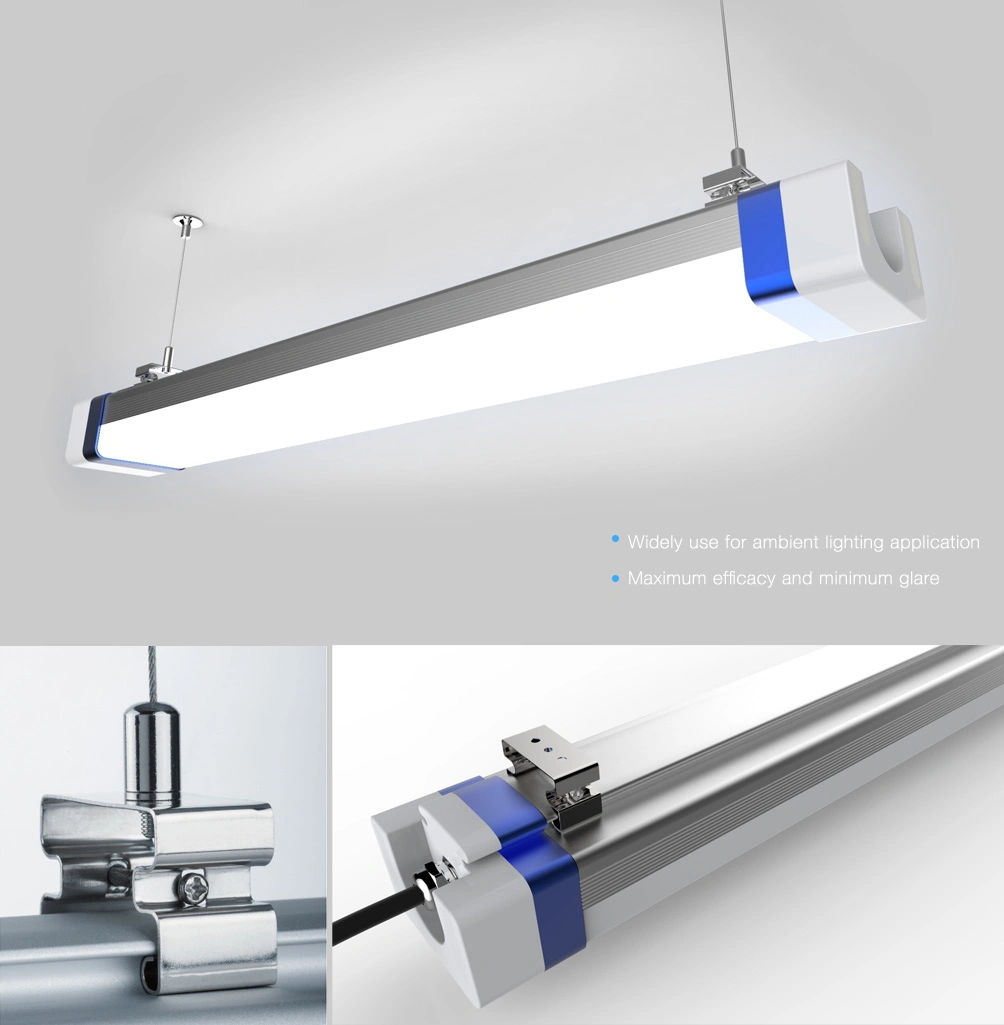

The lamp features smooth surface, no dust deposition, so it can be ceiling mounted or suspending mounted.

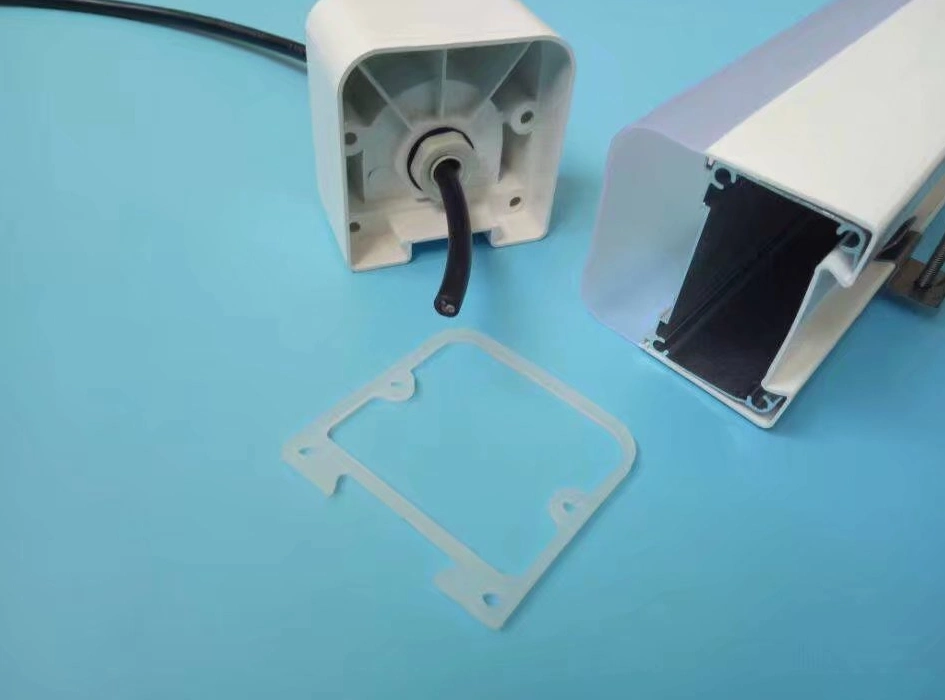

Light panel and PSU adopt modular design, connected via terminals, easy and
convenient to Maintain, no need of soldering
Specification of Tri-proof LED light
Power: 20W /30W/40W/60W
Input Voltage: AC90-265V/50-60Hz
Power factor: >0.9
Light efficiency:>120LM/W
Size: 63*63*600mm / 1200mm / 1500mm
color temperature:2700–6500k
Luminous flux: 2200LM /3300LM/4650LM/6600LM
CCT: Warm White,Pure White,Cool White
Color rendering index:>80Ra
Light source: SMD2835
IP code: IP65
Storage temperature: -30ºC~+60ºC
Working temperature: -20ºC~+50ºC

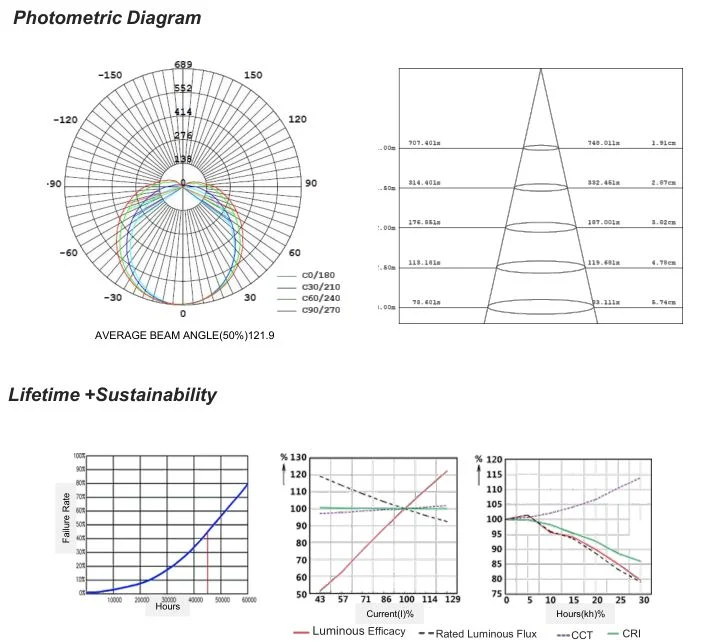

Beam Angle:120°
Life time: >30,000Hrs
Weight: 0.64KG/1.1KG/1.4KG
Material:Aluminum profile + PC
Warranty:5 years
High transmittance PC cover ,transmit soft light, small power LEDs, high light efficiency, no dark spot
IP65 design, without adhesive glue, no water leakage, convenient to repair
LIFUD LED driver, Epistar LED chip ensure high & stable quality
Tri-proof LED light testing report
