50w outdoor LED waves ripple effect flow architectural lighting design

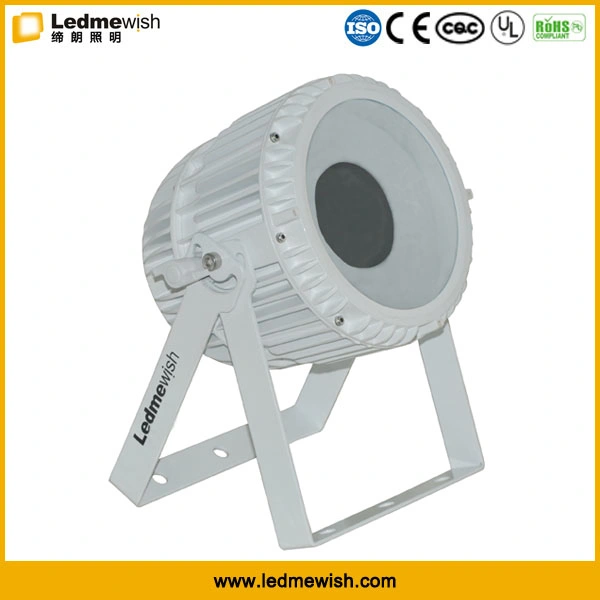

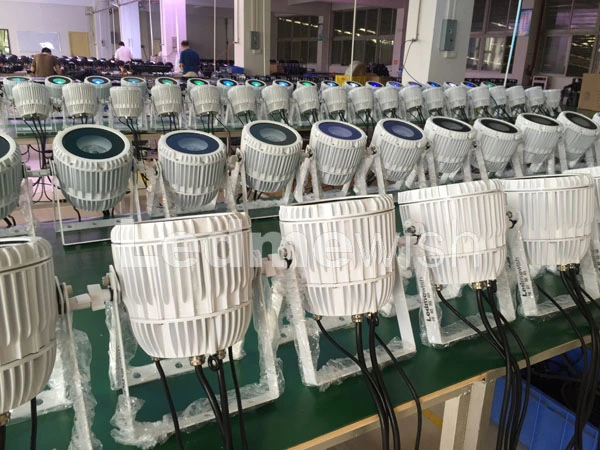

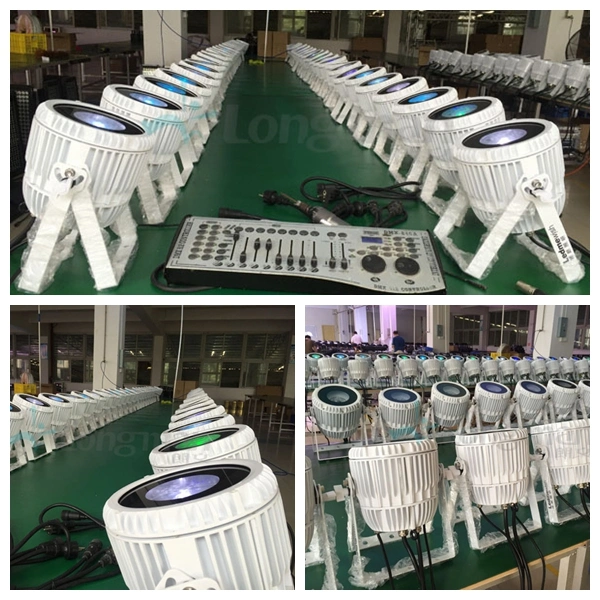

Producing picture:

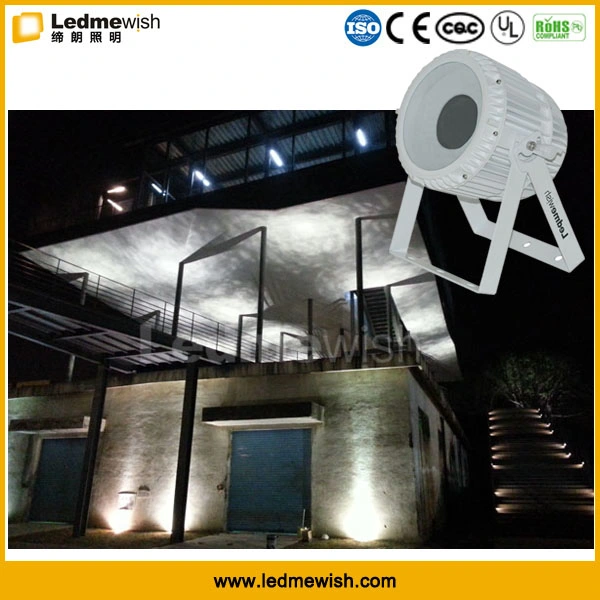

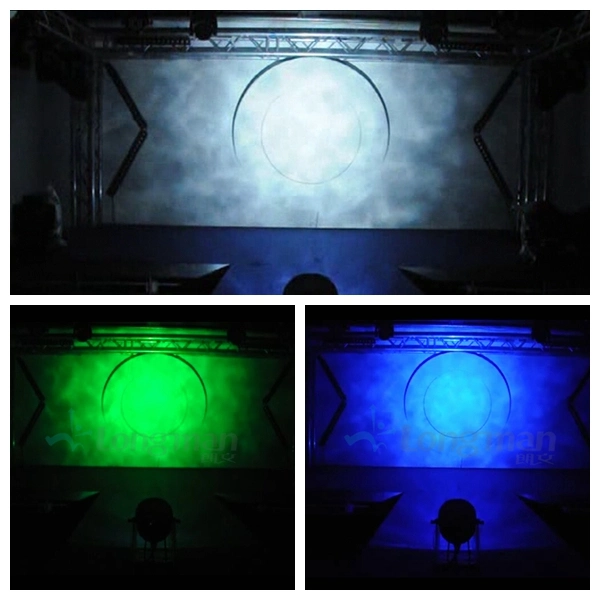

Effect picture:

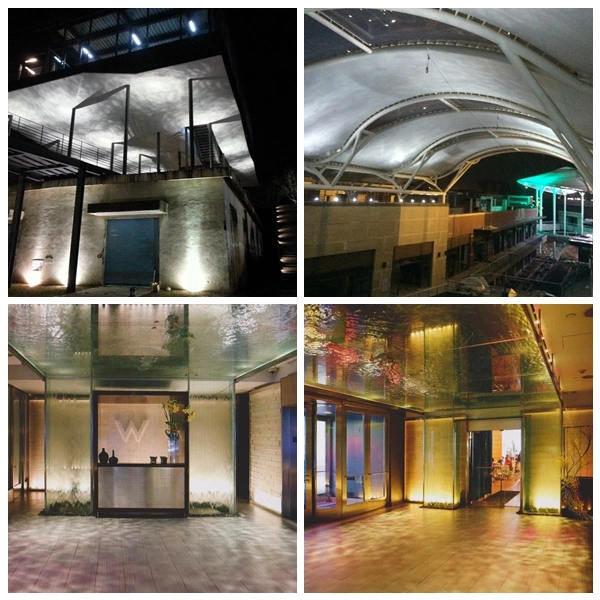

Applications:
Features:
1. Waterwave effect, projecting direction use, waterwave direction and speed adjustable, could connect and overlap.
2. Lumiled LED, 2280Lumens Output, Low comsume, stable performance, long longevity.
3. Mixing use with Cyan color background makes better effect.
4. DMX512 signal control, touch setting with LED screen.
5. Display could aotu turn off after no operation, show DMX signal situation make tesing easier.
6. Dim 4 Square law dimming, video flicker free, with strobe/gradual change inbuilt programs;
7. NTC temperature control system inside, reduce the power output when LED working temperature is too high.
8. With waterproof air vent to balance pressure, get rid of mosuisture on glass innerface.
Specifications:
| Voltage input | DC12V,Eqqwuiped with Exterior IP66 SMPS |
| Rated Power | 65W(54W@25ºC Peak ouput) |
| Luminaire Efficiency | >0.8,Light Efficacy >57lm/W |
| LED Lumens | 1pcs*Lumiled White color LED 8A Driving, total 2280 Lumens,46Lux@10Meters |
| LED CCT | Standard 4000K,could add color filter, advised to use flood light as background color |
| Field Angle(10%) | standard 70 °, when connect light beam with no related dark hole caculate as 55° |
| Control signal | DMX512,32 bit ARM MCU,PWM>600Hz,Video flcker free |
| Dimming Curve | Dim 4 square law dimming, smooth in low DMX Value dimming, not Jumping, no vision shock |
| Control mode | Meet E1.11 – 2004 USITT DMX512-A/stand alone/master and slave,effect speed and brightness adjustable |
| Chanel option | 6CH,Dimmer,Color,Clockwise and convert,Speed,Shutter,dimming Curve, could choose 5CH |
| Housing material | Die cast aluminum ADC12,standard Matte balck, customized glossy White painting, barndoor available |
| Safty | Class III, 3C*2.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP65 with Vent |
| Operate temperature | -20~+45ºC,Lamp body peak temperature 60ºC@25ºC Eviroment |
| Cerficated | Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750 |
| Insulated | Dielectric strength 1.5KV,Impedance strength > 2MΩ |
| Weight | 3.7KG,with double yokes 3mm thick supporting bracket |
| Size | 265*209*286mm |
Exhibitions:
Shipping:
Our products can be shipped by Sea, by Air, or by Express.which methods to be used is based on
the weight and size of the package, and with consideration of customer’s requirements.
by sea: 20-40days;
by air: 5-10days ;
by express: 3-6days
Why choose us:
1. Price: we are factory, able to offer better price .
2. Good quality: we are experienced in quality control; Through CE, RoHs,UL certification.
3. On time delivery: delivery the goods on time;
4. Professional seller: good communication in patient and well know our products;
5. MOQ: depent on different lights.
6. ODM&OEM :good ODM&OEM and custom engineering services.
FAQ:
| 1. Are you a factory or trading company? Yes , We are a factory. |
| 2. Where is your factory located? How can I visit there? Our factory address is : No.2 XiaheRoad, Baiyun Industrial Area , Jianggao Town, Baiyu District, Guangzhou, China ,about 30 minutes away from Bai yun Airport by metro. All our clients, no matter where you are from, all are most welcome to visit us ! |
| 3. Which products we have? We produce different kinds of LED Light . Our product: A. LED Moving Spot and Wash; B. Studio Light; C. Indoor Parcan; D. Professional Wash; E. Audience and DJ; F. Outdoor Parcan; G. Outdoor Washer; H. Black Light; J. Control System; K. Dramatic architectural and landscape lighting. |
| 4. How to get the latest price? If you want the latest price, Please Email or call us with the items names or NO. What are you interested in ,together with your details(name,details address,telephone,etc),we will send to you as soon as possible. |
| 5. Does the products have any certificate? Yes, our products have CE,ROHS ,UL and SGS certificate . |
| 6. What’s the Payment method? All methods can be discussed. |
| 7. How to Place an order? Please kindly send us you order by email ,we will confirm the PI with you .we wish to know the below:Delivery information,company name, address details,phone/fax number,destination,transportation way ;Product information: item number,size,quantity,logo,etc. |
Waterwave Effect Lights from China professional Waterwave Effect Lights manufacturer.
If you have specific parameters and requirements for our Waterwave Effect Lights,customization is available.
