Product Information
This 4 LEDs underwater RGBW LED luminaire uses RGB color change technology combined with pure white output to create billions of possible color choices in outdoor and underwater lighting applications. Single colors could be Warm White, Neutral White, Cool White, Red, Green, Blue, Yellow, Amber etc.
The light is made of corrosion-resistant stainless steel and tempered glass, so that it can withstand any wet or immersed environment.
Main Specifications
Front Cover & Housing: Molding shaped 304#/316#/316L# stainless steel
LED Source: 4*5W RGBW 4in1 / 6W
Lens: Optical lens, efficiency ≥85%
Glass: Tempered glass T=10mm
Cable gland: IP-68 PG-11 copper and nickel coated
Light Color: Single color / RGBW 4in1 (W=3000K, 4000K, 6000K)
Working temperature: -20ºC to 40ºC
Driver: Constant current output
Single color LED=1-circuit output
RGBW 4in1 LED=4-circuit output
MCPCB: Aluminum, coefficient of heat conductivity≥2.0w/mk
Power cable: H05RN-F 2x0.75mm2 L=2m (for single color)
H05RN-F 5x0.75mm2 L=2m (for RGBW 4in1)
Mounting sleeve: Plastic
Product Specification:
| Model Number | 94747AS |
| Total Power | 2x5w RGBW 4 in 1 |
| Input Voltage | DC12V/DC24V |
| Product Size | ¢162mm |
| Beam Angle | 24°/36°/60°/10°x30°/asymmetrical lens |
| Gross Weight | 11KGS/Carton/8pcs |
| Carton Packing Size | 27x27x30cm/Carton 8pcs/Carton |
| Emitting Color | White,Warm White, Red, Green, Blue |
| Body Material | 304Stainlesss Steel / 316L Stainlesss Steel |
| Working Lifetime | >50,000Hrs |
| Mounting Sleeve | Plastic |
| IP Rating | IP68 |
| Certification | CE,RoHS,EMC |

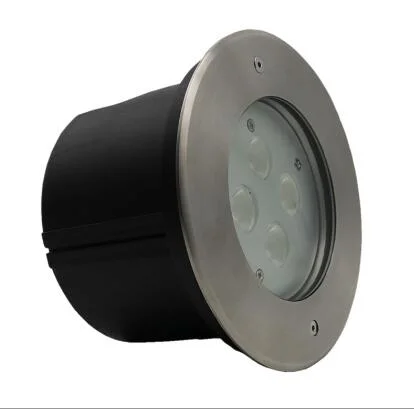

Product Photo:
Application:
World-Wide Customers:
Our Service:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more thanQ3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is availableQ4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
