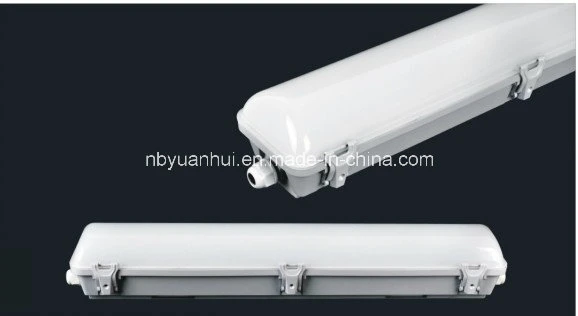

IP66 LED Module Waterproof Luminaire
Product Description:
Input: AC 100-270V, 50-60HZ
Driver: OSRAM, Meanwell or other options
Reflector: MCPCB or High temperature resistant PCB for your option
Body and diffuser could meet the IK08, and 850 degree glow wire test requirement
Perfect replacement for the whole set of T8 fluorescent Luminaire.
Save uo to 60% in electricity consumption compared to fluorescent lighting fixture
Lifetime:50000hrs, Warranty: 5 years
It could be with sensor (turn on/off sensor, dim sensor), emergency kit.
suitabel for supermarket, underground parking, warehouse, function well in waterproof and dustproof, suitable for outdoor and wet location lighting application
Techinical Parameters:
| Model No | LMF12-600 | LMF24-600 | LMF24-1160 | LMF36-1160 | LMF48-1160 | LMF34-1560 | LMF54-1560 | LMF70-1560 |
| Power (w) | 12w | 24w | 24w | 36w | 48w | 34w | 54w | 70w |
| Product Size | 600*120*108mm | 1160*120*108mm | 1560*120*108mm | |||||
| Efficiency (lm/w) opal len | 100lm/w | |||||||
| CCT (K) | 2700-6500K | |||||||
| Certificates | CE-LVD, EMC, ROHS, GS, ENEC, CB, SAA, C-TICK, UL, CUL, DLC | |||||||
| LED chips | SAMSUNG or EVERLIGHT | |||||||
| LED driver | OSRAM or MEANWELL | |||||||
| CRI | >83 | |||||||
| Bean Angel | 120 degree | |||||||
| Operating Ambient temperature | -20~40ºC | |||||||
| Operating Humidity | 10-90% | |||||||
| Warranty | 5 years | |||||||
| IP | IP66 | |||||||
| IK | IK08 | |||||||
| Glow Wire Test | Pass 850ºC | |||||||
| Material | Polycarbonate Material | |||||||

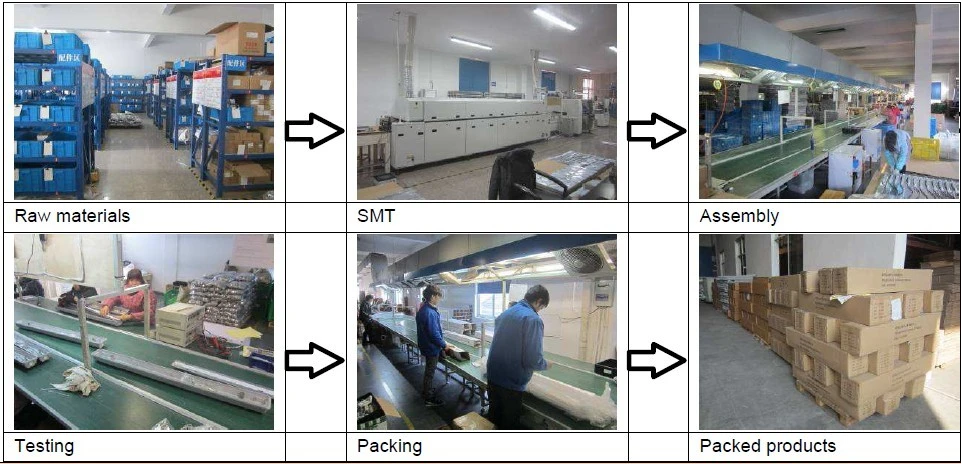

Production Workflow Chart:

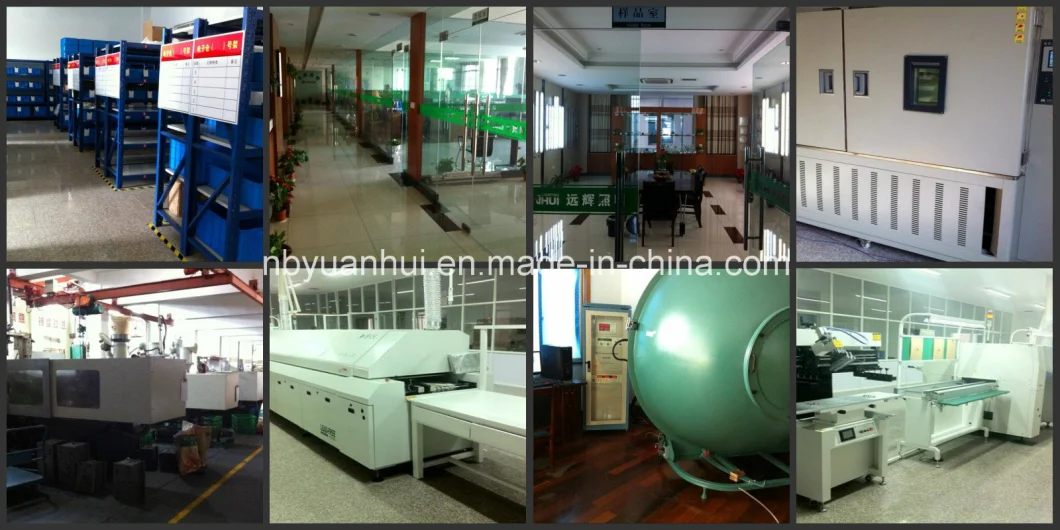

Factory review:
