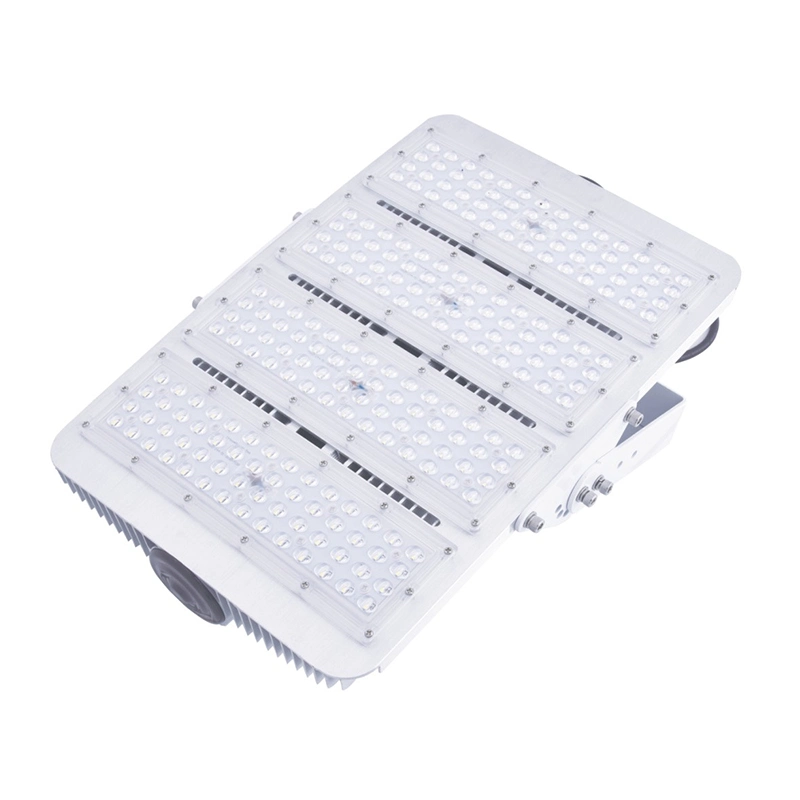

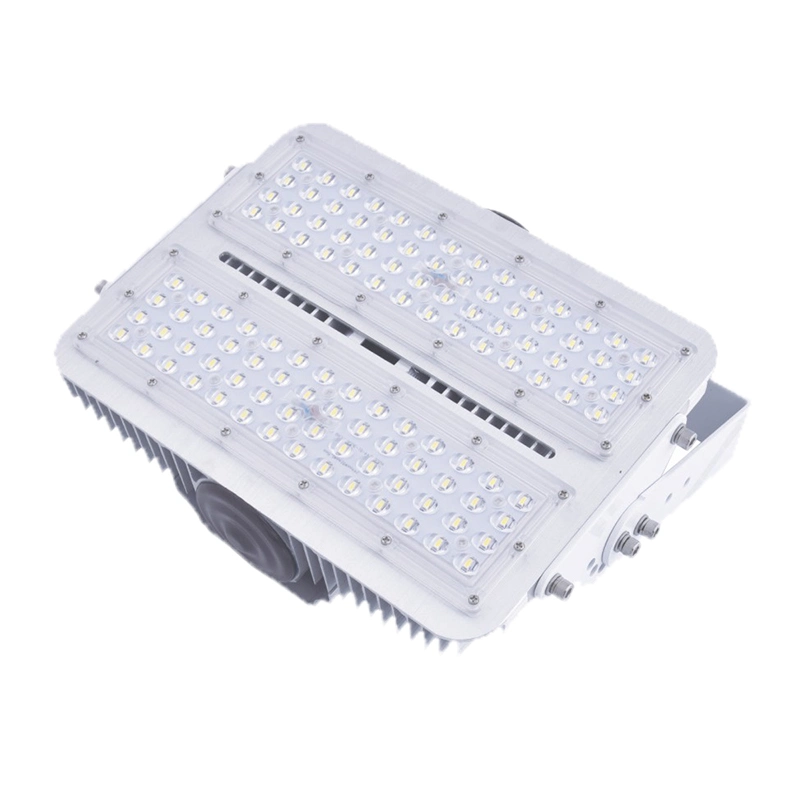

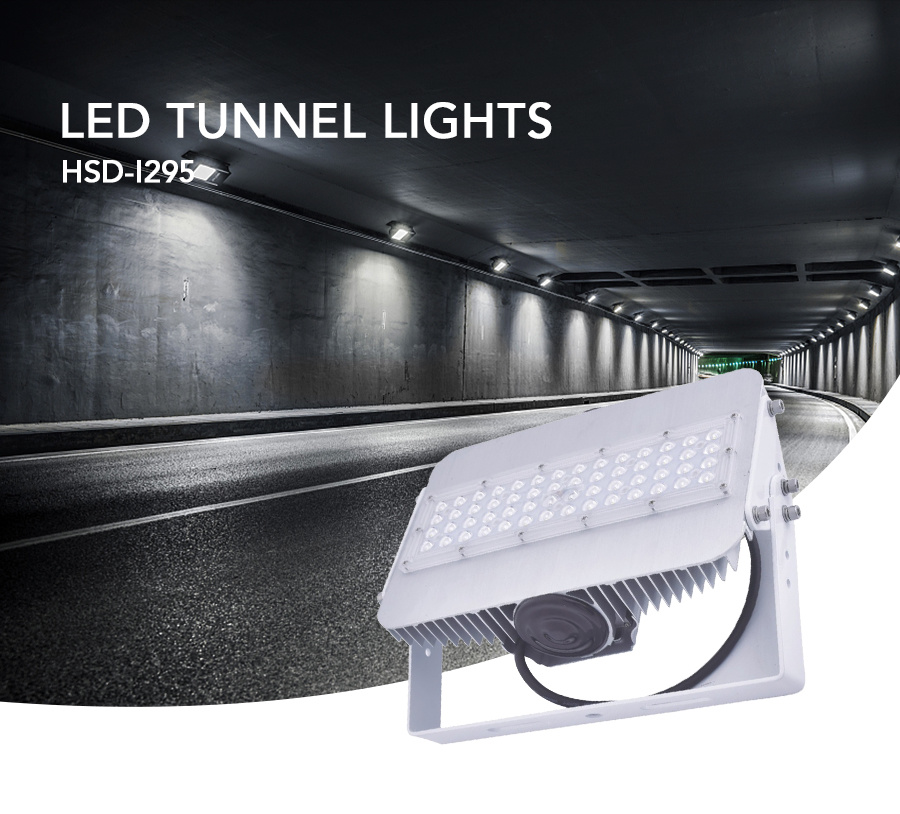

High Power Outdoor Waterproof IP66 LED Tunnel Flood Light 60W 120W 180W 200W 240W 300W 340W
Datasheet:
| Model | HSD-I295-561D | HSD-I295-562D | HSD-I295-563D | HLD-I295-564D | HLD-I295-564D | HSD-I295-565D | HSD-I295-566D |
| Power (W) |

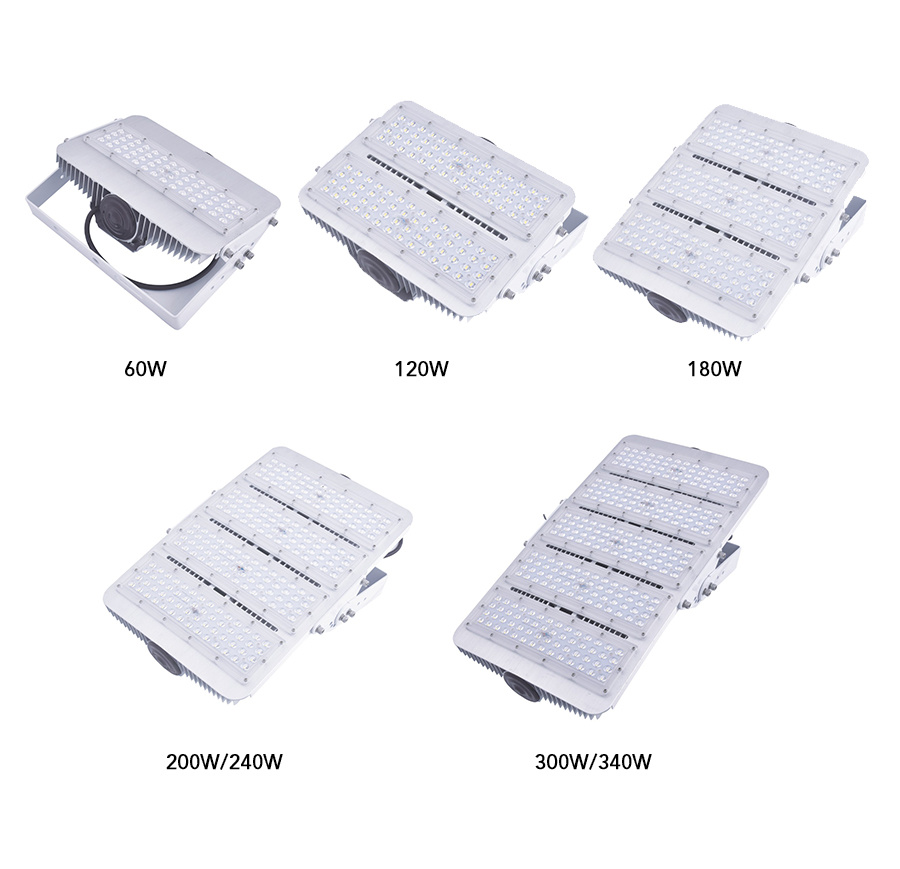

60W | 120W | 180W | 200W | 240W | 300W | 340W |
| Input voltage Power factor |
85-305VAC, >0.95 |
||||||
| Light efficiency (lm/w) |
120-160 | ||||||
| Beam angle | 30°/60°/90°/70°*140° | ||||||
| Color temperature | 2200K-6500K | ||||||
| CRI | 70/80 | ||||||

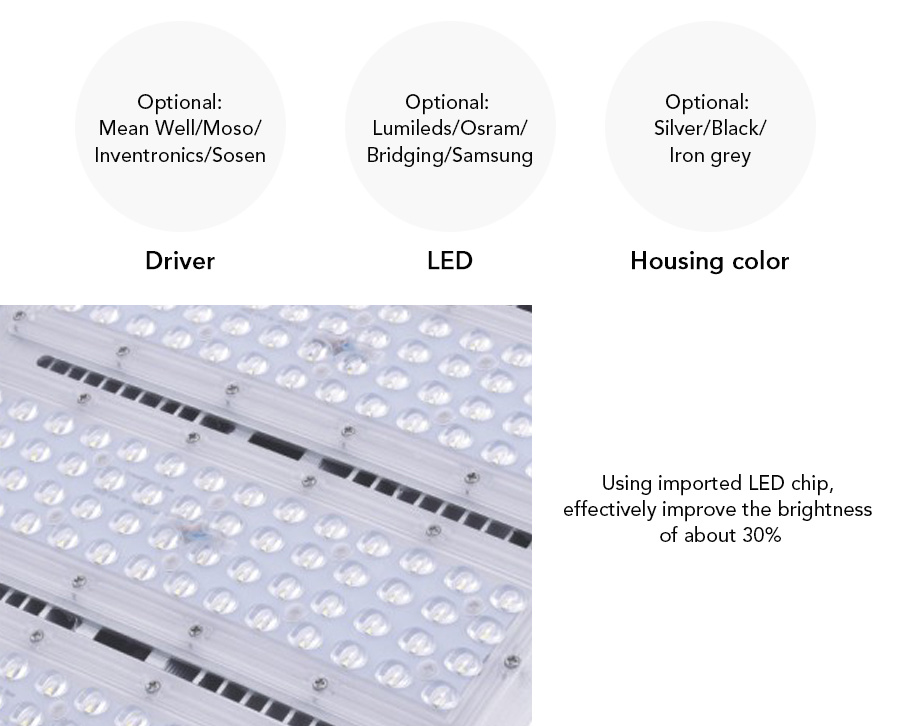

| Driver | Optional: Mean Well/Inventronics/Moso/Sosen |
||||||
| LED | Optional: Lumileds/Osram/Bridging/Samsung |
||||||
| Housing color | Optional: Silver/Black/Iron grey |
||||||
| IP grade | IP66 | ||||||
| Material | Aluminum + optical PC | ||||||
| Item size (mm) |
236×295×80mm | 236×295×80mm | 336×295×80mm | 436×295×80mm | 436×295×80mm | 536×295×80mm | 635×295×80mm |
| N.W(kg/pcs) | 2.5kg | 3.1kg | 4.0kg | 5.0kg | 5.0kg | 6.9kg | 8.8kg |
| Packing Dimension (mm)/(pcs) |
295×315×105mm | 295×315×105mm | 350×325×145mm | 450×325×145mm | 450×325×145mm | 550×325×145mm | 650×325×145mm |
| Warranty | 5 years | ||||||
| MOQ/model | 100pcs | ||||||
Led flood light advantage:
LED Chip: Lumileds LED Chips which is the most famous Brand in chips field, high efficiency high lumin and long lifespan, high quality.
LED Chip: Lumileds LED Chips which is the most famous Brand in chips field, high efficiency high lumin and long lifespan, high quality.
Power Supply: Hotsoon LED flood lights are adopted Meanwell UL approved driver, IP66 and high quality, it improved lights performance. Power efficiency ≥95.
Colour temperature: LED floodlight provide a range of colour temperatures from 2200 to 6500 Kelvin helping to enhance a building’s exterior.
Optics: Optical assembly: hermetically sealed providing IP66. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing: Finned aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180°C.
Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification: CCC, CE & RoHS authentication.

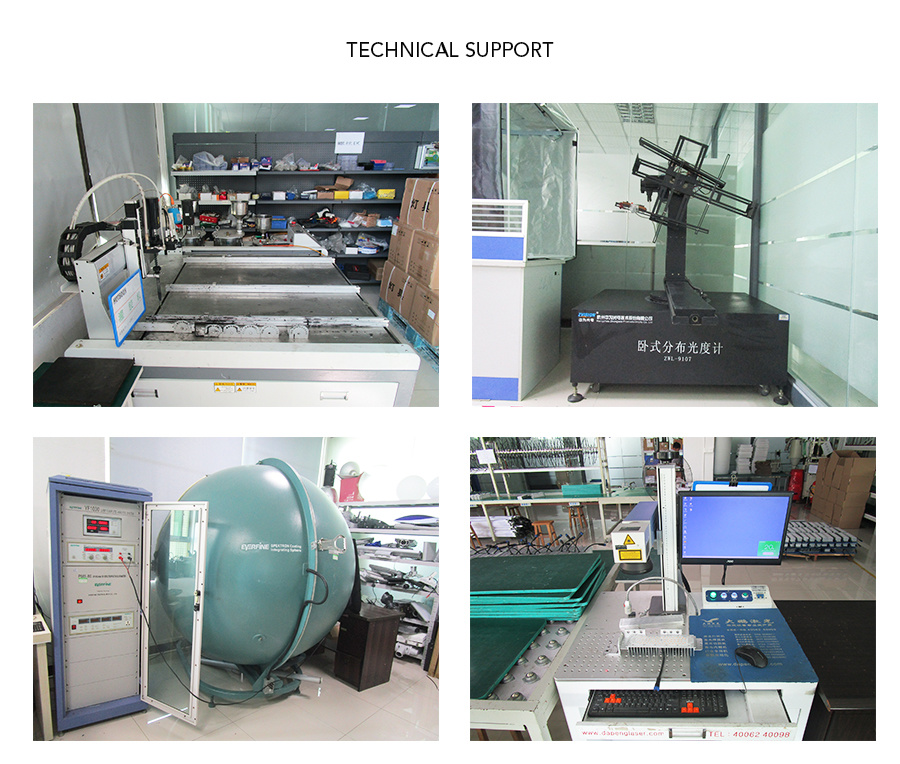

Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

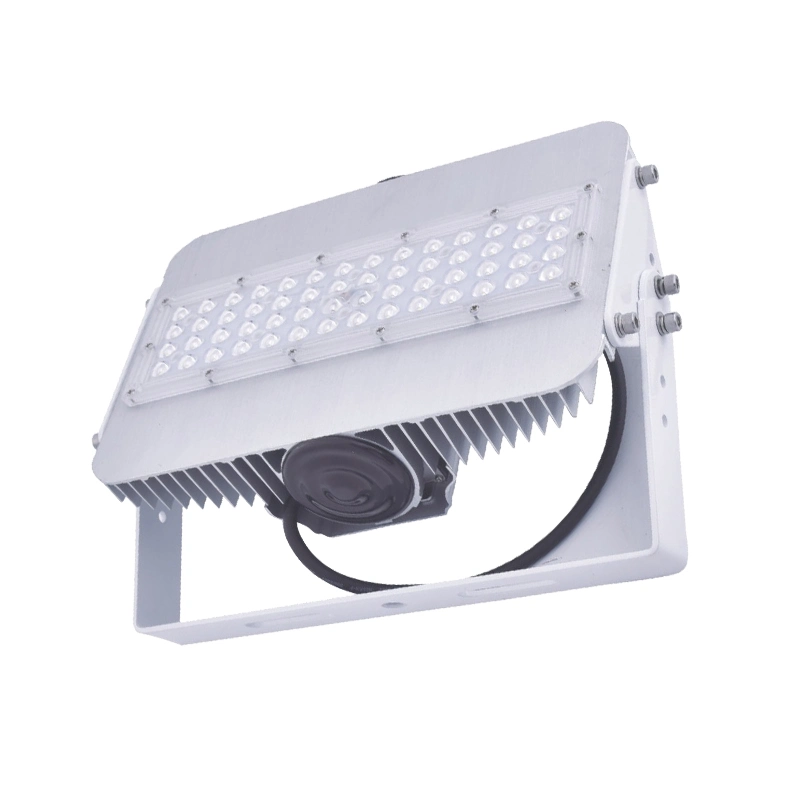

Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.

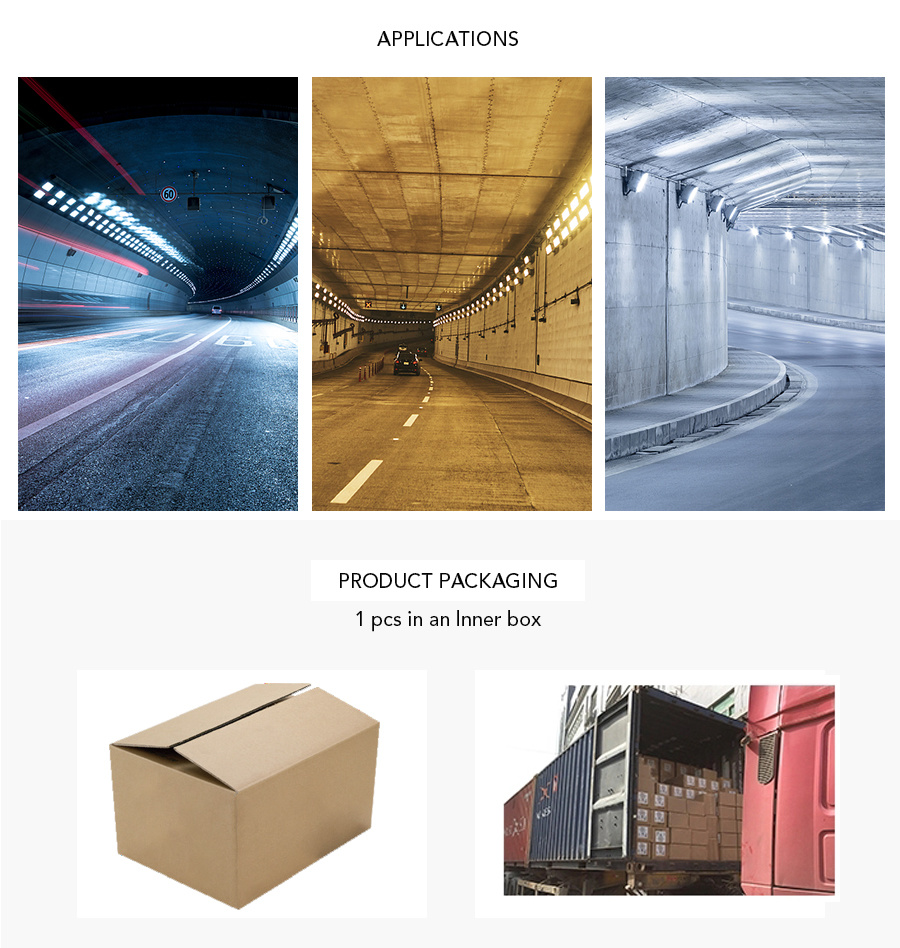

Applications:
1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
FAQ
1. Leadtime, 3-5 days for sample orders, 5-10 days for massive orders
2. Shipment: door-to-door, air-shipping, sea-shipping
2. Shipment: door-to-door, air-shipping, sea-shipping
3. Payment terms: T/T, L/C at sight
4. Shipping port: Shenzhen, China ( or appointed port in China )
5. Discount offered based on order quantity
6. Your inquiry will be replied efficiently
7. OEM or ODM welcomed
8. Defective products within warranty period will get maintenance or replacement unconditionally.
4. Shipping port: Shenzhen, China ( or appointed port in China )
5. Discount offered based on order quantity
6. Your inquiry will be replied efficiently
7. OEM or ODM welcomed
8. Defective products within warranty period will get maintenance or replacement unconditionally.
