1W IP67 Buried LED Underground Light with soft light
specification:
1. 304(316#)#stainless Steel cover(size as picture)
2. 6063# pure aluminum housing
3. High power LED: CREE XPE LED CHIP
4.Light source: 1*3W single color; 1*1W single color and 1*3W RGB3in1 can be availble
5. 12MM Tempered glass
6.IP67 rating with CE certificated;
7. Input Voltage:12VDC,24VDC or 100-240VAC
8.Operating temperature:-20~+40centigrade.
Product Specification:
| Model Number | 82712 | |||||
| Product Size | Dia38x65MM | |||||
| Total Power | 1x1w; 1x2w | |||||
| Input Voltage | DC12V/DC24V | |||||
| Beam Angle | soft light without lens | |||||
| Emitting Color | White,Nature White, Warm White,Red, Green, Blue, RGB | |||||
| Body Material | Powder coated aluminum+7mm Tempered glass | |||||
| Front Cover | 304 stainless steel/316L stainless steel | |||||
| Led chip | Cree/Bridgelux/Edison | |||||
| Power Cable | 2 meters | |||||
| Working Lifetime | >50,000Hrs | |||||
| Optional Mounting Sleeve | ABS | |||||
| IP Rating | IP67 | |||||
| Operating temperature | -20ºC~ 40ºC | |||||
| Certification | CE,RoHS | |||||
| Outer Carton Size (cm) | L | W | H | G.W./CTN | ||
| 38 | 29 | 27 | 8.0kgs (24pcs/CTN) | |||

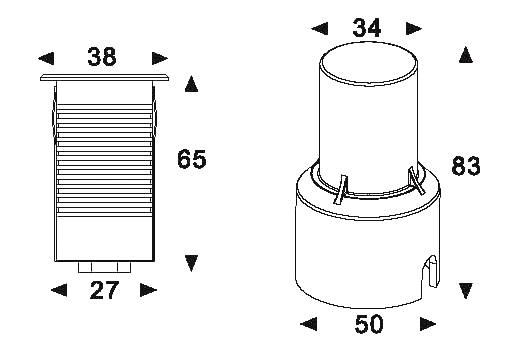

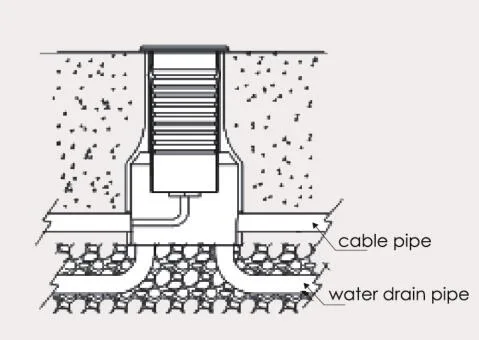

Drawing(size)& installation diagram:
LED inground lights, inground LED lights, LED underground light,underground LED lights,Mini inground LED light,buried 3w LED light,stainless steel inground lights,small LED lights,LED plaza light,Mini stair light,LED step light,underground LED projectors line installation:

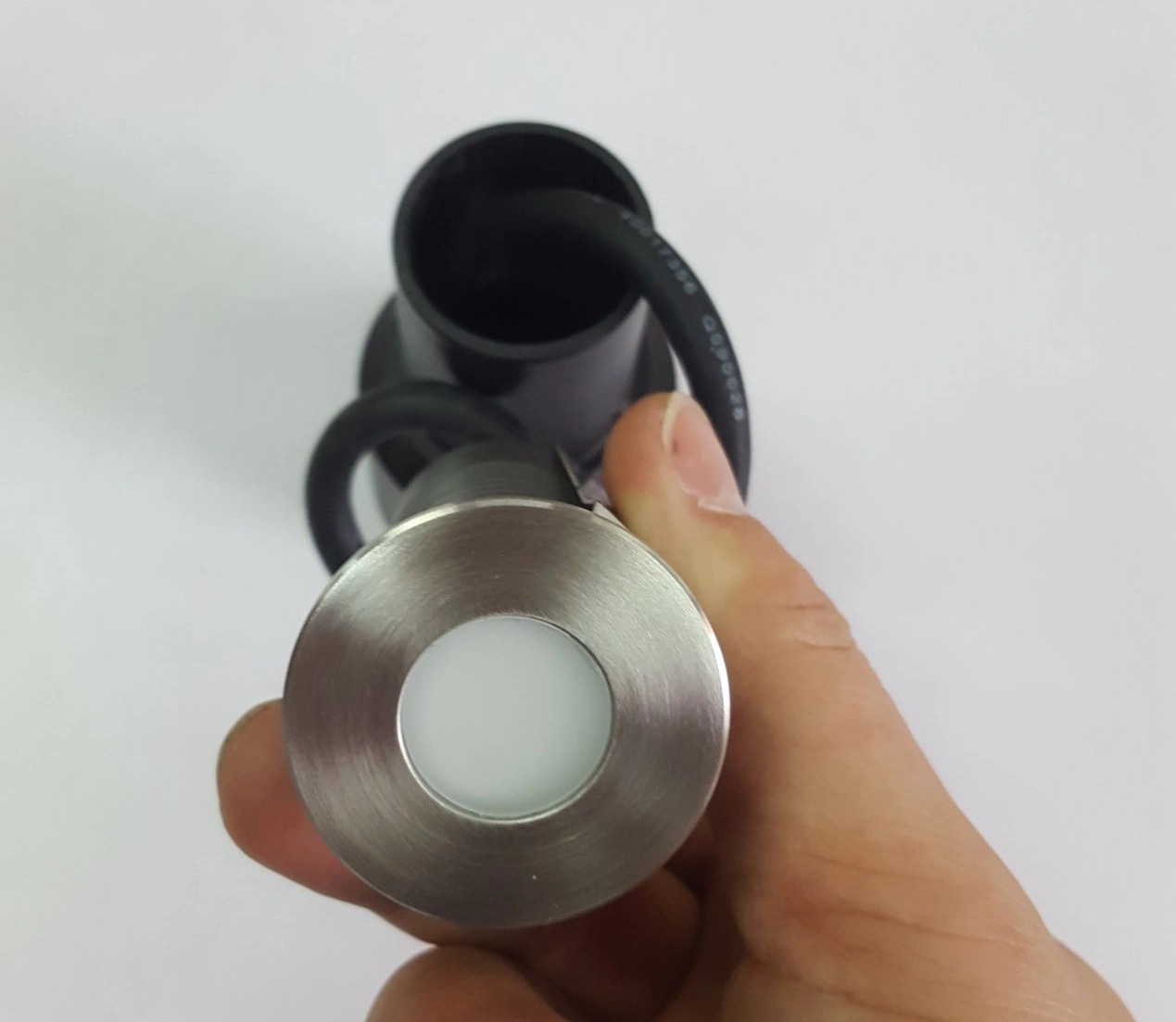

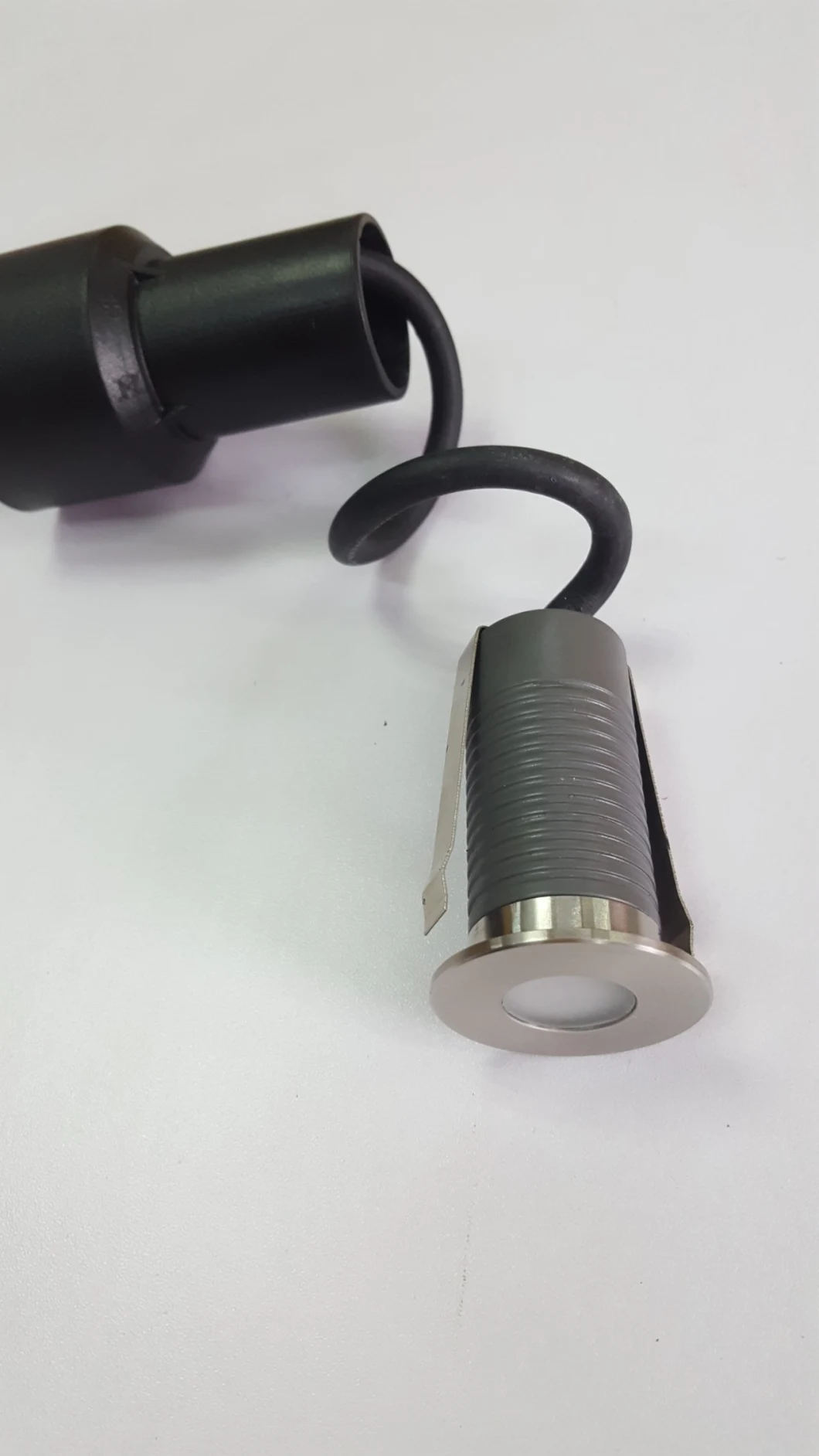

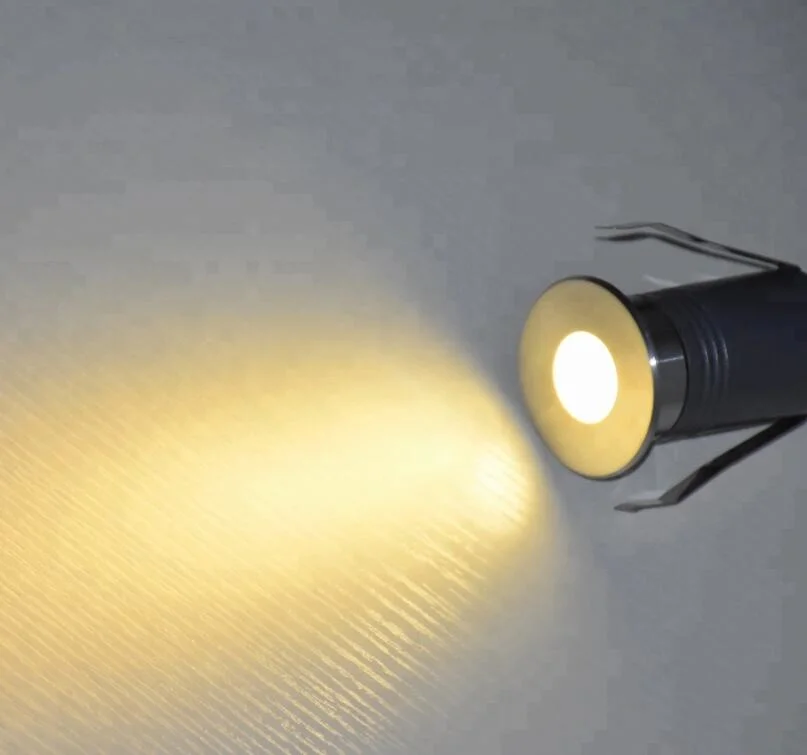

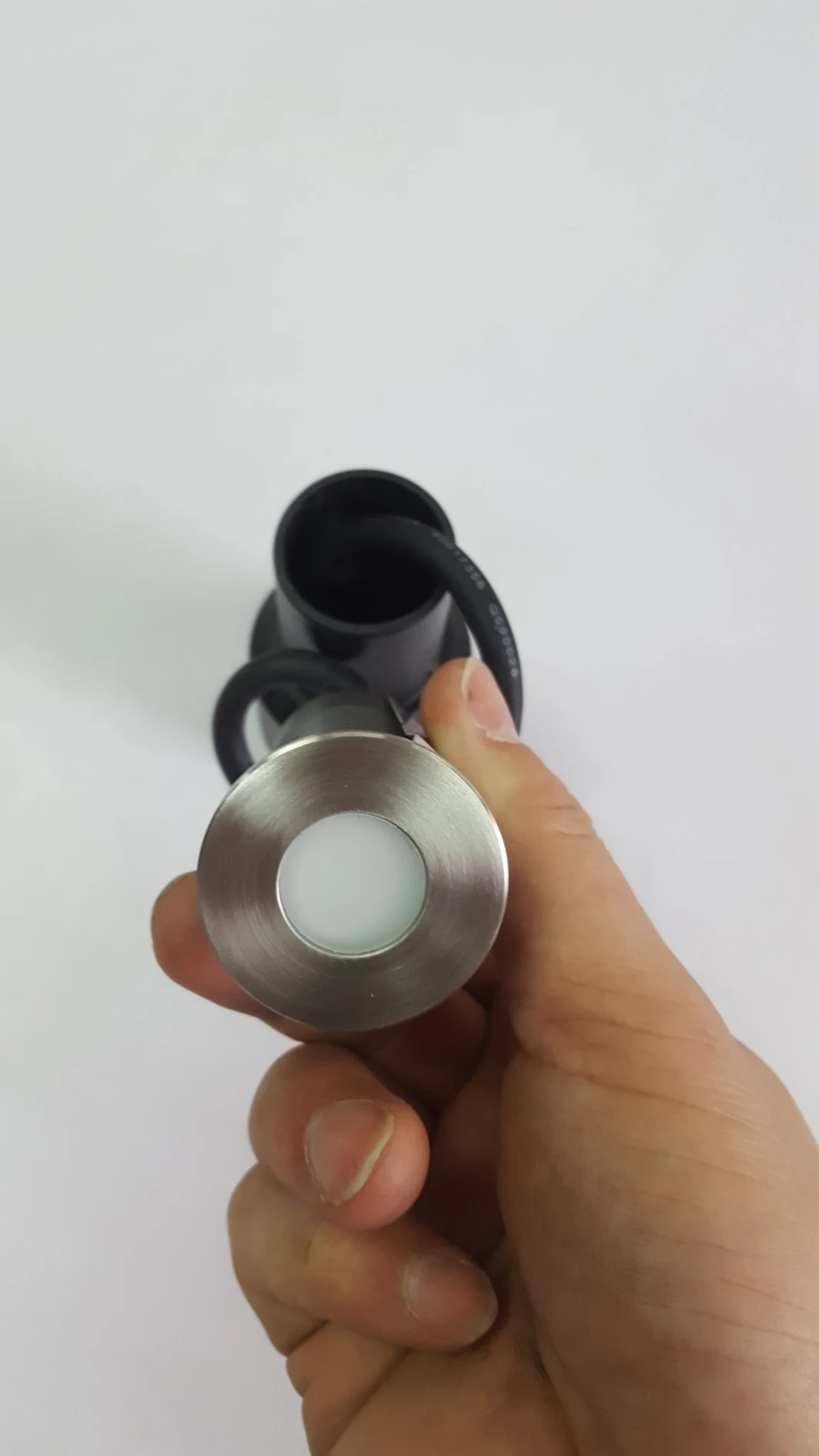

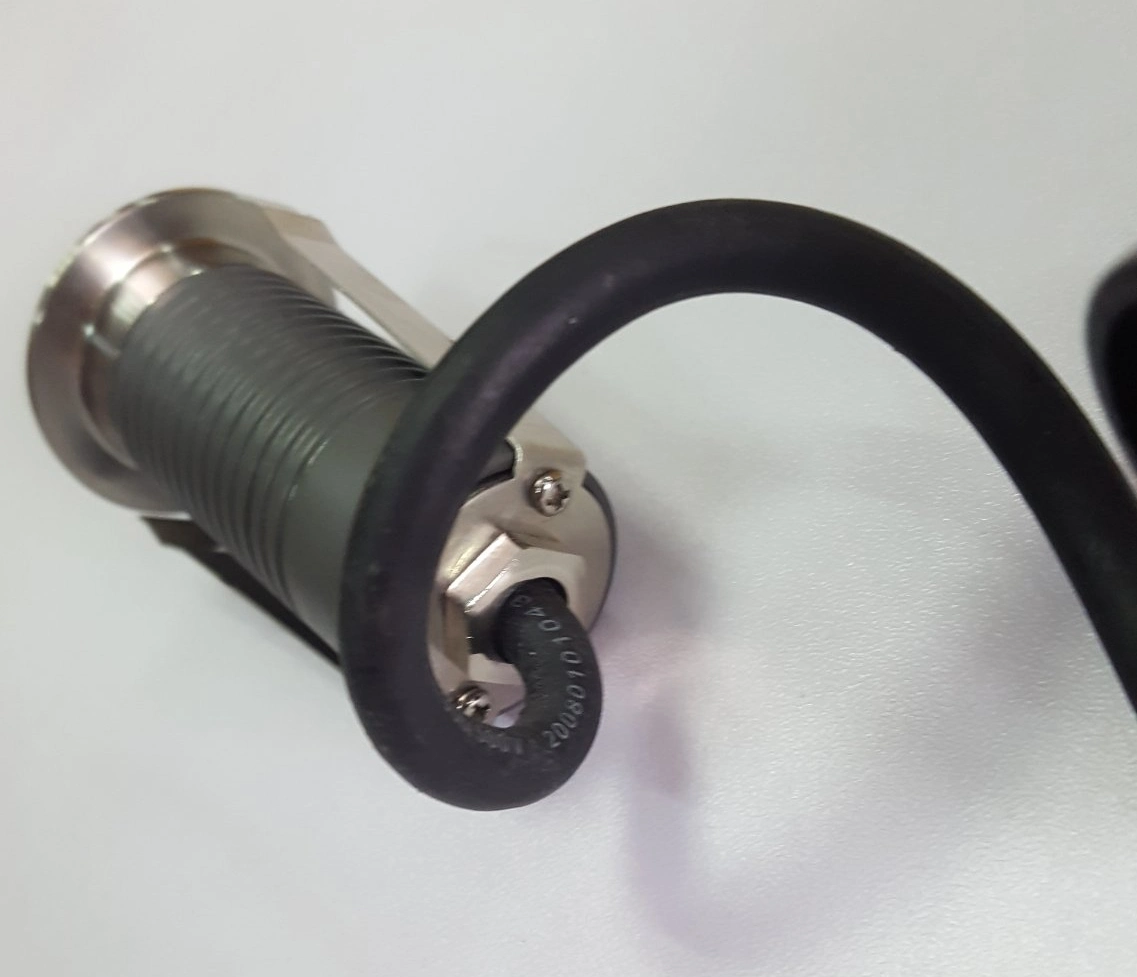

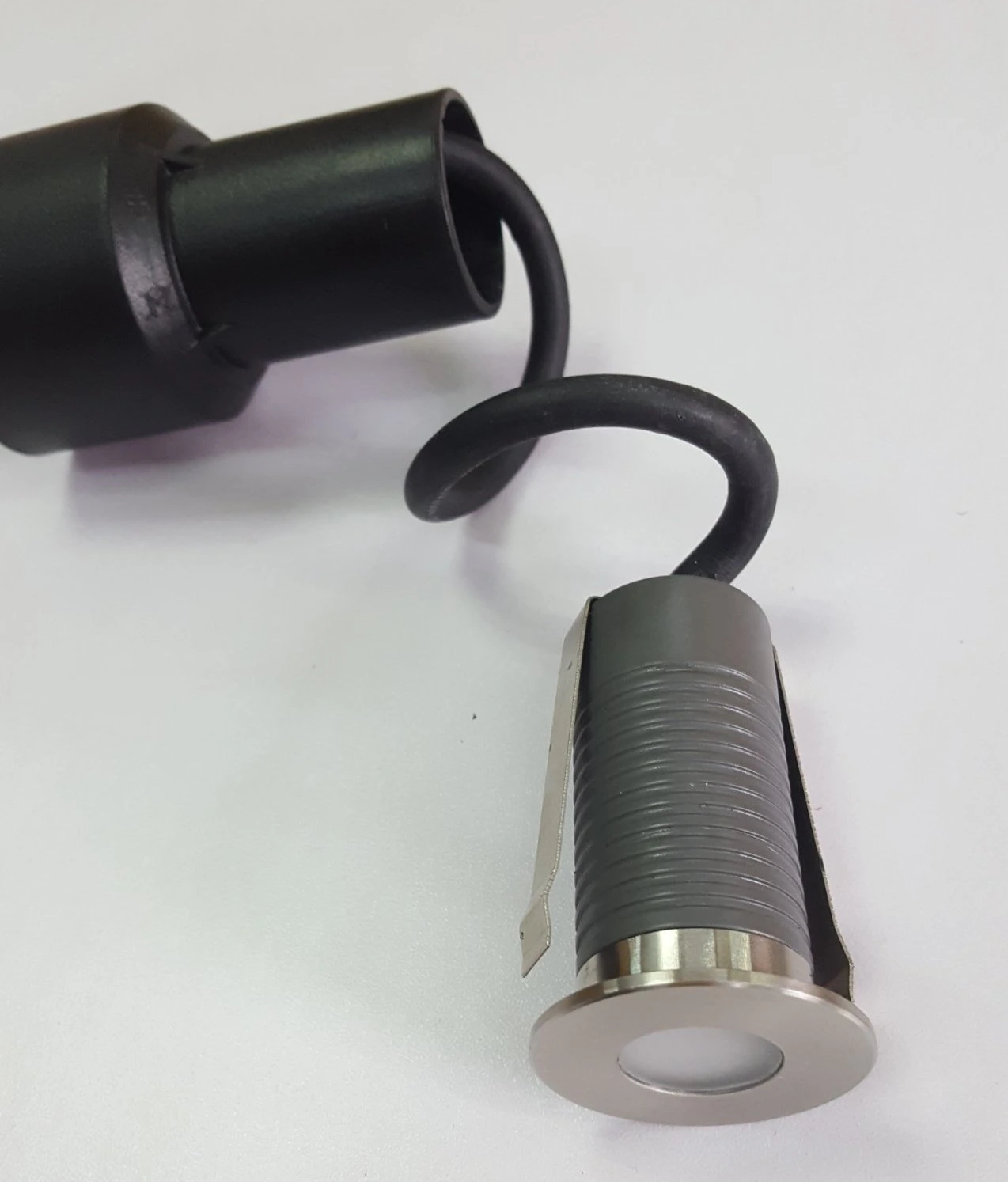

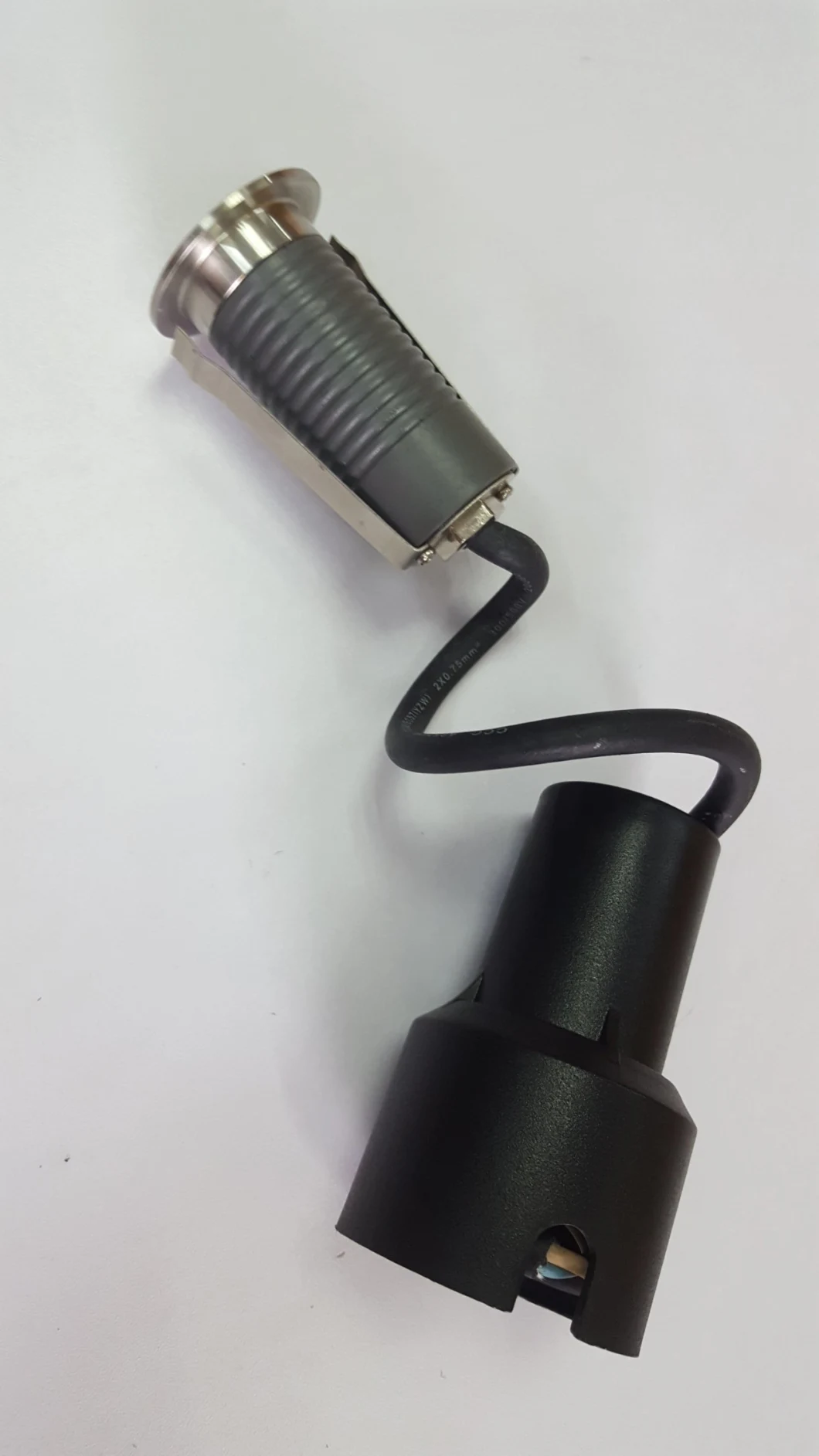

Product Photo:

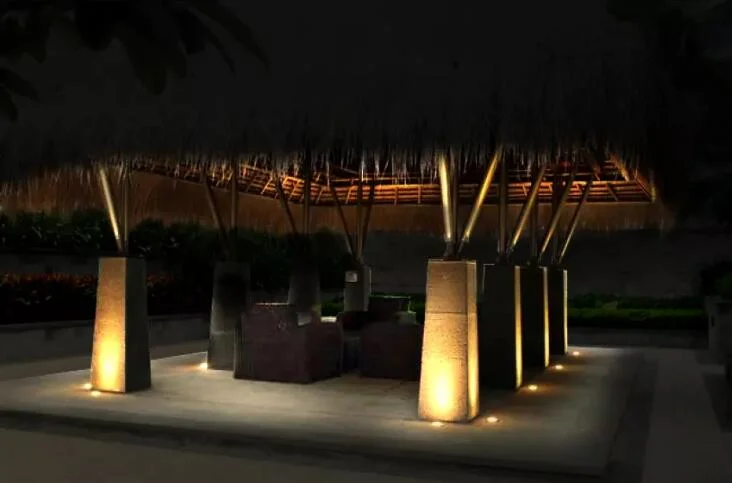

Application:
World-Wide Customers:
Our Service:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
