130Lm/W Street Lamp outdoor Led Street Lights Led 50W Street Lights

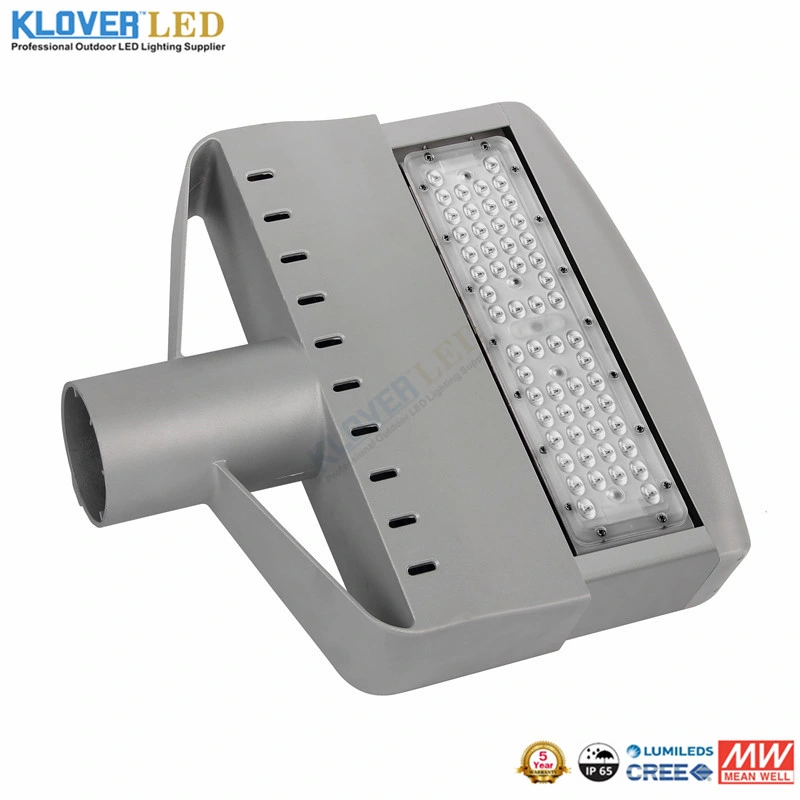

Product name: 50W LED street light, with 56pcs Lumileds 3030 chips.
50W, 100W, 150W, 200W optional
LED chips: CREE/Osram/Lumileds/Bridgelux SMD3030 optional.
LED driver: Meanwell/Phi-lips/MOSO/CB driver optional
CB driver: AC85-308V 50/60HZ, no flashing, 10KV surge protection, THD<10%, PF>0.95, 5 years warranty, very cost effective
Luminaire efficiency: >130lm/w
Beam angle: Type 3: 150*80 degree
Material: aluminum alloy
LENS: Optical PC lens, >93% light transmission and no glare.
IP rating: IP65
Warranty: 5 years
Advantages: excellent heat dissipation, low temperature rise only about 35 degree
Quick specification for 0473 series LED street light
| Model No | Power | Product Size(mm) | LED Chip | LED Qty(pcs) | Driver | Carton Size(mm) |
| CL-SL0473-50W | 50W | 350*320*83 | Lumileds/Osram/Bridgelux 3030 | 56 | Meanwell/Moso/ Inventronics optional | 400*335*170 |
| CL-SL0473-100W | 100W | 425*320*83 | 112 | 470*335*170 | ||
| CL-SL0473-150W | 150W | 500*320*83 | 168 | 531*335*170 | ||
| CL-SL0473-200W | 200W | 575*320*83 | 224 | 615*3035*170 | ||
| CL-SL0473-240W | 250W | 650*320*83 | 280 | 700*335*170 | ||
| CL-SL0473-300W | 300W | 725*320*83 | 336 | 783*335*170 |

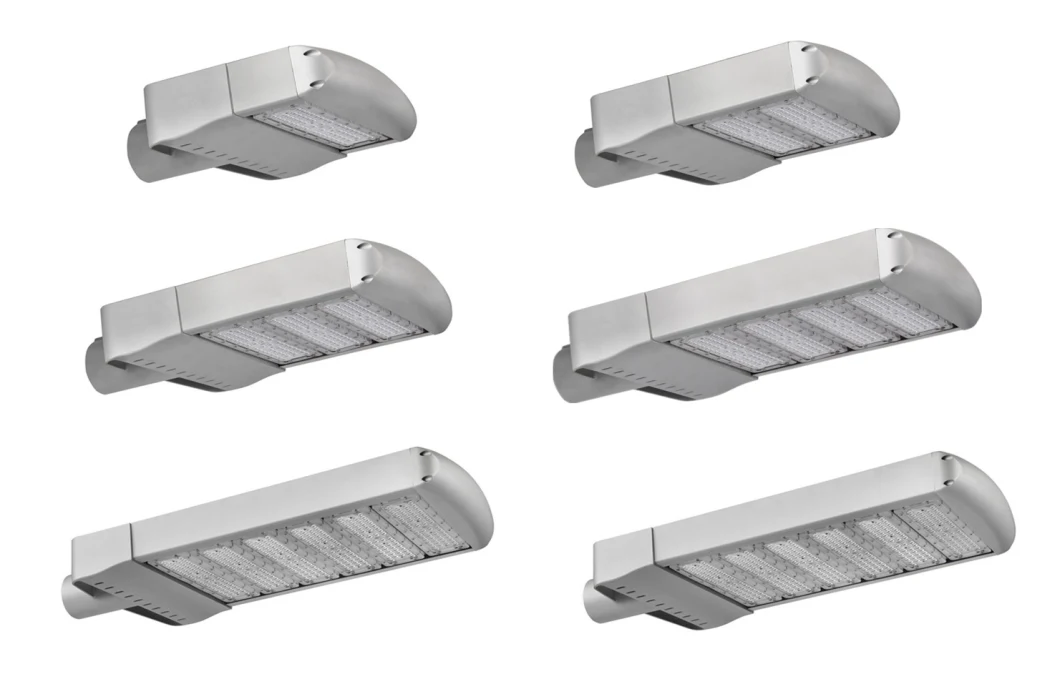

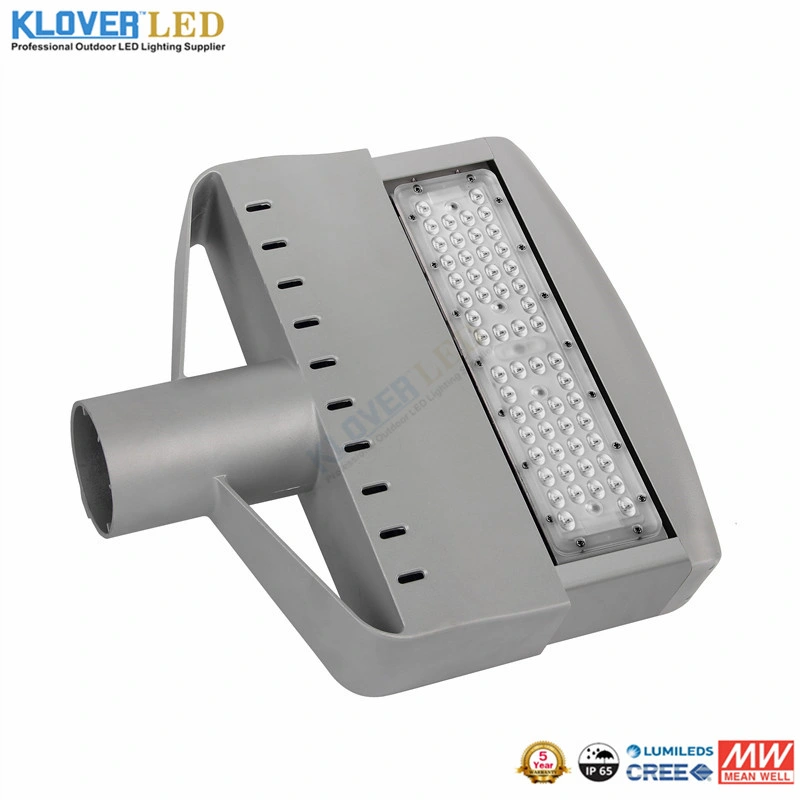

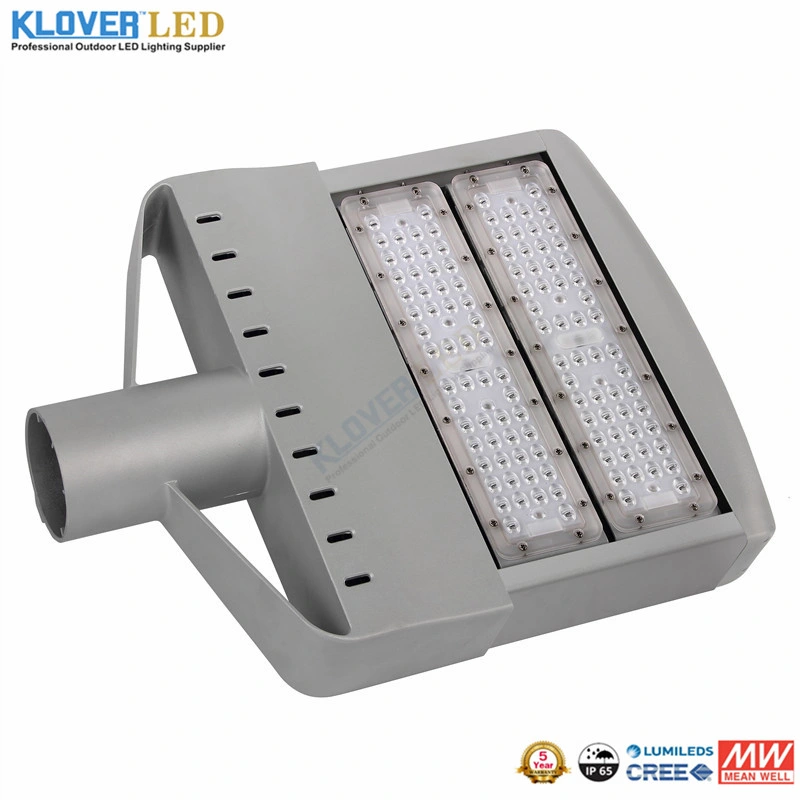

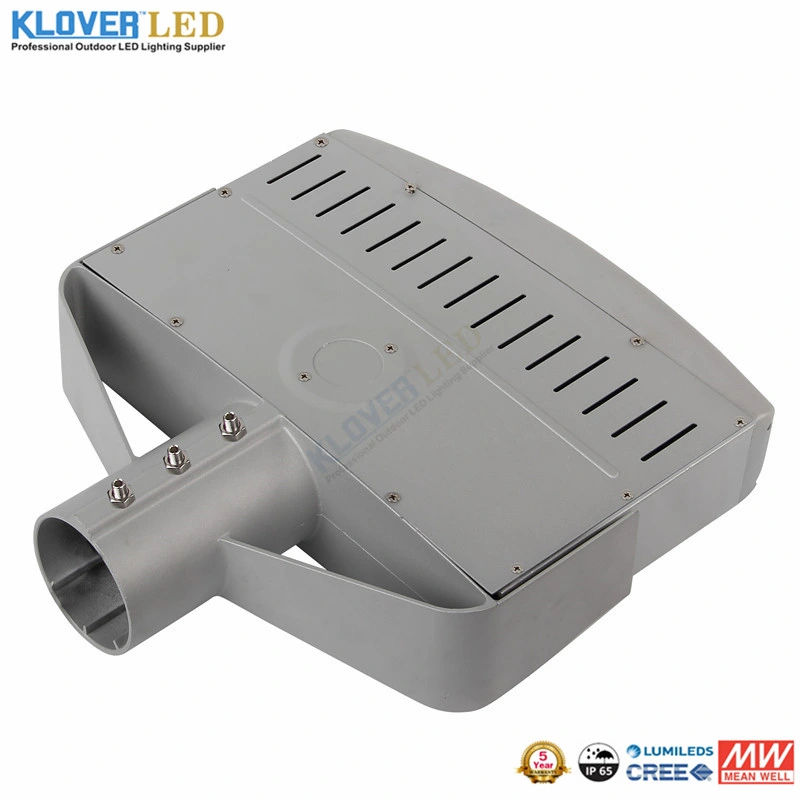

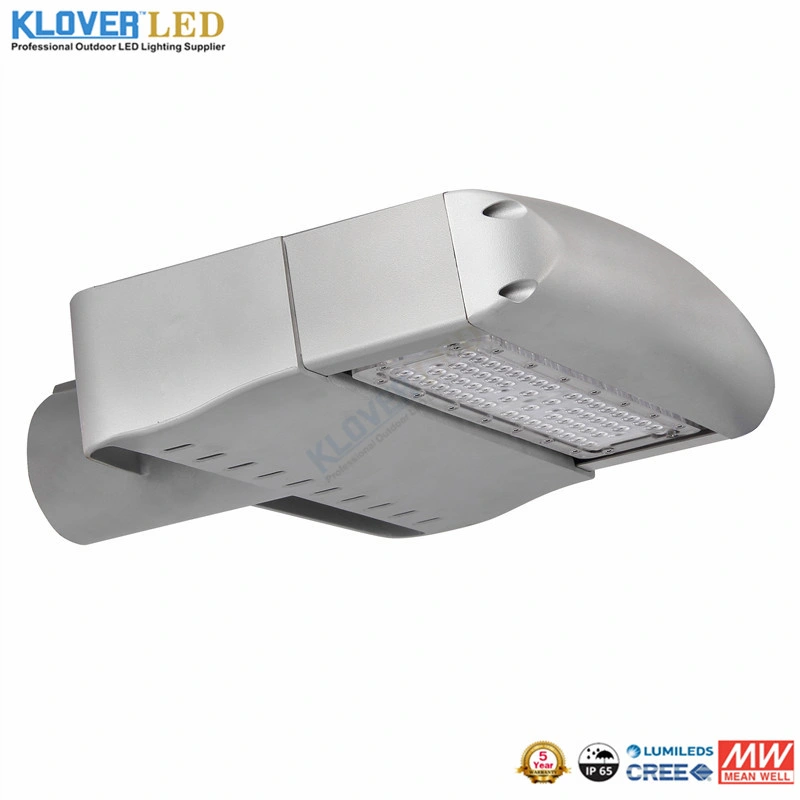

Photos for 130lm/W Street Lamp outdoor Led Street Lights Led 50W Street Lights
Specification for 130lm/W Street Lamp outdoor Led Street Lights Led 50W Street Lights
| Product Name | 50W, 100W, 150W, 200W, 250W, 300W LED Street light | |||||
| Rated Power | 50W | 100W | 150W | 200W | 250W | 300W |
| Model Number | CL-SL0473-50W | CL-SL0473-100W | CL-SL0473-150W | CL-SL0473-200W | CL-SL0473-240W | CL-SL0473-300W |
| Beam Angle | Type 3: 150*80 degree | |||||
| LED Driver | Meanwell, Phi-lips Xitanium, MOSO, Inventronics OR CB driver | |||||
| LED Chips | CREE/Philips/Osram/Bridgelu 3030 | |||||
| LED Quantity 1 | 56pcs 3030 | 112pcs 3030 | 168pcs 3030 | 224pcs 3030 | 280pcs 3030 | 336pcs 3030 |
| Electric features | AC85-308V, 50/60HZ, PF>0.95, THD<10%, Surge protection: 10KV | |||||
| Light Features | 2700-6500K optional, Ra>75, UGR<19, 120-130LM/W | |||||
| IP Rating | IP65 | |||||
| Working Temperature | -30ºC To 60ºC | |||||
| Material | Heavy aluminum alloy with PC lens | |||||
| Product size(mm) | 350*320*83 | 425*320*83 | 500*320*83 | 575*320*83 | 650*320*83 | 725*320*83 |
| Lifespan | >50,000 hours | |||||
| Warranty | 5 Years | |||||

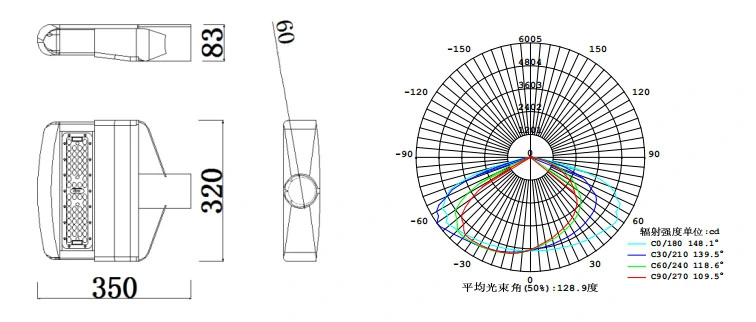

Product size for 130lm/W Street Lamp outdoor Led Street Lights Led 50W Street Lights

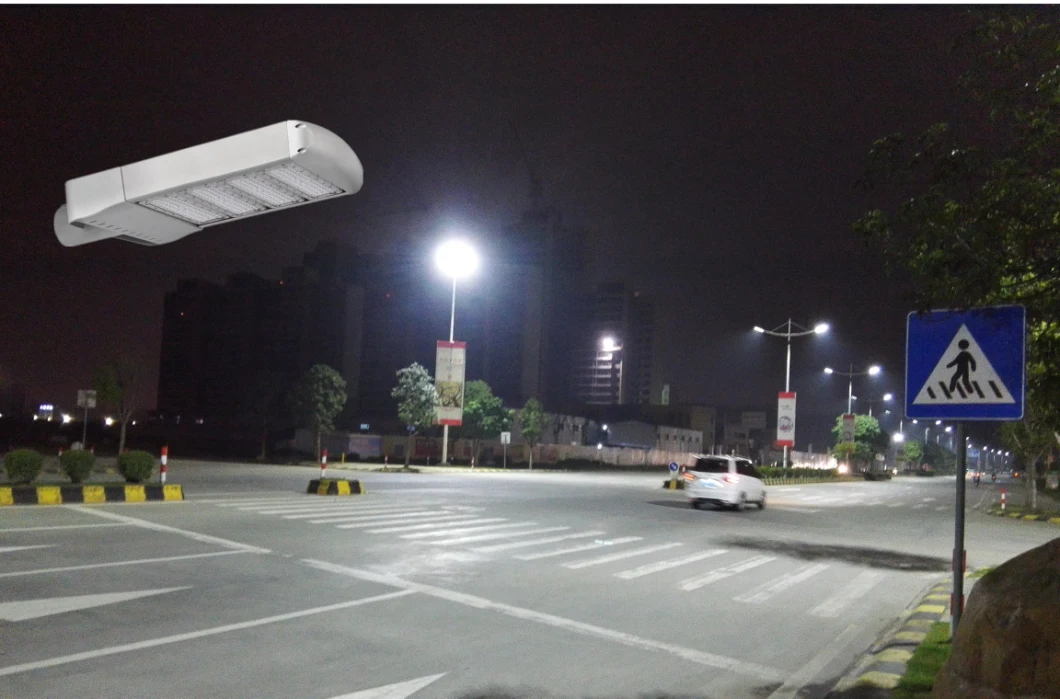

Application for 130lm/W Street Lamp outdoor Led Street Lights Led 50W Street Lights
Suggested Lamp pole height: 5-6m
Suggested Lamp pole distance/spacing: 15-25m
Suitable 1-2 carway lighting and install on both sides of the road
Suitable for garden/path/sidewalk/courtyard lighting

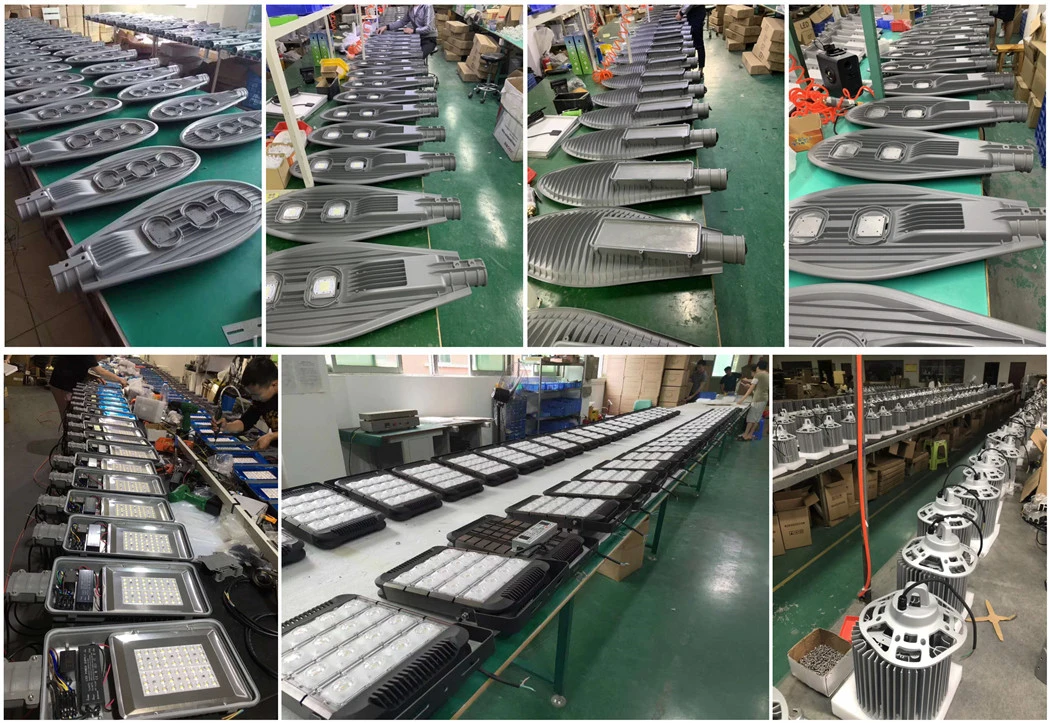

Production for the 50W LED street light

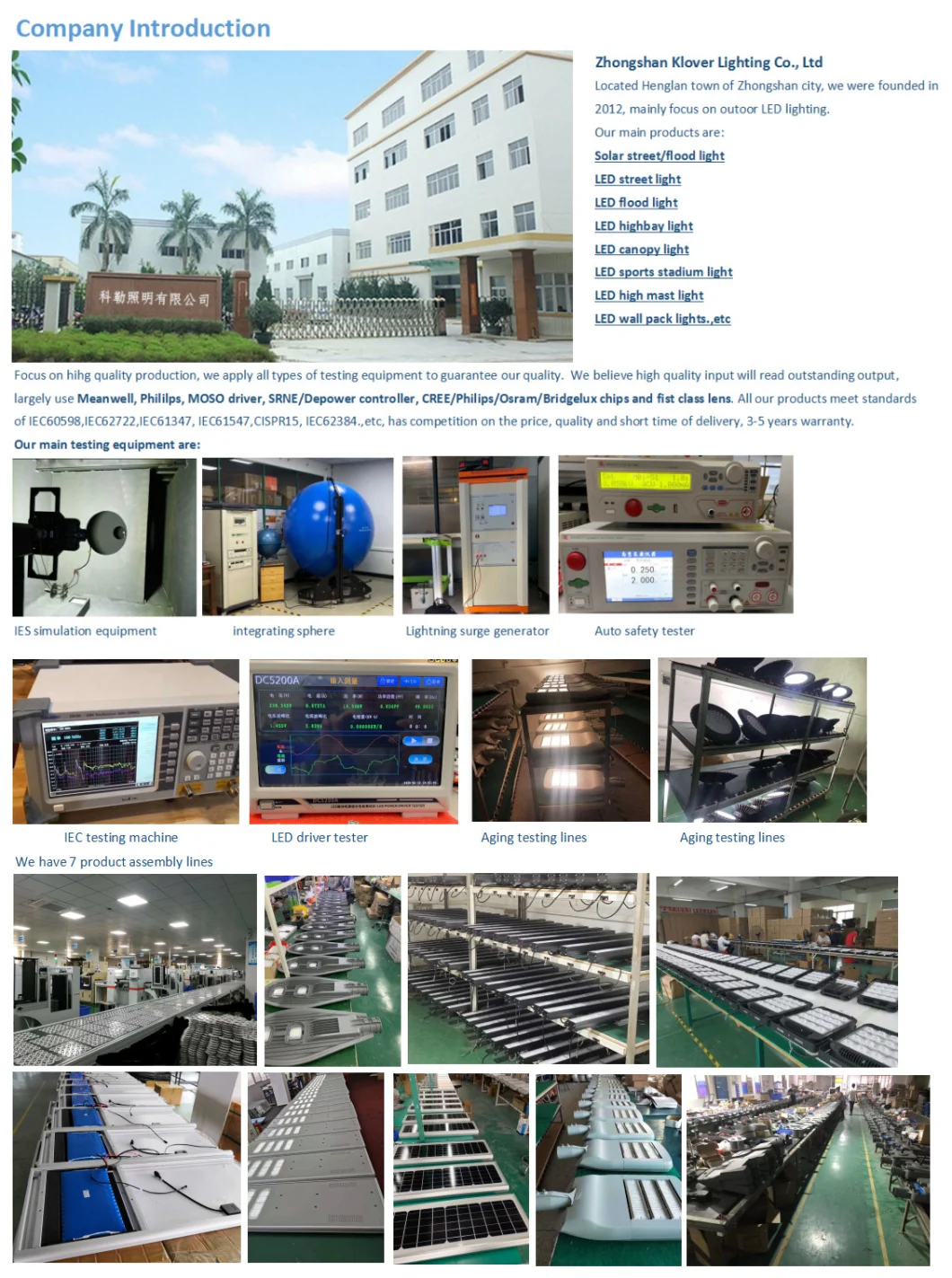

Company Profile
FAQ
Q1. Can I have a sample order for LED street light?
A: Yes, we welcome any sample orders, can mix different models to order sample.
Can test as long time as you wish, 1 year to 5 years no problem, we have full confidence on our quality.
Q2. How many years warranty of your goods? And what actions will be done if fail within the warranty time?
A: Our products are 3 to 5 years warranty since the shipping date. If any product failed, we will offer full replacement within the warranty time, or give free spare parts, according to orders.
Q3. What is your terms of payment?
A:Our regular terms is T/T 30% deposit, balance paid after production finished and before goods delivery the goods. 100% Irrevocable L/C at sight also available, we don‘t accept OA.
Q4. You are manufacturer or trading company?
A: We are manufacturer focus in outdoor LED lighting since 2012. Our main products are Solar street light, solar flood light, LED street light, LED flood light, LED highbay light, UFO highbay liGHT, LED canopy light.,etc. Welcome to visit us for any potential business cooperation, Thank you.
