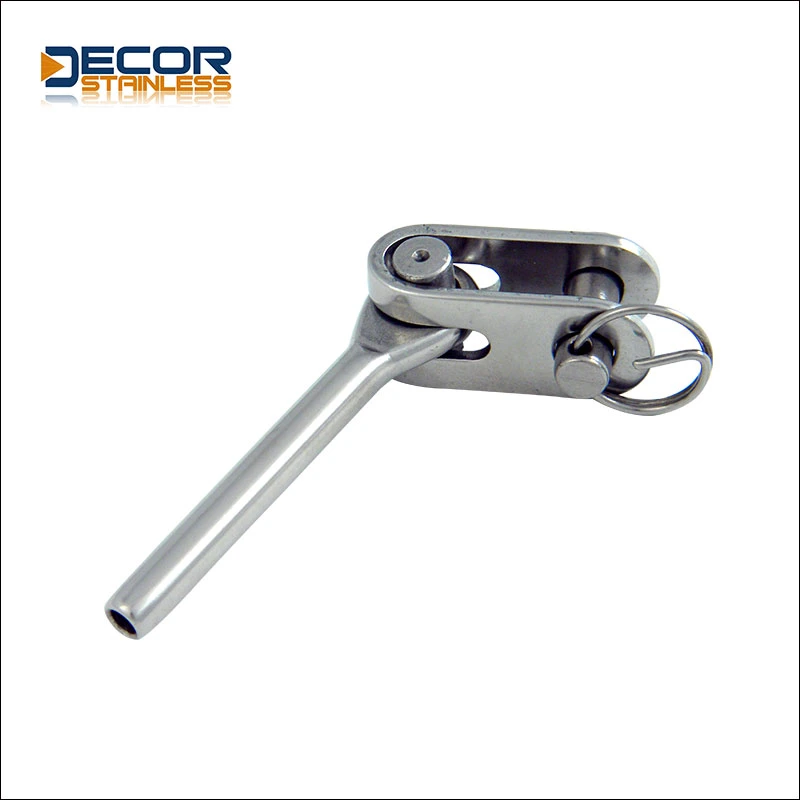

Stainless Steel Toggle Terminal
|
Product Name |
Stainless Steel Toggle Terminal |
|
Material |
stainless steel 316 or 304 |
|
Surface finish |
Highly Polished |
|
Color |
Nickel White |
|
Standard |
Metric and UNF |
|
Advantage |
Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion. |
|
Thread |
coarse, fine |
|
Used |

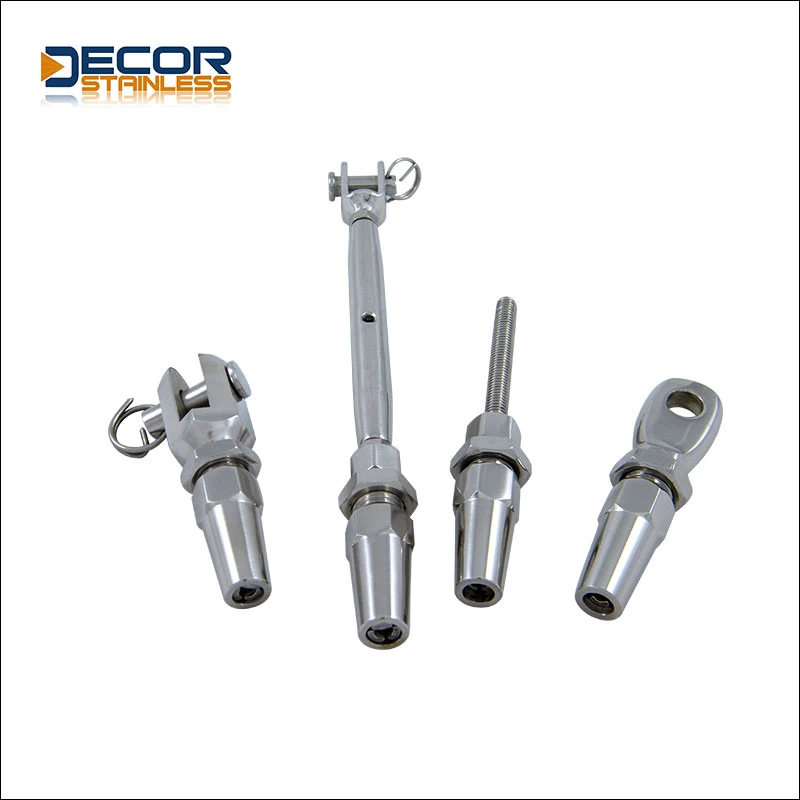

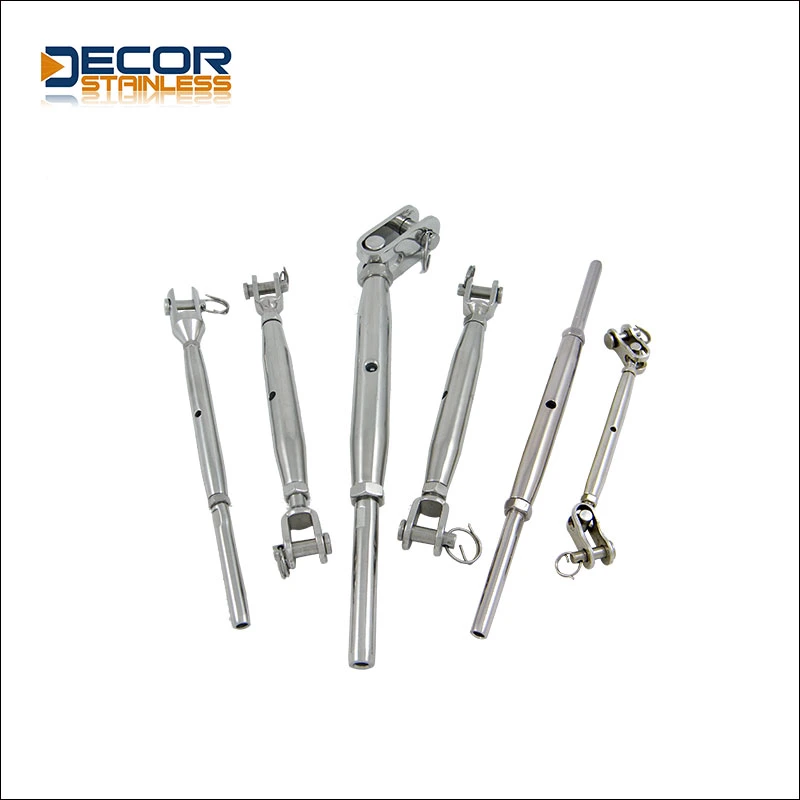

These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails. Each turnbuckle body can be mixed and matched with jaw, eye and stud ends. |
| Wire | A | D3 | D1 | D2 | L2 | L1 |
| (mm) | mm | (mm) | (mm) | (mm) | (mm) | (mm) |
| 3 | 8 | 6 | 3.3 | 6.35 | 36 | 81 |
| 4 | 10 | 8 | 4.3 | 7.5 | 39 | 94 |
| 5 | 12 | 9 | 5.3 | 9 | 50 | 116 |
| 6 | 18 | 12 | 6.4 | 12.6 | 62 | 135 |
| 7 | 18 | 12 | 7.4 | 14.2 | 68 | 157 |
| 8 | 17 | 16 | 8.4 | 16 | 85 | 170 |
| 10 | 20 | 19 | 10.5 | 18 | 90 | 192 |
| 12 | 26 | 22 | 12.6 | 20 | 105 | 240 |
| 14 | 26 | 22 | 14.7 | 25 | 140 | 277 |
| 16 | 29 | 25 | 16.9 | 28 | 160 | 313 |
| 19 | 34 | 28 | 20 | 34.5 | 200 | 399 |
| 22 | 40 | 32 | 23.2 | 40.5 | 230 | 463 |
| 26 | 44 | 36 | 27.5 | 46 | 280 | 518 |
