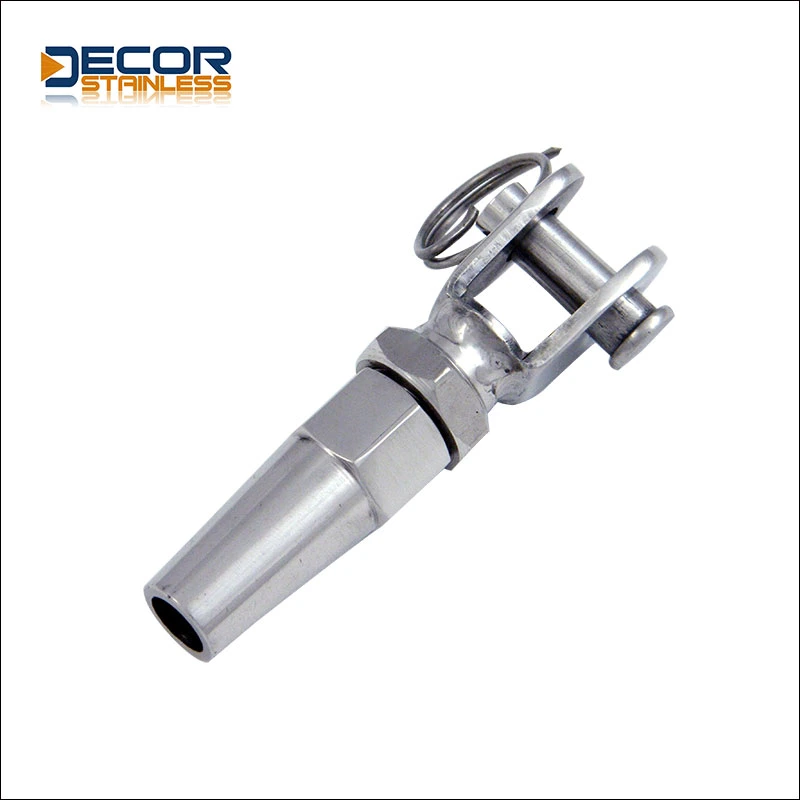

Stainless Steel Swage Fork Terminal
|
Product Name |
Stainless Steel Swage Fork Terminal |
|
Material |
stainless steel 316 or 304 |
|
Surface finish |
Highly Polished |
|
Color |
Nickel White |
|
Standard |
Metric and UNF |
|
Advantage |
Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion. |
|
Thread |
coarse, fine |
|
Used |
These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails. Each turnbuckle body can be mixed and matched with jaw, eye and stud ends. |
| Size G | A | D1 | D2 | L2 | L1 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 2 | 5.5 | 4 | 5.5 | 24 | 55 |
| 2.5 | 6.5 | 5 | 5.5 | 24 | 55 |
| 3 | 7.5 | 6 | 6.35 | 32 | 65 |
| 4 | 11 | 8 | 7.5 | 40 | 77 |
| 5 | 12 | 9 | 9 | 57 | 88 |
| 6 | 14 | 12 | 12.6 | 63 | 106 |
| 7 | 15 | 12 | 14.2 | 70 | 116 |
| 8 | 17 | 16 | 16 | 85 | 145 |
| 10 | 20 | 19 | 18 | 90 | 150 |
| 12 | 23 | 19 | 20 | 105 | 195 |
| 14 | 30 | 22 | 25 | 140 | 232 |
| 16 | 30 | 25 | 28 | 160 | 264 |
| 19 | 34 | 28 | 34.5 | 200 | 323 |
| 22 | 40 | 32 | 40.5 | 230 | 350 |
| 26 | 44 | 36 | 46 | 280 | 430 |
