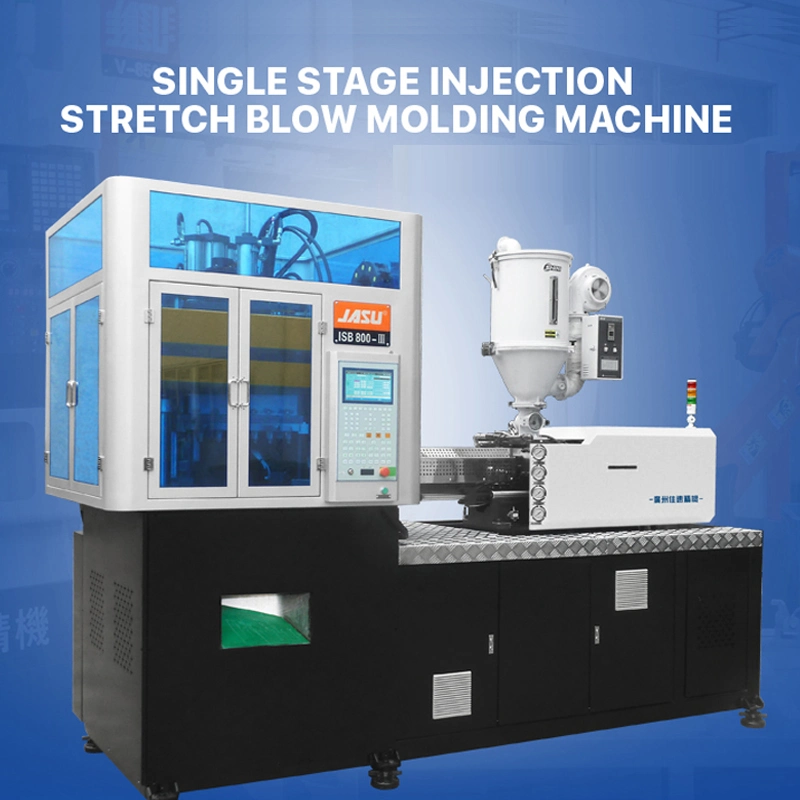

JASU Factory One Step INJECTION STRETCH BLOW MOLDING MACHINE ISB800-3
| ISB800-3 Main Specification | Main Devices Brand | ||
| Material | PC,PP,PET,TRITAN, PMMA,PS | Servo Motor and Oil Pump | Phase (Italy) and Eckerle (Germany) |
| Screw Diameter | 40mm | Sealing Parts | Yuken(Japan), TAIWAN |
| Screw L/D Ratio | 20.5:1 | Hydraulic Valve | Yuken(Japan), TAIWAN |
| Screw Speed | 0-190 | Air Valve | AirTAC |
| Theoretical Injection cavity | 238cm3 | Air Cylinder | AirTAC |
| Injection Pressure | 174Mp | Controller (PC) | JASU, TAIWAN |
| Max.hydraulic Pressure | 140kg/cm | Photosensor | Carlo,China |
| The actual injection quantity | 225g(ps),8Oz | Safety delay | Schneider (ShangHai |
| Screw Stroke | 190mm | Servo Motor for Turntable | TECO, Taiwan |
| Blow Clamping Force | 80kn | Gear Reducer | SESAME, Taiwan |
| Clamp Tonnage | 400kn | Low-voltage components | Joint Venture |
| Wheel Diameter | 800mm | Hydraulic hose | China |
| Max.Height Of Bottle | 15-150mm | F.R.L | China |
| Open Vertical Mode Trip | 430mm | Hydraulic joint | China |
| Max.Pump Pressure | 16Mpa | Blowing valve | AirTAC(TaiWan) |
| Servo Motor | 22kw | Low-pressure cylinder | AirTAC(TaiWan) |
| Electric power | 8.9kw | low-pressure valve | AirTAC(TaiWan) |
| Tank volume | 400L | PLC | JASU(TaiWan |
| Dimension of Machine | 3.8*1.45*3.0m | Air switch | Schneider(Shanghai) |
| Machine Weight | 5T | Display screen | JASU(TaiWan) |
JASU injection blow molding machine advantage:
1)Electrical motor and pneumatic drive,avoid hydraulic dirty product.
2) Full automatic control ,easy operation.
3) material barrel and hot runner temperature control accurately.
4) save more cost than traditional machine.
5) compact structure.
6) Injection:
Hot runner and temperature control device and standard configuration only change mold to make a new product.
Blow:
Hydraulic mold clamping,core insert,blow and bottom molding are standard configuration.
Product release :Ejector is a standard device

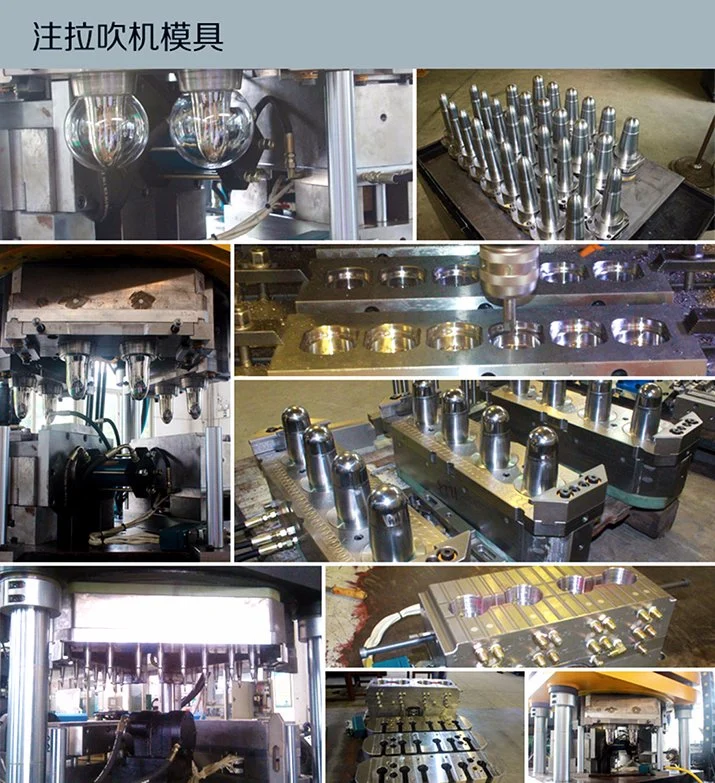

Jasu injection stretch blowing mould
Gauangzhou Jasu Precision Machinery Co.Ltd is a sabusidiary of JASU International Machinery Group locates in Guangzhou China, which is top 3 supplier of CNC machine tools in South China. JASU owns R&D center and factories in Guangzhou and Suzhou. JASU has been dedicated to manufacturing CNC lathe, machining center, Gantry CNC milling machine and machine tool accessories for 20 years.
Absorbing the design and manufacture of Taiwan and Germany, JASU create a series of highly distinctive, automatic and
cost-effective CNC Machine Tools, machine accessory and one step Injection (Stretch) Blow Molding Machine. JASU has got
high reputation and trust among customers by means of modern management method, perfect quality, novel design and
reasonable price.
Our company faith is “better and faster, it is JASU”. We are engaged in providing machines with high quality and best service
to create benefit for enterprise and create value for customer.
JASU group
http://membercenter.made-in-china.com/showroommanage.do?xcase=index
FAQ
Q1: What is the ability of your factory?
A1: About blow molding machine, we could produce 30 sets machine per month.
Q2: Do you have any technical supports about your products?
A2: We have had long term collaboration with German, and we have a lot of cooperation with a lot of advanced manufacture company on the world.
Q3: Do you have any other service about your products?
A3:We have a lot of experience on making complete “Turn-Key” projects and specifications for our clients. Also we have a fixed service system
Q4: All of your products are made by your self or compacted via purchasing the others?
A4: We have independent technical team who focus on making machines; all the products are made by our technical team.
