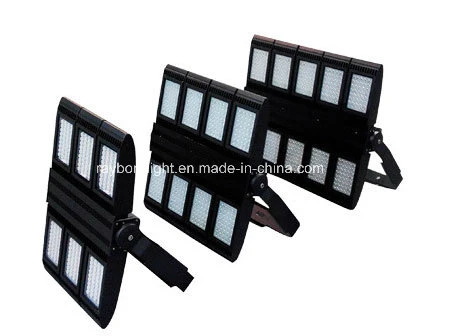

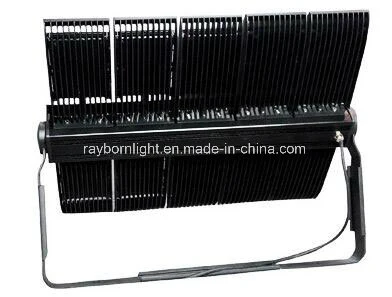

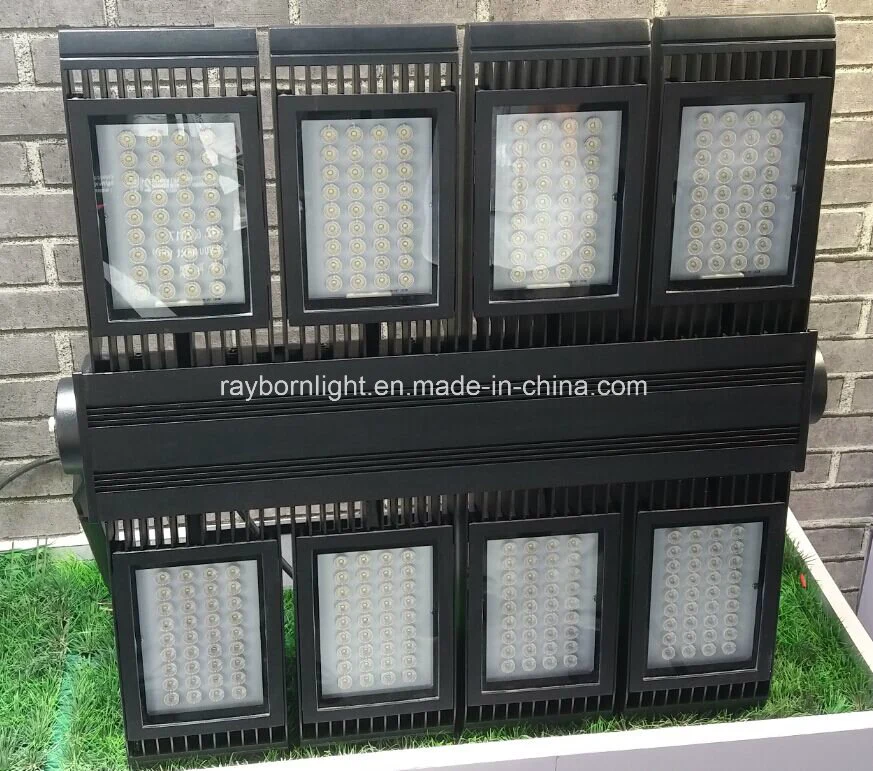

Professional Waterproof IP66 600W Sports Ground LED Football Field Lighting
Product Specifications:
High Power Outdoor LED Flood Light/Industrial LED Lighting (10-1000W)
| 540W LED Floodlight Main Technical Parameters | |||
| Item No.: | RB-FLL675-540W | ||
| Input Voltage: | AC 90-305V | ||
| Freqency Range: | 50Hz~60Hz | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >95% | ||
| LED Power | 540W | ||
| Lamp Driver` | Meanwell HLG | ||
| LED Chip | SMD3030/SMD5050 | ||
| LED Luminous Efficiency | 140LM/W | ||
| System Consumption: | 565W | ||
| Luminous Flux | 75600LM | ||
| Viewing Angle: | 10/30/60/120/85*135/65*135 | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 4000K~5000K | ||
| Cool White | 5000K~6000K | ||
| Color Rendering Index | Ra>80 | ||
| Light Distribution: | LED points visible | ||
| LED Junction Temperature: | ≤115ºC | ||
| Working Temperature: | -30ºC~55ºC | ||
| IP Grade: | IP66 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 m three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| N.W.: (KG) | 22KG | ||
High Power LED Flood Light Main Feature
1.LED: 130-140lm/w Lumileds LED Chips
2.Power supply: Meanwell HLG
3.Material: powder coated die cast aluminum.
4.High light transmittance plastic lens for each leds,lamp luminous flux can
reach 130-140lm/w.
5.Internal power supply design,make the flood light safer for operation
6.Adjustable bracket equipped with three different fastening points,which
enable the installation of the fitting in each position needed.
7.10/30/60/120/63*135/85*135 deg beam angle optional,different application are
fulfilled in one simple design,which can direct the light to the exact area
needed,no light pollution.It’s especially suitable for stadium and sports
field.
8.Maintence free during it’s lifespan.
9.80-90% energy efficient compared with conventional lights
10.color of body: silver/gray/black.
11.IP Rating : IP66

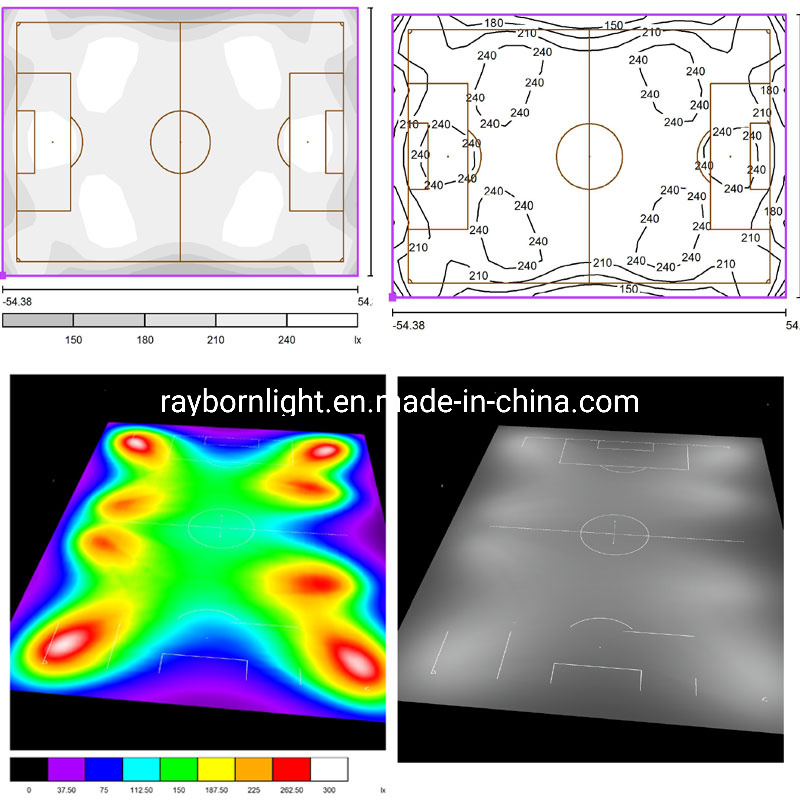

Professional simulation of Stadium LED Flood light :
Outdoor LED Flood light Applications :
1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.

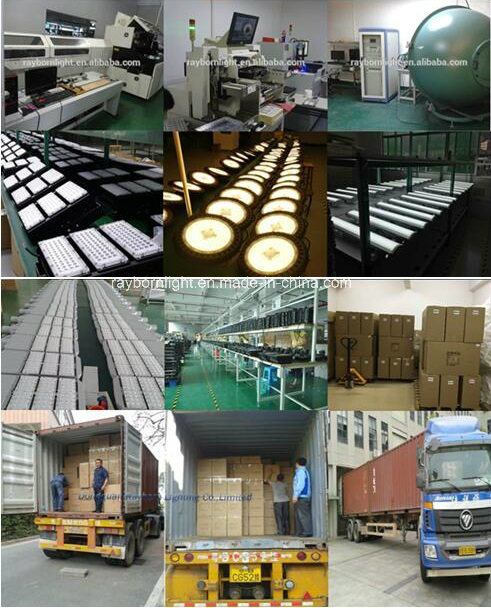

LED Flood light more than 24hours aging test :

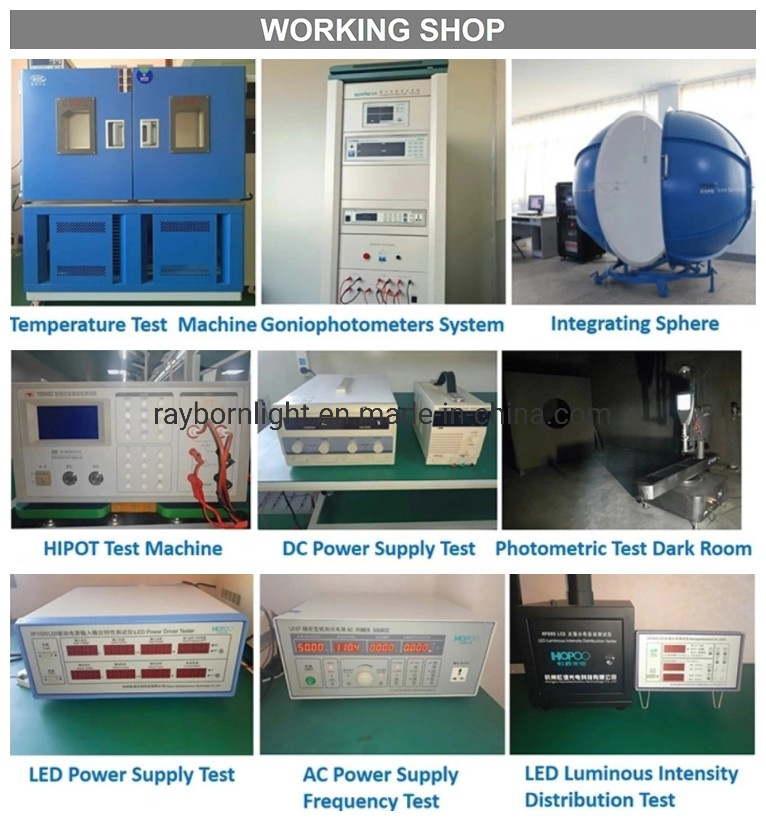

Before shipping, all the LED flood lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , highVoltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.
Company Information:
Rayborn Lighting Co.,Ltd is a professional manufacturer ,focus on Industrial LED lights and commerical LED lights research ,devolopment ,production,sales ,on service,was in High-end operation and service provider in High-power led .Under the country “saving “polics,we are striving to create environment protection ,energy saving ,long life lighting and earned a reputation of being a quality supplier of LED lighting .
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
Our Good Service :
1. Your inquirey related to our products or price will be replied within 24 hours
2. All your inquireies will be well explained by our experienced staff
3. OEM&ODM, also provide customized service
4. Distributor ship is available for your unique design and some our current models
5. We will keep secret for customer sale area, design ideas and all other private information
Payment Terms and Delivery Time:
1. T/T 30% deposit and the balance paid completely before the delivery.
2. Lead time for 50~500pcs: 5-7days, 500~1000pcs: 7-15days. Samples 3 working days after getting the payment.
3. Shipment: DHL, UPS, EMS, Fedex, by air or by sea.
FAQ:
1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service
2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable
4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
5. I don’t know how many Led Flood Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
