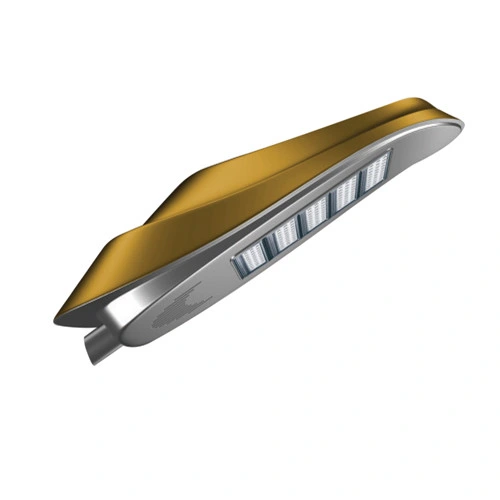

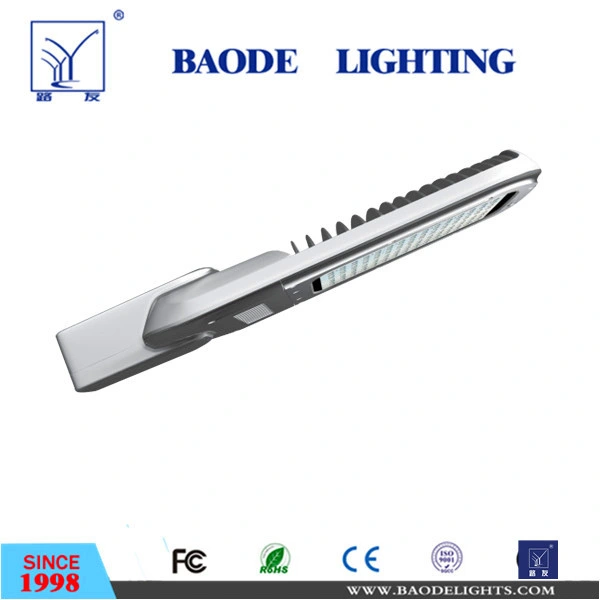

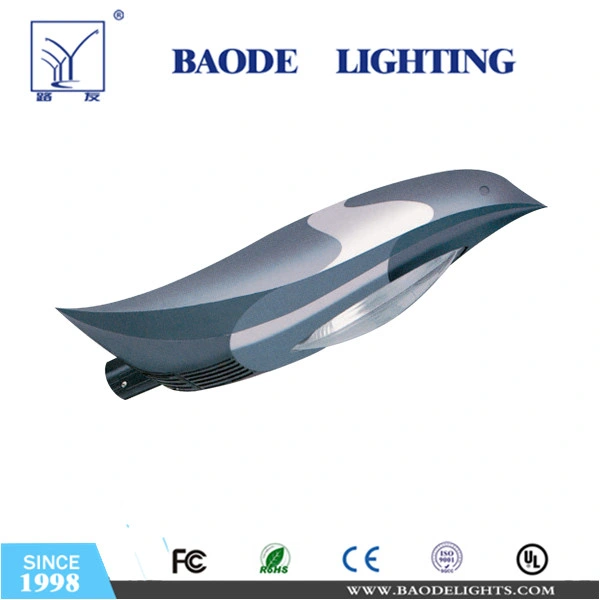

30-150W for Outdoor LED Lamp Lighting Using LED Street Light
We Are Manufacturer:
We manufacture led street lighting from 10W-280W since 1998
We manufacture street lighting poles from 3M-12M for LED lighting
We are capable to produce 10000 LED street lights per month
MW driver 30W 60W 90W LED Street Lighting prices of street light LED 100W 120W 150W
Power: 30W-60W, 70W-200W LED street lighting
Pole height: 5M, 6M, 8M, 9M, 10M, 12M
Other light sources: MH lamp, HPS lamp, HID lamp available
LED Driver: MW driver Street Light LED
LED Brand: CREE/BRIDGELUX LED street lighting
| Features of our LED Street Lighting |
| 1. High Power, high lumen, high quality |
| 2. Save 80% more energy compared with traditional lighting fixtures |
| 3. Easy to install and use, secure and reliable |
| 4. No UV or RF interference, No mercury or lead |
| 5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation |
| 6. High quality, high efficiency, high CRI & luminous flux, |
| 7. long life span>50000hrs |
| 8. High brightness, low consumption, green for environment |
| 9. PMAM lens, 120°for your choice |
| 10. Built-in LED driver with IC ensure stability of light, it can work efficiently under |
| 11. AC85-265V in different countries and regions.AC12/24V led driver is also available |
| 12. Potection grade is IP65 |
Specifications
led street lighting Power Options:30W, 40W, 50W, 60W, 70W, 80W, 90W, 100W,
| Brand | LUYOU |
| Model | luyou Series |
| Material | aluminium |
| LED power | 50W |
| LED number | 1pcs COB |
| LED chip | Epistar/Bridgelux / Cree |
| Lamp Luminous Efficiency | 10500-11000lm |
| Driver | Meanwell/ Feilong |
| Voltage | AC90-260V |
| Frequency | 50/60HZ |
| Beam Angle | 60-120 degree |
| Color tempature | 3000-7000K |
| Protection index | IP65 |
| Lifespan | over 50000hrs |
| Working temperature | -20~+60 degree centigrade |
| Power factor | 0.95 |
| CRI (Ra>) | more than 80 |
| Certification | BV, CCC, CE, EMC, FCC, RoHS |
| Warranty | 3 years |
| Size | 500*210*90mm |
| Net weight | 12kgs |
| Advantage | green energy , low consumption,design for environment |
| Application | Road ,path,anvenue ,square… |

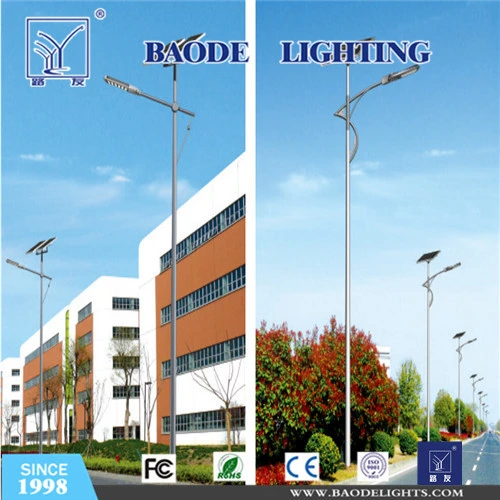

Solar street lights specifications:
|
System No. |
AN-SSL-60w/220w/8m |
|
LED Lamp |
60W DC24V; superbright Bridgelux 45mil led chips; IP66 guard level, aluminum housing, 50,000hrs lifespan. |
|
Solar Panel |
2pcsx110W 17.5V, high-efficiency crystalline PV module; 20 years continuous power output guarantee |
|
Controller |
12V/24V auto-sensing, 10A;light/time intelligent control; IP68 waterproof type |
|
Battery |
2pcsx12V100AH, solar special use valve-regulated fully sealed lead-acid battery; 5-6 years lifespan |
|
Battery Box |
PVC material, underground-buried type, waterproof and heat-dissipative design; including PVC cable tube |
|
Pole Set |
8m high, Q235 steel grade; hot-dip galvanized and spray coated treatment, including solar panel bracket, lamp arm and base plate |
|
Cable |
RVV2*4, international standard, 2m/set |
|
Suggestion |
This configuration is recommended for road within 16m width |
Solar street lights features:
1. Above system configurations are designed to allow the lamp to work for 10hrs per night, battery capacity with continuous 3 days backup. The configuration is based on scientific calculation and engineering project experience. For clients’ specific project, please tell us the exact installation location and working hours, so that we can provide customized solution and quotation accordingly.
2. The batteries are suggested to be placed in a underground buried PVC battery box. In this way, it can avoid overhigh temperature due to sunshine exposure or too cold weather in Winter. It’s wateproofand, heat-dissipative and theftproof, easy for replacement in late period.
3. The pole patterns are standardized practical model recommended by us. It can be customized with more patterns available according to clients specific requirement.
4. All Parts are CE/ROHS certified, with high quality level meeting European standards.
5. Please contact us for more detailed technical specification of each part of the system, which can be sent upon client’s email request.
Applications
| LED Street Lighting | LED Road Lighting |
| LED Driving way Lighting | LED Highway Lighting |
| LED Parking Lot Lighting | LED Freeway Lighting |
| LED Avenue Lighting | LED Retrofit Lighting |
| LED Park Light | LED Gate Light |
Company Information
21 Years Manufacturing Experience
Since 1998, we have started manufacturing street lighting. The 21 years’ experiences have been a persuasive insurance for us to offer reliable products.

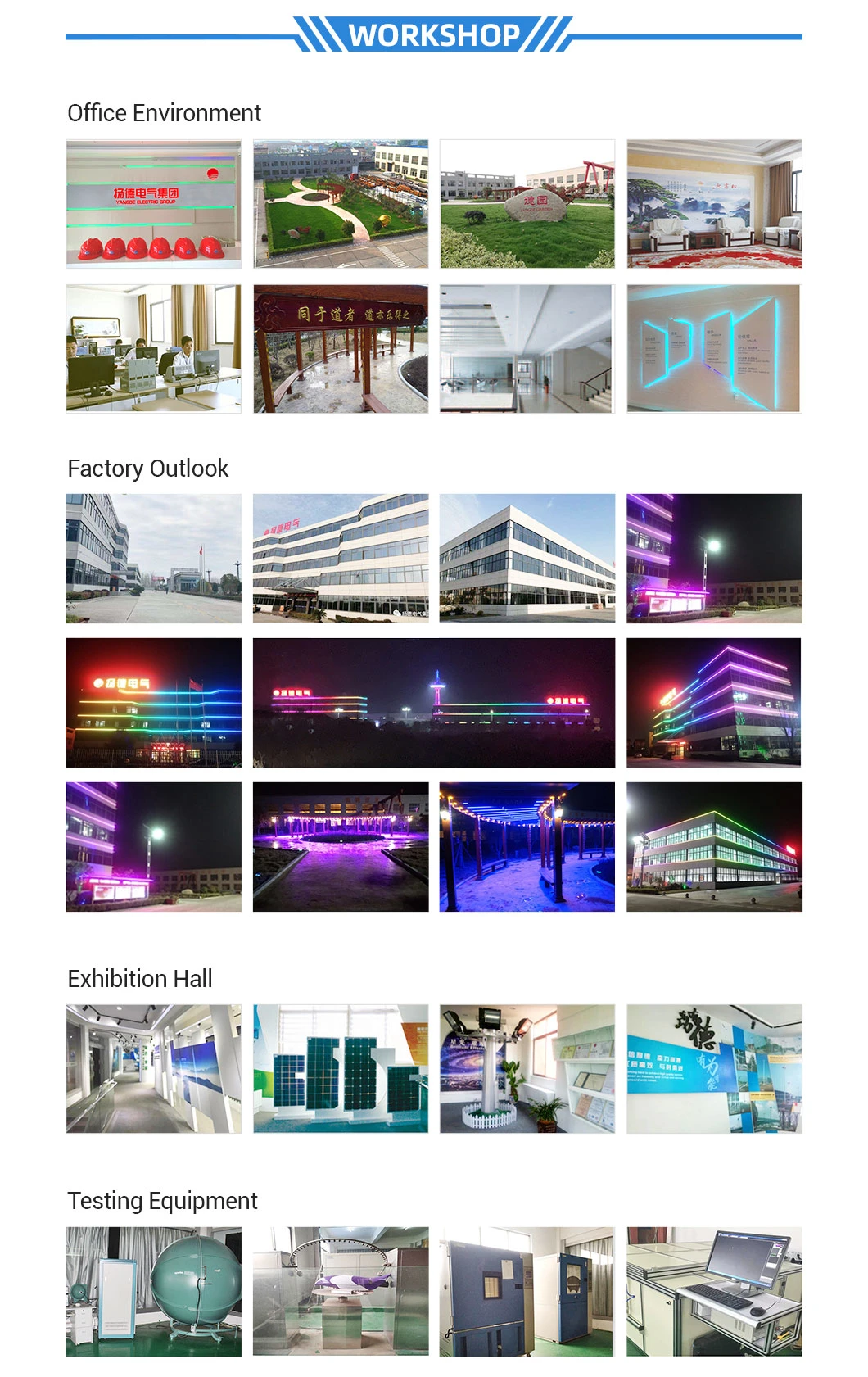

Large Factory with Complete Facility

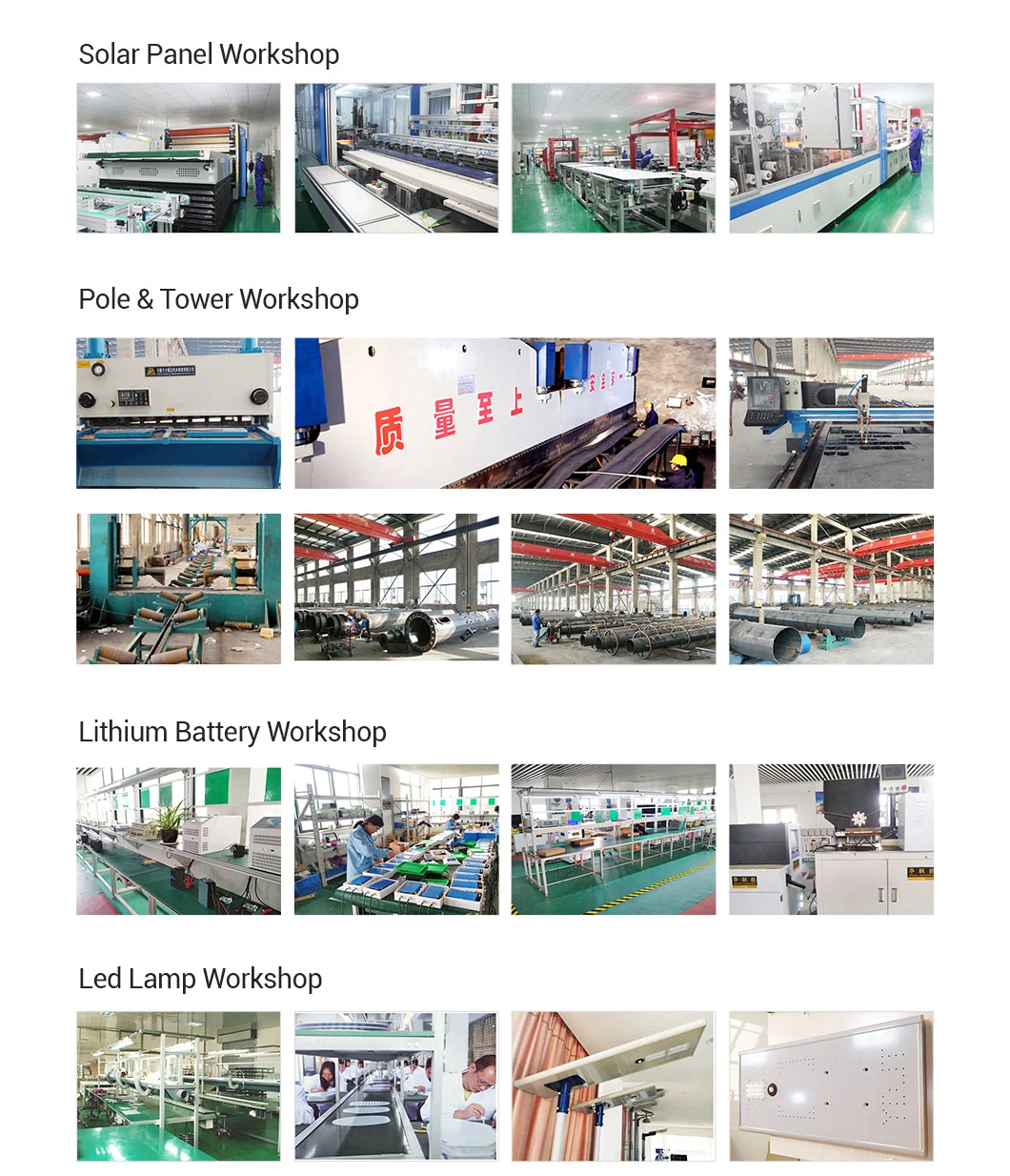

We have 400 staffs with factory area 6000 m2. We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .
Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.
Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
Factory outlet. There’s no middleman between the manufacturer BAODE and domestic and oversea buyers.
