9W/18W/27W R/G/B/W/Y/RGB Dry Deck Fountain lights
1.Housing:Stainless steel mould shaped body(S.S304# or S.S316);
2.Cover:Stainless steel cover 304 stainless steel or 316L stainless steel;
3.Stainless steel base(tripod);
4.Light source:9X1W,9X2W,9X3W,( 9X1W,9X2W,9X3W RGB 3 in 1 )
5.Tricolor LED 3pcs;
6. 10mm tempered glass;
7.Waterproof Cable gland:IP68,PG-9 Copper and nickel coated,End-cap and housing are silicone sealed;
8.IP68, CE,RoHS;
9.product size: As bellow drawing
10.Input Voltage:12/24V DC;
11.MPCB: Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0W/mk;
12.Waterproof seal:glass and housing are silicone sealed;
13.Operating temperature:-10~+40centigrade.
Product Specification:
| Model Number | 94091 | |||||
| Product Size | ¢170X61mm | |||||
| Total Power | 9x1w,9x2w,9x3w; 9x1w,9x2w,9x3w RGB 3 in 1 | |||||
| Input Voltage | DC12V/DC24V | |||||
| Beam Angle | 8°/15°/25°/ 30°/45°/ 60°/90° | |||||
| Emitting Color | White,Nature White, Warm White,Red, Green, Blue,RGB | |||||
| Front cover and Housing | 304 Stainless steel or 316L Stainless steel +10mm Tempered Glass | |||||
| Led chip | Cree/Bridgelux/Edison | |||||
| Power Cable | 2 meters | |||||
| Working Lifetime | >50,000Hrs | |||||
| IP Rating | IP68 | |||||
| Operating temperature | -20ºC~ 40ºC | |||||
| Certification | CE,RoHS | |||||
| Outer Carton Size (cm) | L | W | H | G.W./CTN | ||
| 38 | 21 | 19 | 8.5kgs (4pcs/CTN) | |||

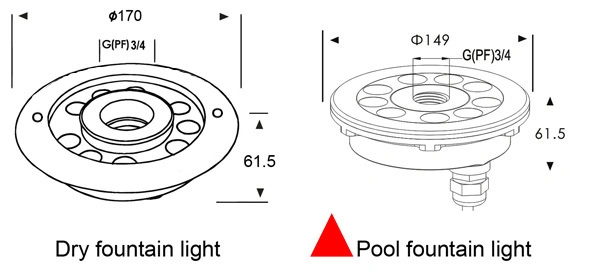

Drawing(size)& installation diagram:

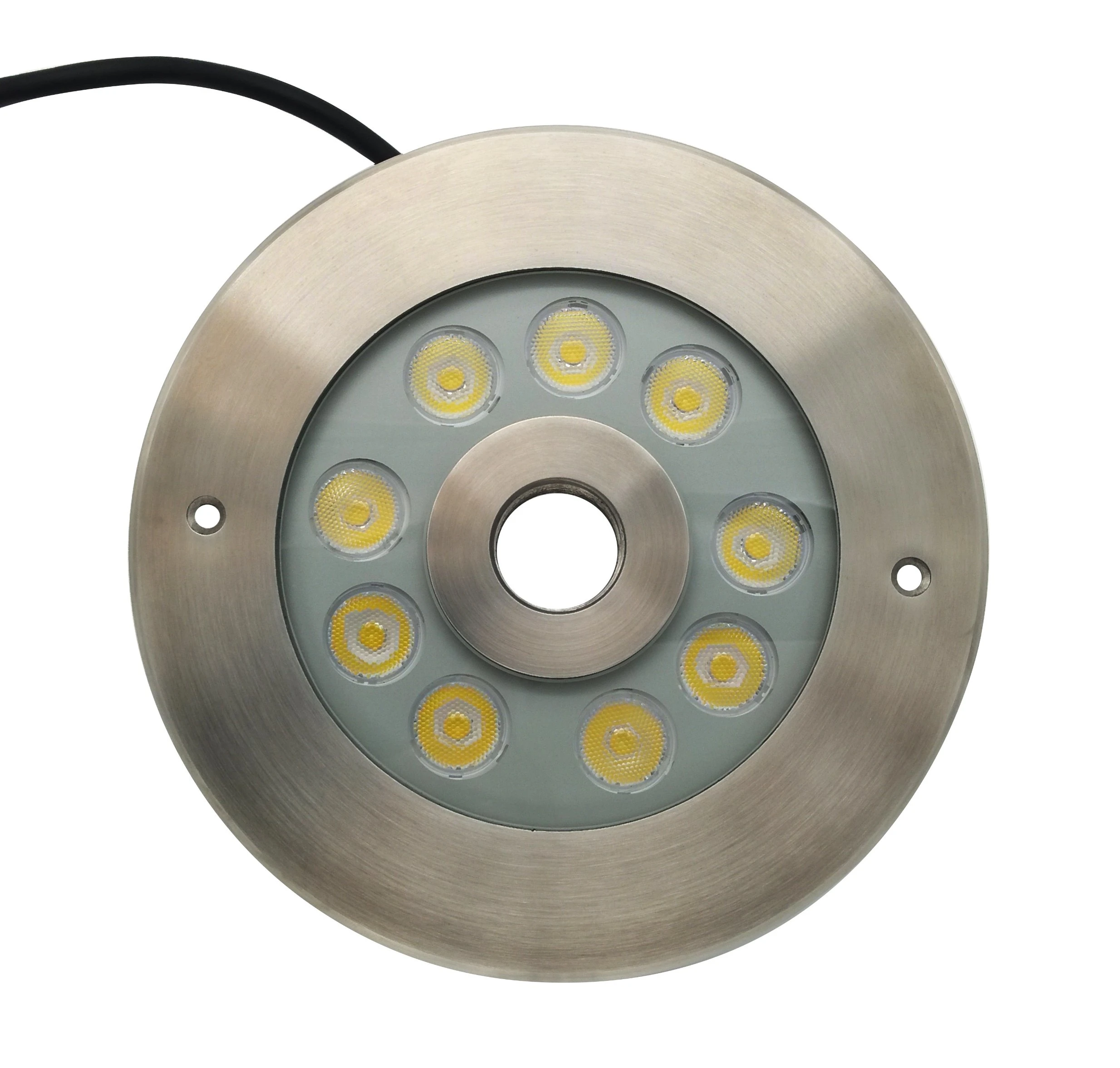

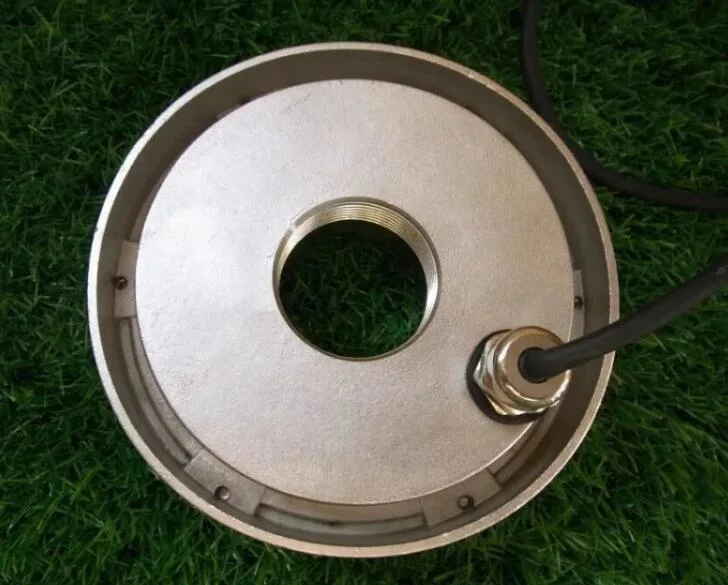

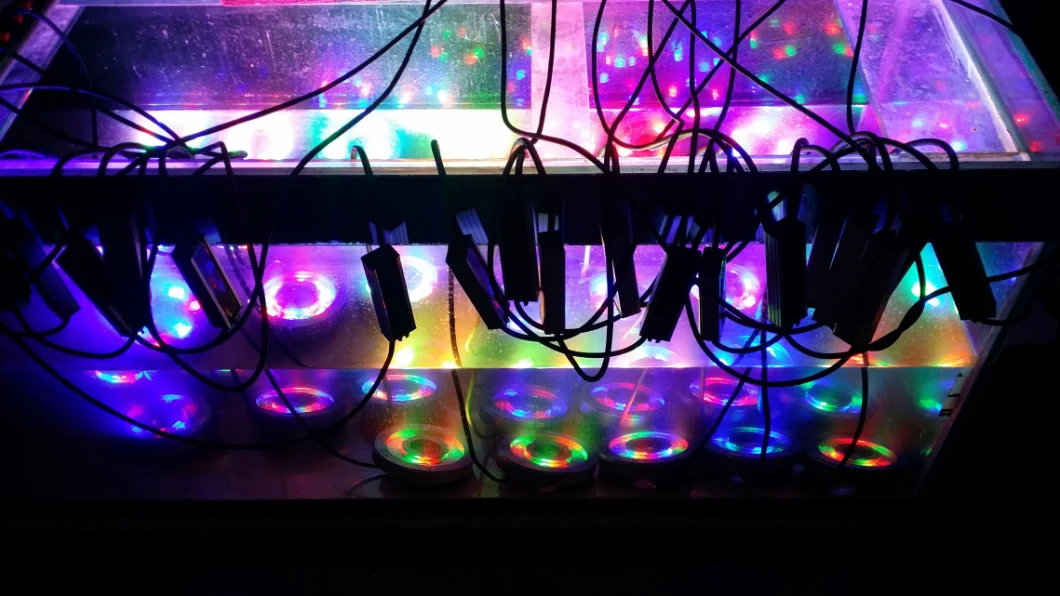

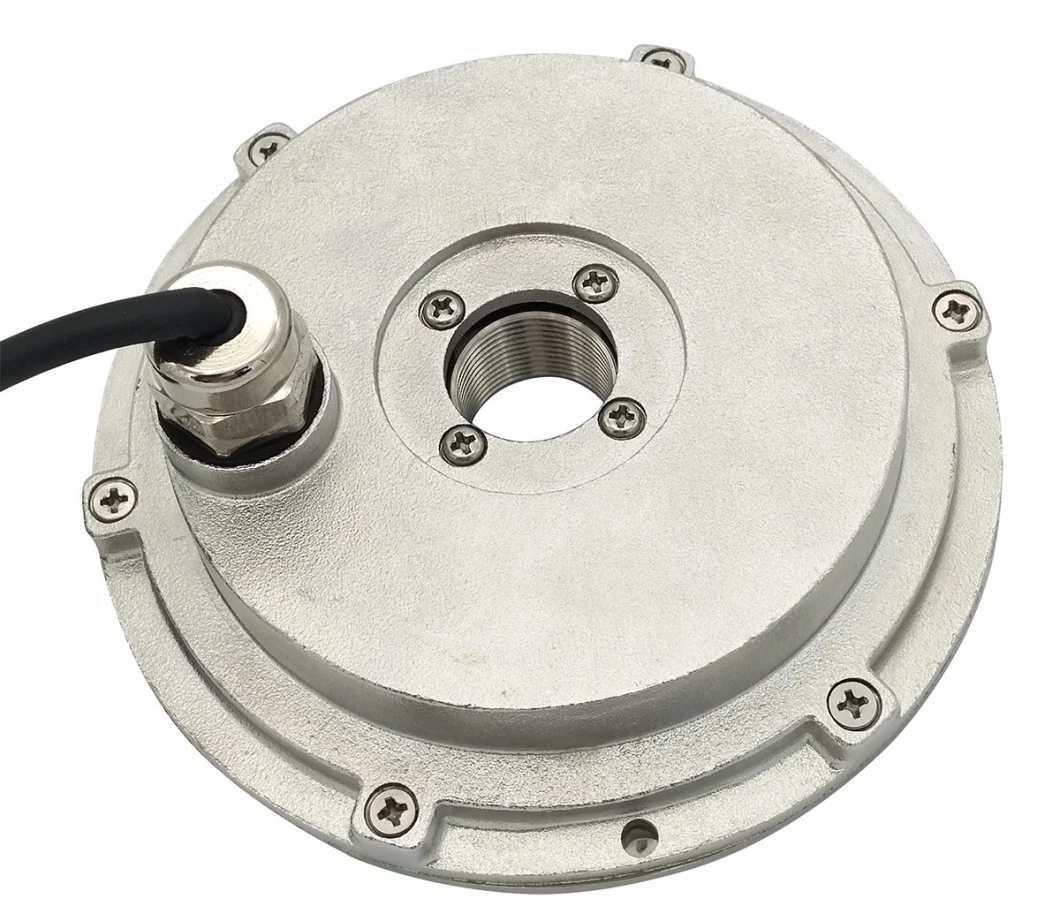

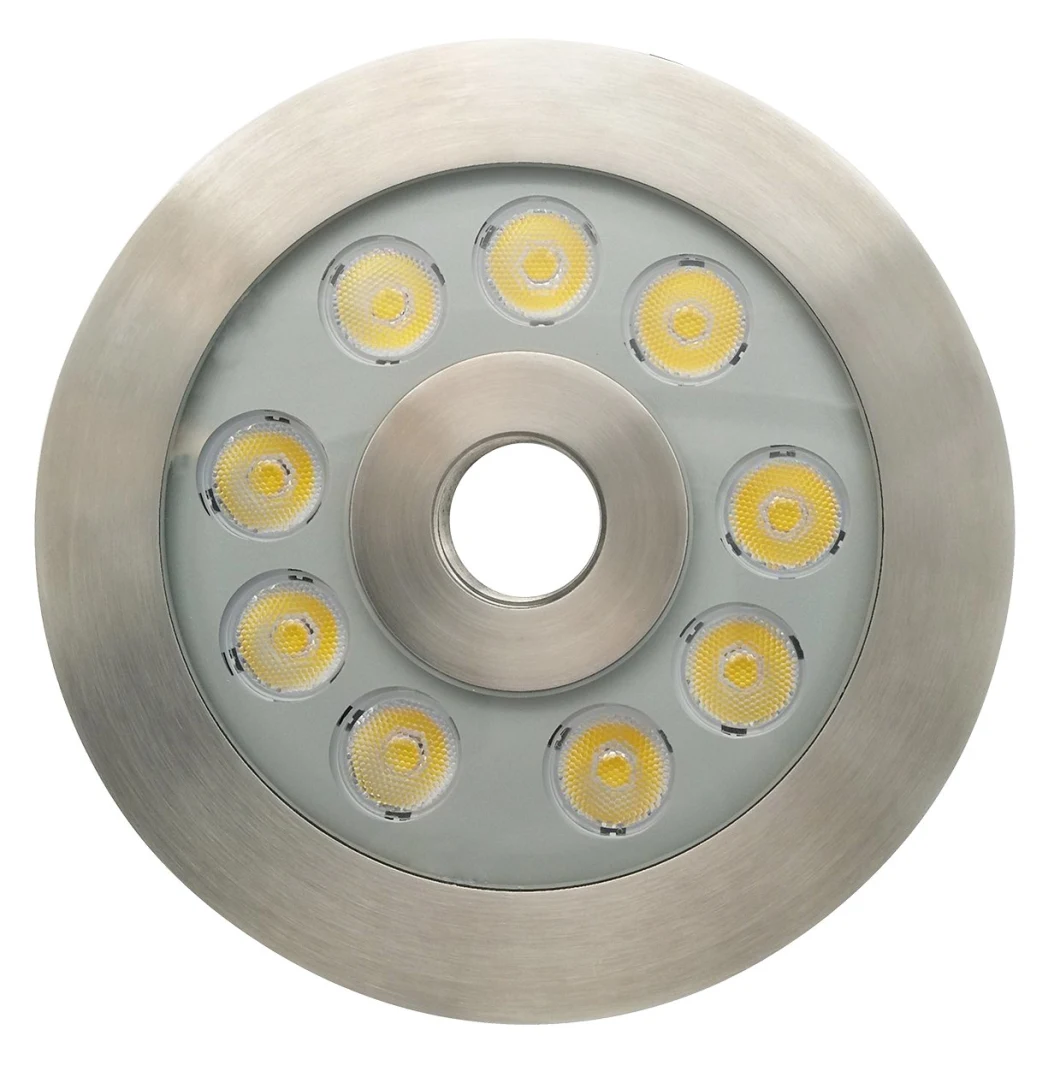

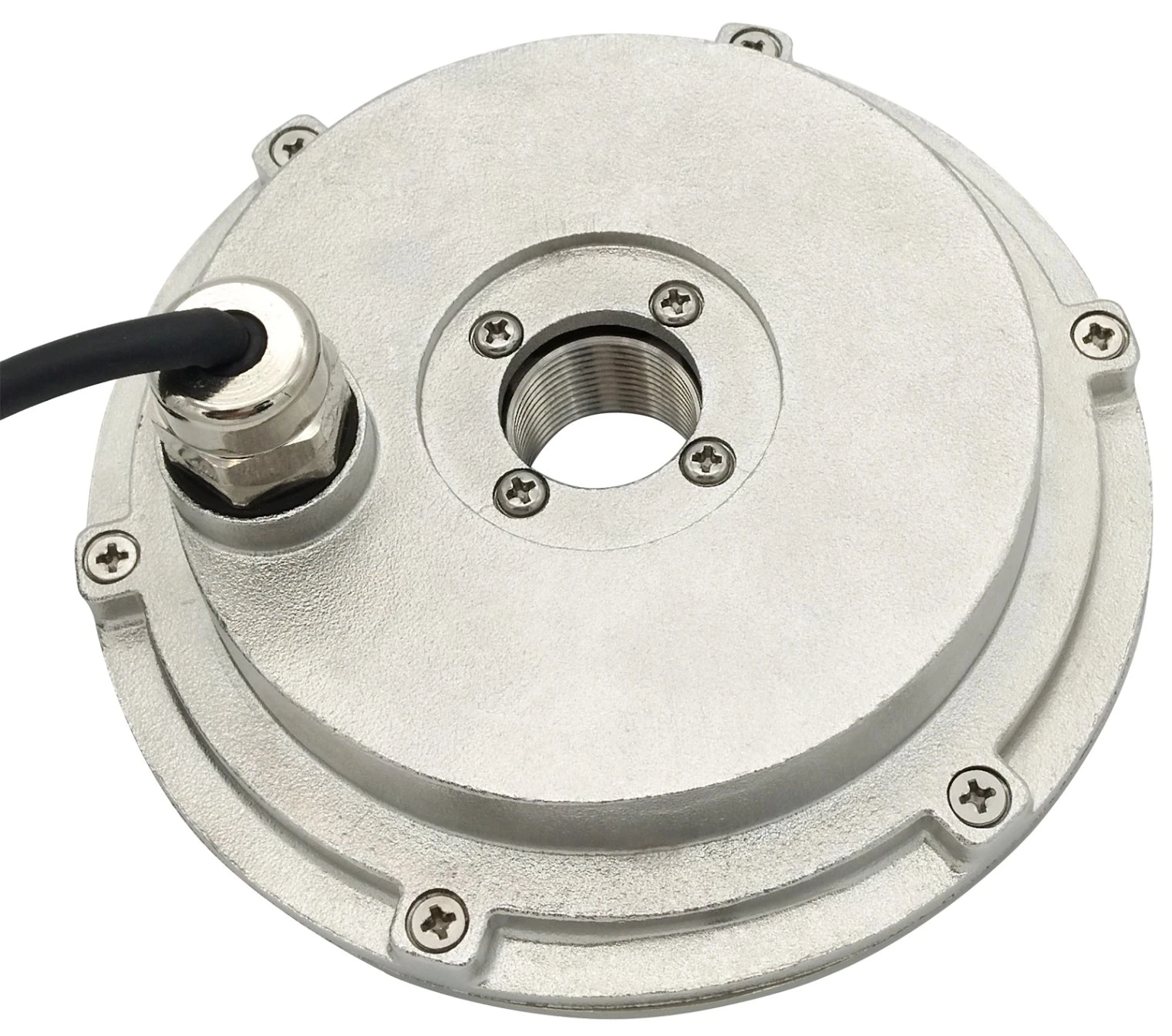

Product Photo:

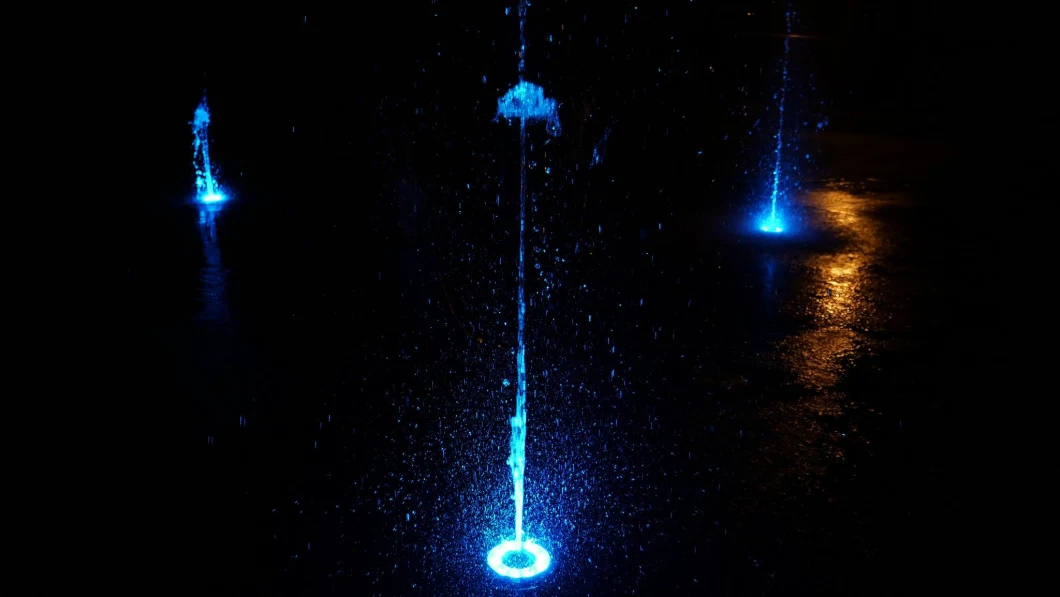

Application:
World-Wide Customers:
Our Service:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
