LED industrial commercial lighting 720W LED flood light for playground lightingProduct name: 7200W LED flood light
120W/240W/360W/480W/720W/960W/1200W/1500W optional
LED chips: CREE/Osram/Bridgelux SMD3030, SMD5050 optional.
LED light source: Maximum 220lm/w
Luminaire efficiency: 140-150lm/w for 3030 chips, 150-160lm/w for 5050 chips
LENS: >93% light transmission, less light loose
LED driver: Meanwell/MOSO/Inventronics/Sosen/CB driver optioanal
CB driver: AC85-308V 50/60HZ, no flashing, 10KV surge protection, THD<10%, PF>0.95, 5 years warranty, very cost effective
Material: Punched high purity fin aluminum alloy
Beam angle: 20/40/60/90/140*100 degree optional
Advantages:
1. Muli-fin design heat sink, quick cool down LED chips temperature.
2. Each module can be adjusted
IP rating: IP65
Application: building, airport, sea port, square, stadium, large area lighting.
Warranty: 5 years

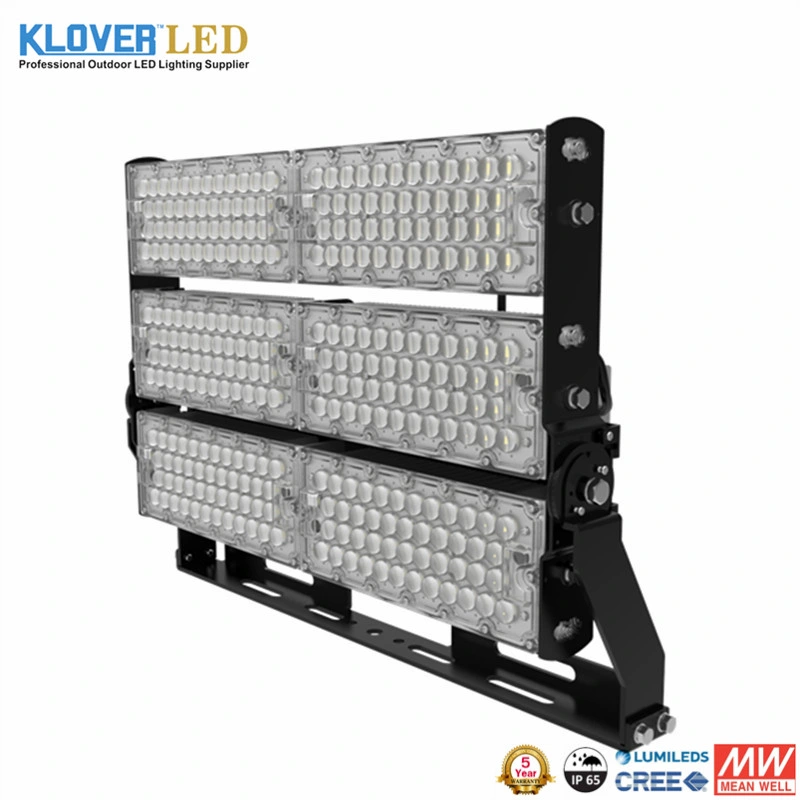

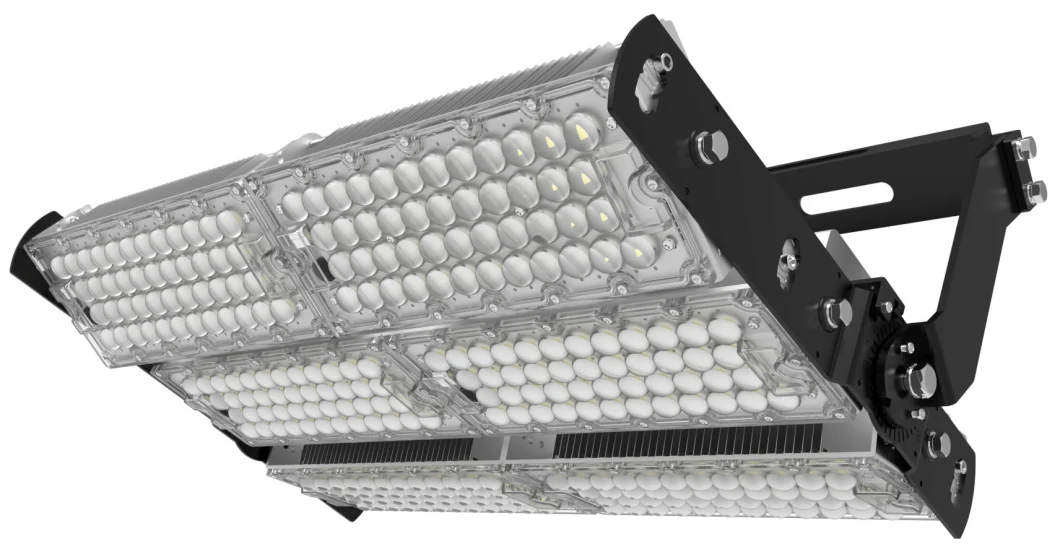

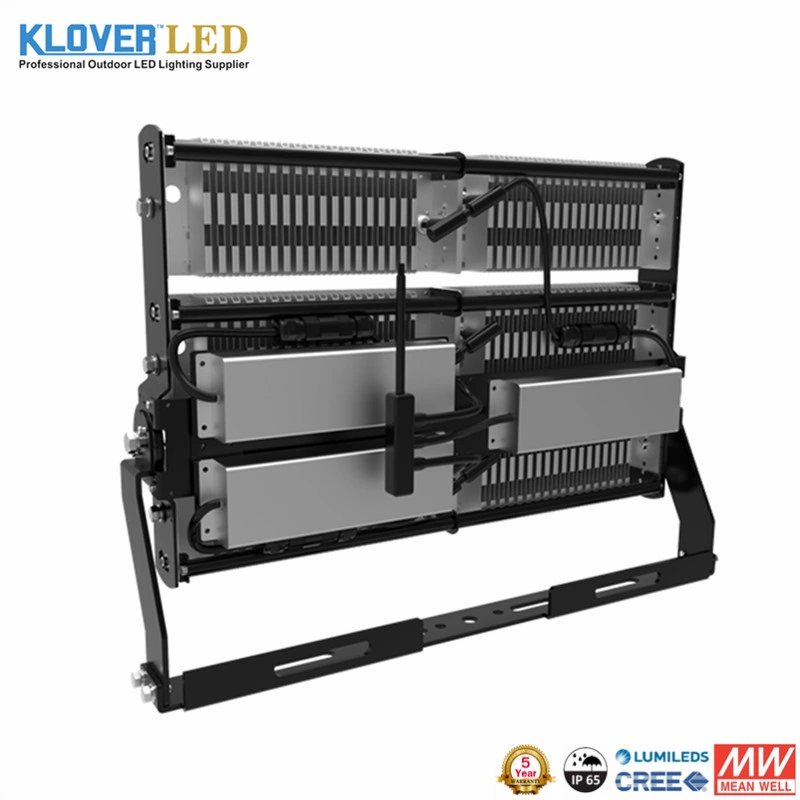

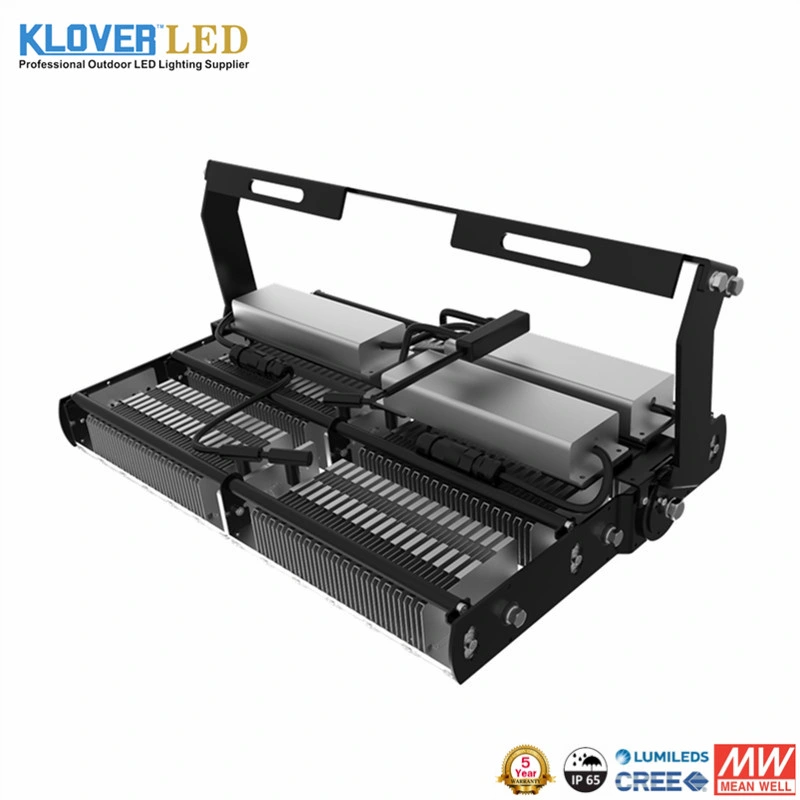

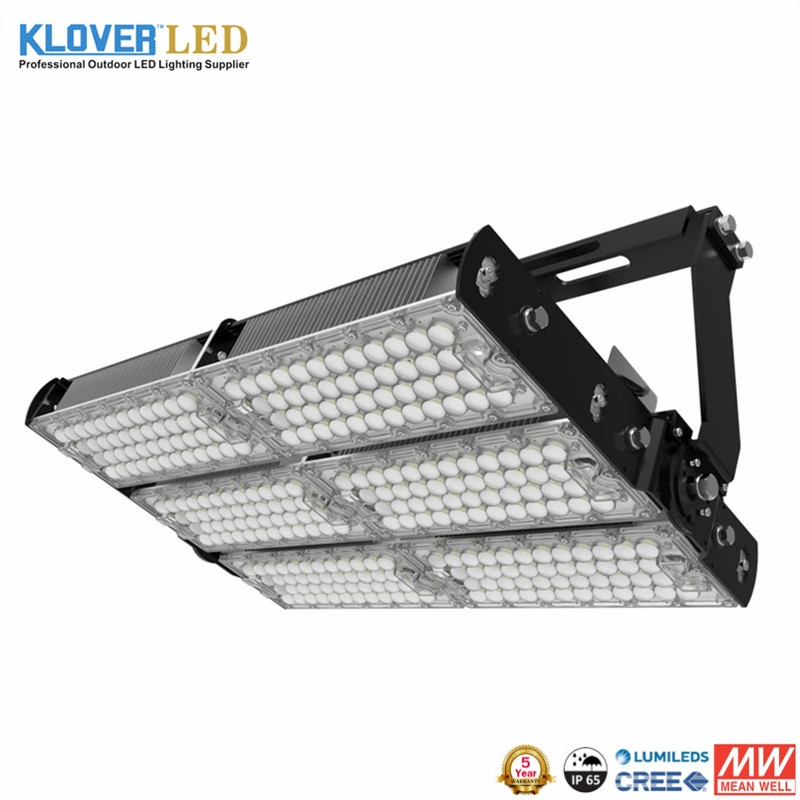

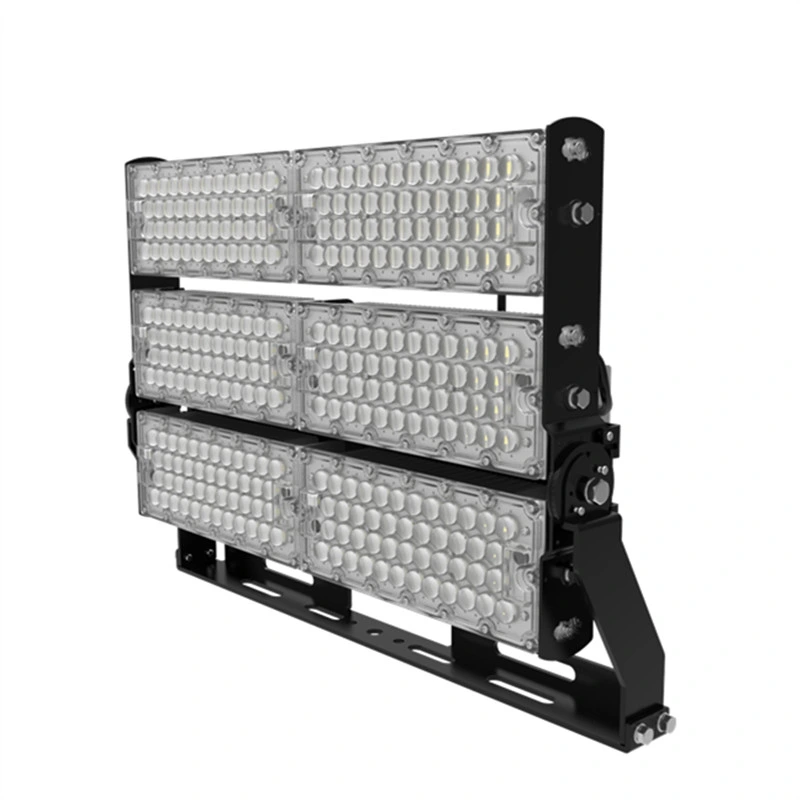

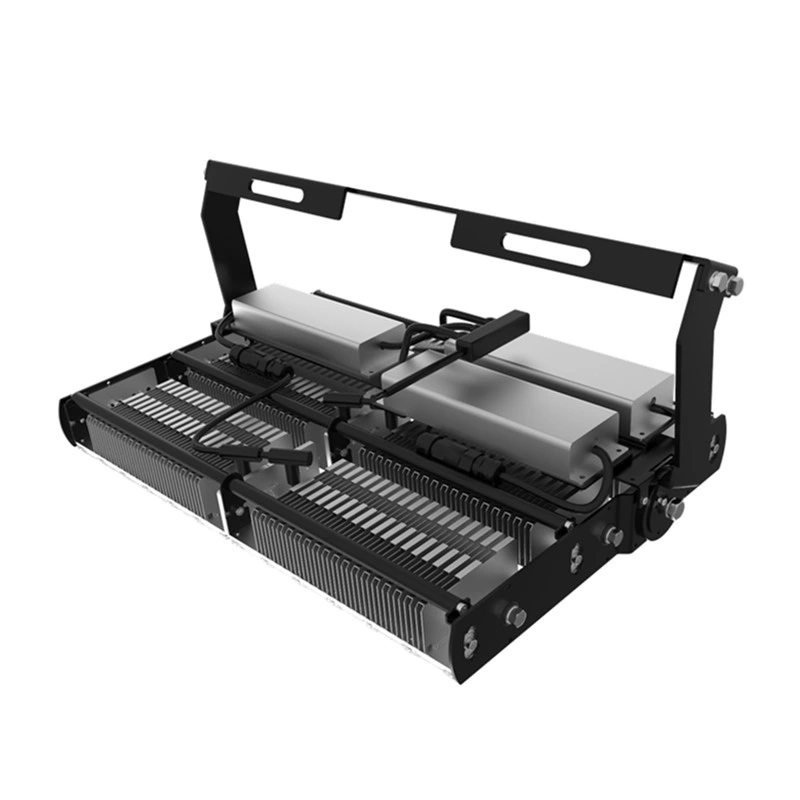

Photos for LED industrial commercial lighting 720W LED flood light for playground lighting
can be wall/surface mounted and lamp arm mounted
120W/module

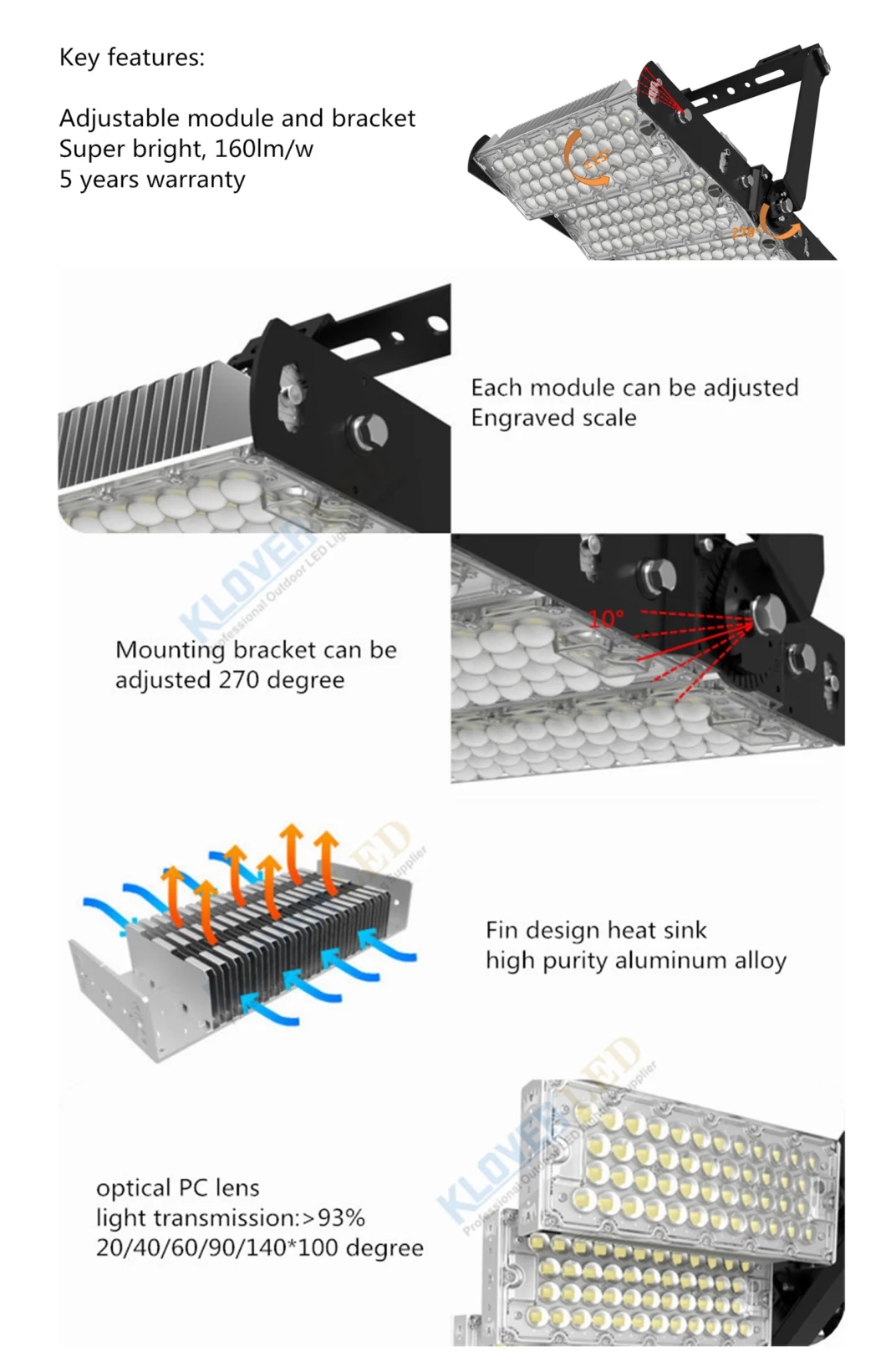

Features for LED industrial commercial lighting 720W LED flood light for playground lighting
Specification for LED industrial commercial lighting 720W LED flood light for playground lighting
120W-480W
| Product Name | 120W LED Flood light | 240W LED Flood light | 360W LED Flood light | 480W LED Flood light |
| Rated Power | 120W | 240W | 360W | 480W |
| Model Number | CL-FL013-120W | CL-FL013-240W | CL-FL013-360W | CL-FL013-480W |
| Beam Angle | 20/40/60/90/140*100 degree | |||
| LED Driver | Meanwell, Ph-ilips, MOSO, Inventronics, Sosen OR CB driver | |||
| LED Chips | CREE SMD3030/P-ilips Luxeon 3030/Osram SMD3030/Bridgelux SMD3030 | |||
| LED Quantity 1 | 184pcs 3030 | 368pcs 3030 | 552pcs 3030 | 736pcs 3030 |
| LED Quantity 2 | 46pcs 5050 | 92pcs 5050 | 138pcs 5050 | 184pcs 5050 |
| Luminaire Effciency 1 | 140-150lm/w for SMD3030 | |||
| Luminaire Effciency 2 | 150-160lm/w for SMD5050 | |||
| Input voltage | AC85-308V, 50/60HZ | |||
| Power Factor | >0.95 | |||
| THD | <10% | |||
| Lightning protection | 6KV/10KV | |||
| Light Color | Warm White/Natural White/Cool White | |||
| Color Temperature | 2700-3300K/4000-4500K/6000-6500K | |||
| CRI | Ra>75, higher CRI available | |||
| UGR | <19 | |||
| IP Rating | IP67 | |||
| Working Temp | -30ºC To 80ºC | |||
| Material | Aluminum alloy and PC lens | |||
| Product size(mm) | 309.6x116x190.6 | 356×117.6×341.9 | 356×117.6×473.9 | 356×117.6×605.9 |
| N.W(kgs) | 2.6 | 5.2 | 6.5 | 9 |
| Lifespan | >50,000 hours | |||
| Warranty | 5 Years |
|||
Other watt 720-1500W LED flood light optional
| Product Name | 720W LED Flood light | 960W LED Flood light | 1200W LED Flood light | 1500W LED Flood light |
| Rated Power | 720W | 960W | 1200W | 1500W |
| Model Number | CL-FL013-720W | CL-FL013-960W | CL-FL013-1200W | CL-FL013-1500W |
| Beam Angle | 20/40/60/90/140*100 degree | |||
| LED Driver | Meanwell, Ph-ilips, MOSO OR CB driver | |||
| LED Chips | CREE SMD3030/Ph-ilips Luxeon 2D SMD3030/Osram SMD3030/Bridgelux SMD3030 | |||
| LED Quantity 1 | 1104pcs 3030 | 1472pcs 3030 | 1840pcs 3030 | 2208pcs 3030 |
| LED Quantity 2 | 276pcs 5050 | 368pcs 5050 | 460pcs 5050 | 552pcs 5050 |
| Luminaire Effciency 1 | 140-150lm/w for SMD3030 | |||
| Luminaire Effciency 2 | 150-160lm/w for SMD5050 | |||
| Input voltage | AC85-308V, 50/60HZ | |||
| Power Factor | >0.95 | |||
| THD | <10% | |||
| Lightning protection | 6KV/10KV | |||
| Light Color | Warm White/Natural White/Cool White | |||
| Color Temperature | 2700-3300K/4000-4500K/6000-6500K | |||
| CRI | Ra>75, higher CRI available | |||
| UGR | <19 | |||
| IP Rating | IP67 | |||
| Working Temp | -30ºC To 80ºC | |||
| Material | Aluminum alloy and PC lens | |||
| Product size(mm) | 650×117.6×467.4 | 650×117.6×599.4 | 667×133.1×596.9 | 667×133.1×596.9 |
| N.W(kgs) | 12.5 | 18 | 19.2 | 23.5 |
| Lifespan | >50,000 hours | |||
| Warranty | 5 Years | |||

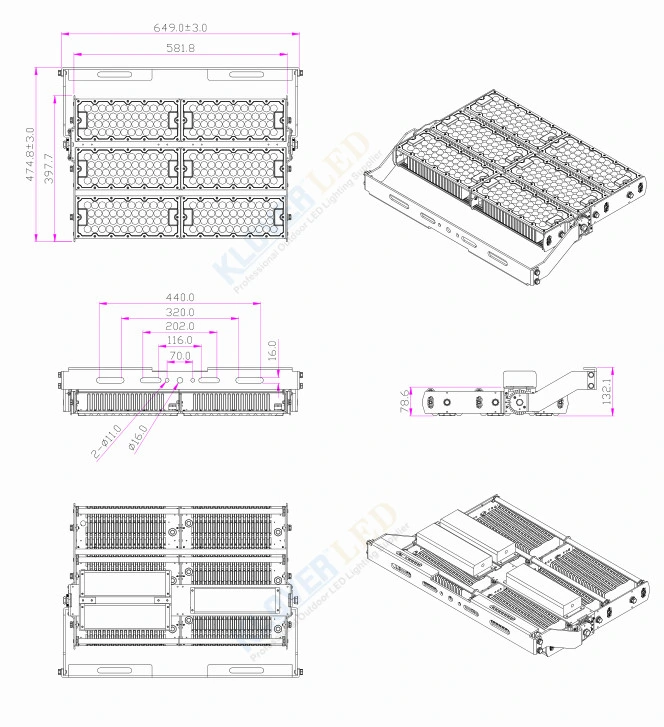

Product size for LED industrial commercial lighting 720W LED flood light for playground lighting
Testing for LED industrial commercial lighting 720W LED flood light for playground lighting
1. To use 3030 chips is 140-150lm/w

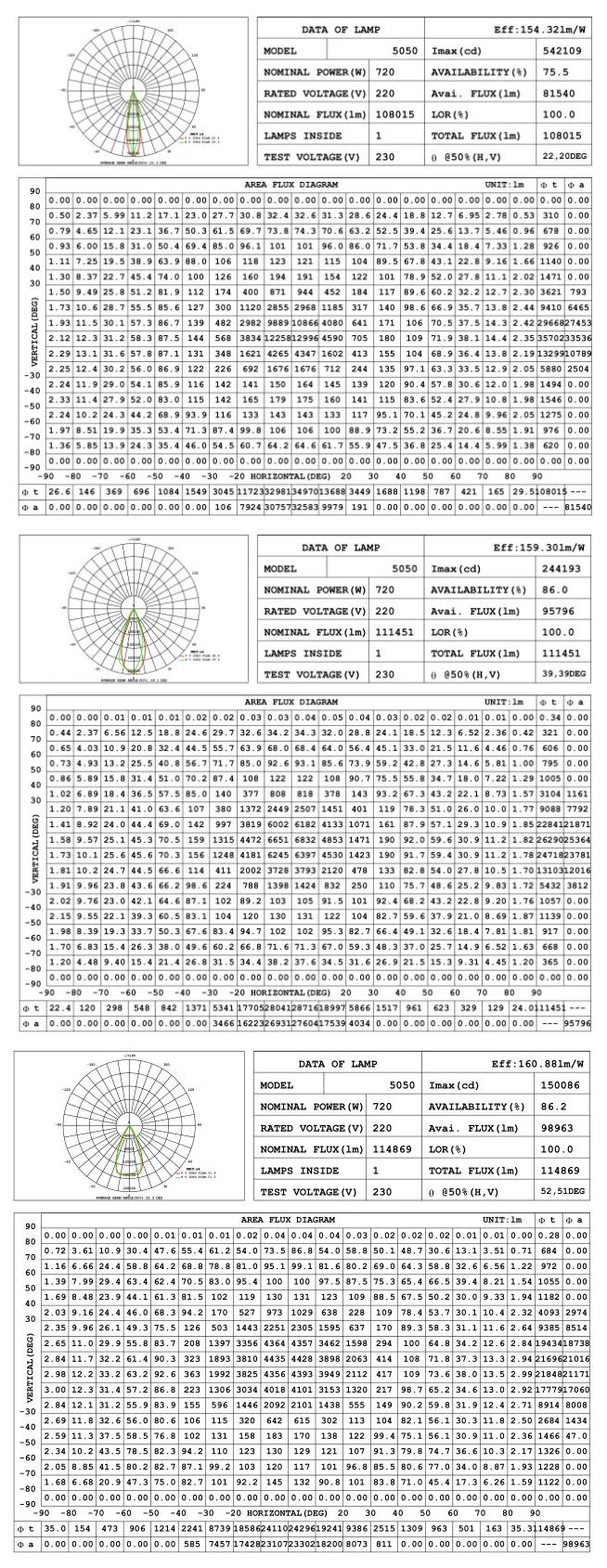

2. To use 5050 chips is 150-160lm/w, below test report is for 5050chips 20,40,60 degree. IES file available for dialux simulation.
3. 20/40/60/90/140*100 degree optional

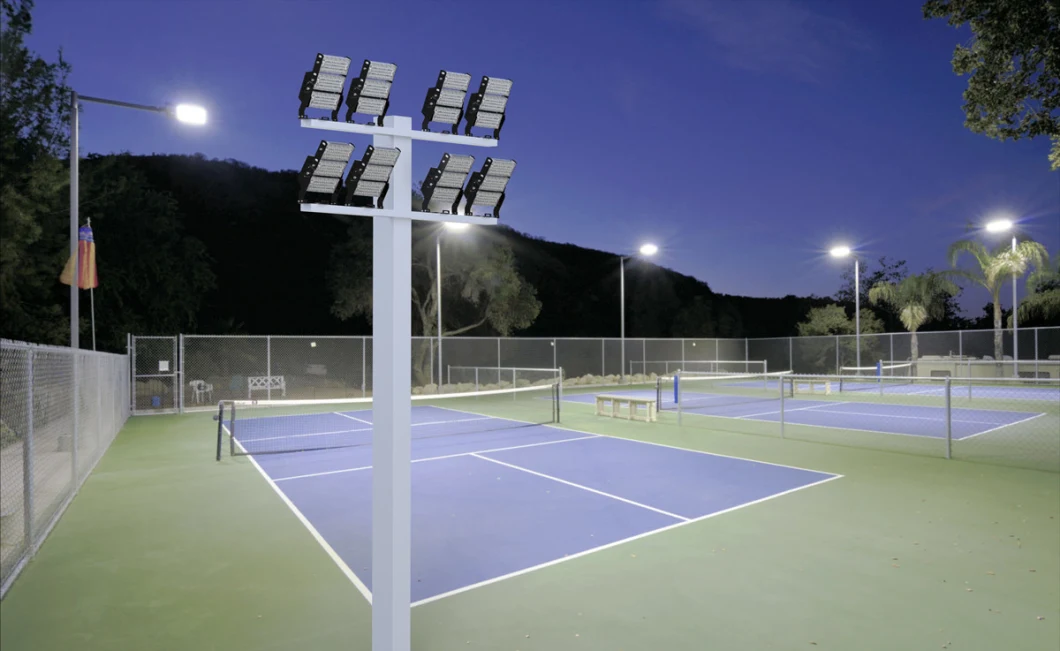

Application for FL013 series LED flood light

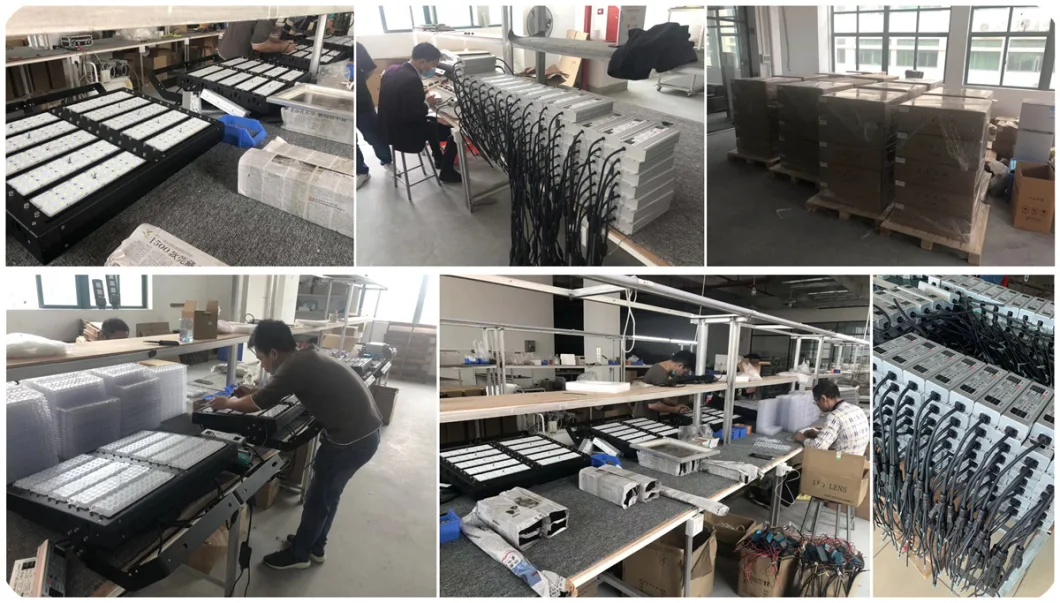

Production for the high power LED flood light

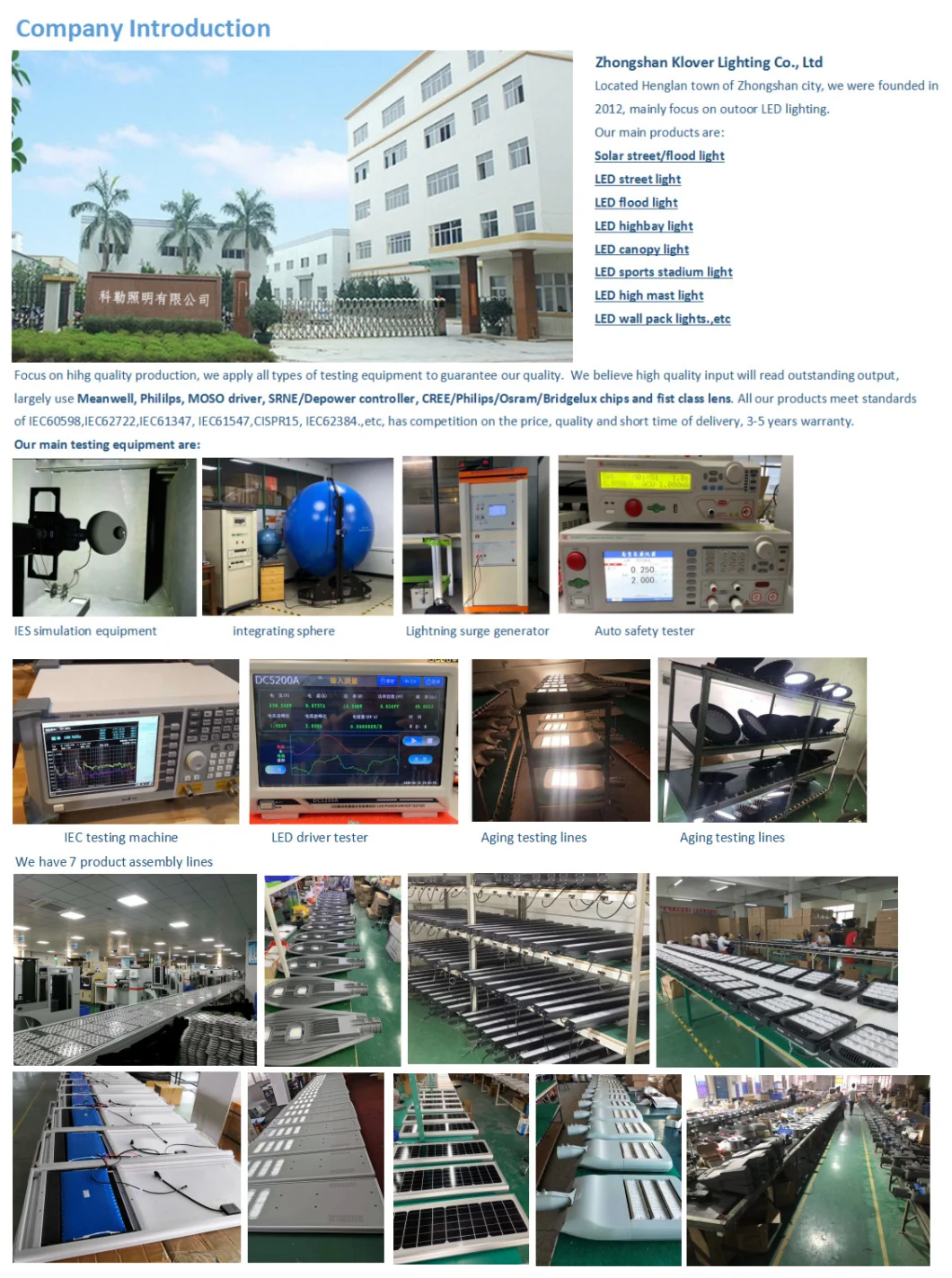

Company Profile
FAQ
Q1. Can I have a sample order for LED street light?
A: Yes, we welcome any sample orders, can mix different models to order sample.
Can test as long time as you wish, 1 year to 5 years no problem, we have full confidence on our quality.
Q2. How many years warranty of your goods? And what actions will be done if fail within the warranty time?
A: Our products are 3 to 5 years warranty since the shipping date. If any product failed, we will offer full replacement within the warranty time, or give free spare parts, according to orders.
Q3. What is your terms of payment?
A:Our regular terms is T/T 30% deposit, balance paid after production finished and before goods delivery the goods. 100% Irrevocable L/C at sight also available, we don‘t accept OA.
Q4. You are manufacturer or trading company?
A: We are manufacturer focus in outdoor LED lighting since 2012. Our main products are Solar street light, solar flood light, LED street light, LED flood light, LED highbay light, UFO highbay liGHT, LED canopy light.,etc. Welcome to visit us for any potential business cooperation, Thank you.
